- Page 1 Installation and User Instructions CIPR-15Z NG/LP Generator Mobile Gaseous Generator March 2019 Version 1.0...
- Page 2 Neither Eco Power Equipment Ltd. nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.
- Page 3 Eco Power Equipment Ltd. has made every effort to supply trademark information about company names, products, and services mentioned in this manual. Trademarks shown below were derived from various sources. All trademarks are the property of their respective owners. General Notice: Some product names used in this manual are used for identification purposes only and may be trademarks of their respective companies.
-
Page 4: Table Of Contents
Table of Contents PREFACE Description of the User Conventions Used in This Manual Explanation of Safety Warnings Retaining Instructions Obtaining Documentation and Information Description of the product Product specifications Control Panel Setup process How to use safely How to Tow the Product Maintenance... -
Page 5: Preface
1. PREFACE 1.1 Description of the User This manual is intended to support end users of the Eco Power Equipment CIPR mobile power generator. Our products are designed and intended to provide site power solutions for temporary and prime rated power on a variety of applications including construction job site, oil, and gas job sites, pipelines, events, security, and government or military operations. -
Page 6: Explanation Of Safety Warnings
1.3 Explanation of Safety Warnings Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury Warning indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury. -
Page 7: Obtaining Documentation And Information
1.5.4 Documentation Feedback If you are reading Eco Power Equipment Ltd. product documentation on the internet, any comments can be submitted on the support website. Comments can also be sent to support@ecopowerequip.com We appreciate your comments. 1.5.5... -
Page 8: Description Of The Product

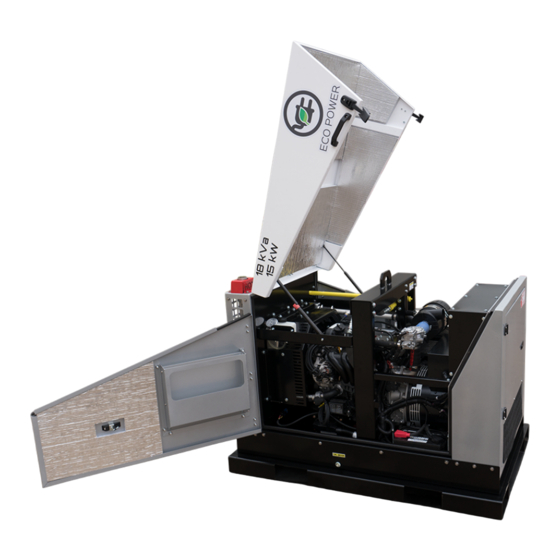

2.1 Intended Use and Reasonably Foreseeable Misuse The machine is a mobile, skid-mounted mobile generator. The Eco Power Equipment CIPR unit consists of a trailer or skid with a gaseous generator, a control panel, and a sheet metal enclosure. As the engine runs, the generator converts mechanical energy into electric power. - Page 9 Heat, noise, exhaust, and carbon monoxide from the engine Multiple heat sources: Engine, alternator end, etc Fire hazards from improper refueling techniques Electric shock and arc flash Gaseous Fuel and its fumes To protect yourself and others, make sure you thoroughly read and understand the safety information presented in this manual before operating the machine Gasoline, natural gas and LPG are combustible! gases, and can be explosive if leaked and contained in a confined area.
-
Page 10: Product Specifications
2.2 Product Specifications... - Page 11 Enclosure Unit Gross Weight 583 KG / 1283 LBS Lifting Bail Yes, Engineered and Rated, See Decal Enclosure Powder Coated Carbon Steel Doors Swing out roof and doors for full access Sound Attenuation Aluminum Lined Foam, High-Temperature Rating Control Deep Sea 4510 MKII Controller Generator End Unit Voltage...
- Page 12 2.3 Product elements...
-
Page 13: Control Panel
2.4 Understanding the user interface and control panel The main user interface is within the main control panel door. The control panel consists of a series of toggle switches and a graphical user interface to provide control of all operating system - and provide the user with operating parameters. - Page 17 Alarm Icons:...
- Page 18 Note: See Deep Sea 4510 MKII user manual for complete details on operation and troubleshooting.
-
Page 19: Setup Process
2.5 Setup Process The setup and deployment process involved for the CIPR generator involves locating the machine on a level, suitable terrain, connecting earth ground and fuel source, and connecting electrical distribution. Before using the unit, be sure to read and understand all of the instructions. This equipment was designed for specific applications;... -
Page 20: How To Tow The Product
18. Ensure battery connections are secure 19. Check the engine fan belt tension and condition. (See engine manual for tension requirements) 20. Check the engine fan belt guard. 21. Check the engine exhaust system for loose or rusted components. 22. Turn ON the DeepSea control power switch 23. - Page 21 Gaseous Engine: 10,000+ hours ● Electric Fan System: 5000+ hours ● Eco Power recommends that our customers implement an inspection process regularly on equipment to ensure ● This product is designed to run on pipeline quality natural gas, or propane gas (HD5 or better) 2.6.3...
-
Page 22: Maintenance
3 [MAINTENANCE] 3.1.1 [Planned maintenance of CIPR] Maintenance tasks shall be done according to the following plan: Task Frequency Change Oil Every 250 hours (2000 hours with EST) Change Oil Filters Every 250 hours (1000 hour with EST) Inspect Air Cleaner Every 200 hours, 100 in a dusty environment Every 400 hours, 200 hours in a dusty Change Air Cleaner... - Page 23 3.2 Fuel System Design [NG & LPL FUEL SYSTEM] The primary components of the fuel system are the fuel supply, direct electronic pressure regulator (DEPR), fuel mixer, electronic throttle control (ETC) device, 2-Stage converter, engine control module (ECM), and a catalytic converter. The system operates on slightly positive fuel pressure. Primary fuel pressure can be measured at the LD 2-Stage converter.
- Page 24 3.4 Inspection Tasks 3.4.1 Daily inspection tasks Task Action Visual inspection of the engine Visual check for leaks Check engine oil level Check coolant level Inspect generator end and power wiring Monitor oil pressure, voltage 3.4.2 Semi-Annual Inspection tasks Task Action Inspect generator bearing Remove end plate and inspect, check L dims...
- Page 26 THIS PAGE INTENTIONALLY LEFT BLANK...
