PODIUM

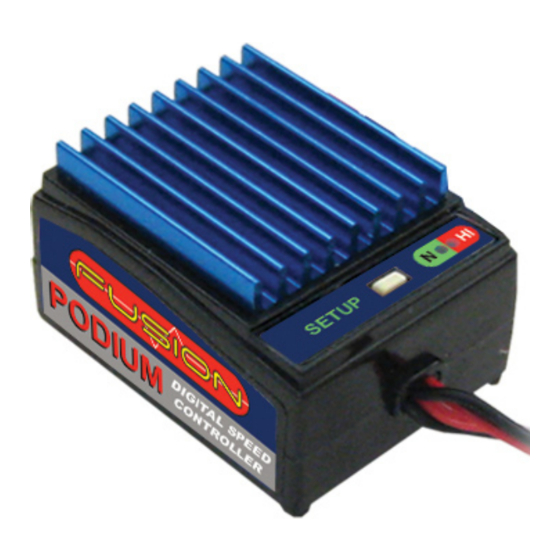

Programmable RC Car Speed Controller

12 Turn

FS-POD12T

• Fully programmable

• Excellent high output ESC

• Ultra high frequency & performance

• Forward & reverse w/ A.B.S (Anti-lock Brake System)

• Easy-to-use single button setup

• Speed up function

• Reverse delay function.

• High-temperature safety cut-off system prevents overheating damage

• Battery type for NiCd, NiMH & LiPo can be separately set.

• Safety protection from over discharge.

• No need to set the transmitter's throttle switch.

• MOSFET transistor operation for maximum power output & the greatest efficiency.

• Factory installed radio, battery, and motor connectors.

opErATing insTrucTions

Please keep for future reference

Thank you for purchasing this PODIUM ESC 12T. We are sure you will be pleased

with its performance and features. In order to ensure that you obtain the

maximum bene t from its operation, please read these instructions carefully.

Table of Contents

Do you have a question about the FS-POD12T and is the answer not in the manual?

Page 1 PODIUM Programmable RC Car Speed Controller 12 Turn FS-POD12T SpECIAL FEATUrES • Fully programmable • Excellent high output ESC • Ultra high frequency & performance • Forward & reverse w/ A.B.S (Anti-lock Brake System) • Easy-to-use single button setup • Speed up function •...
Page 2 SpEciFicAtions Input power NiCd & NiMH 6-7cells (7.2-8.4V) Input power LiPo 2 cells Operating frequency 1.0 kHz B.E.C. Constant current 5.0V B.E.C Output Voltage 1.0A On-Resistance 0.0035 ohms Cutoff voltage NiCd / NiMH (4.0V) & LiPo (5.5V) Motor Turns Limit 12 turns Acceleration time delays 0.09, 0.16, 0.27 sec.
Page 3 InSTALL On / OFF SWITCh • Choose a convenient place to mount the switch using a piece of double-side tape. InSTALL rECEIVEr • In order to prevent radio interference, please mount the receiver as far from the motor, power wires, batteries, and servo as possible. •...
Page 4 SpEED Up FUnCTIOn • This function is designed to adjust the rising time during initial starting to suit various track conditions. • With the transmitter throttle in the neutral position, press and hold the speed controller’s set up button for three seconds. The green LED will blink, then the red LED will blink. After that, release the set up button.
