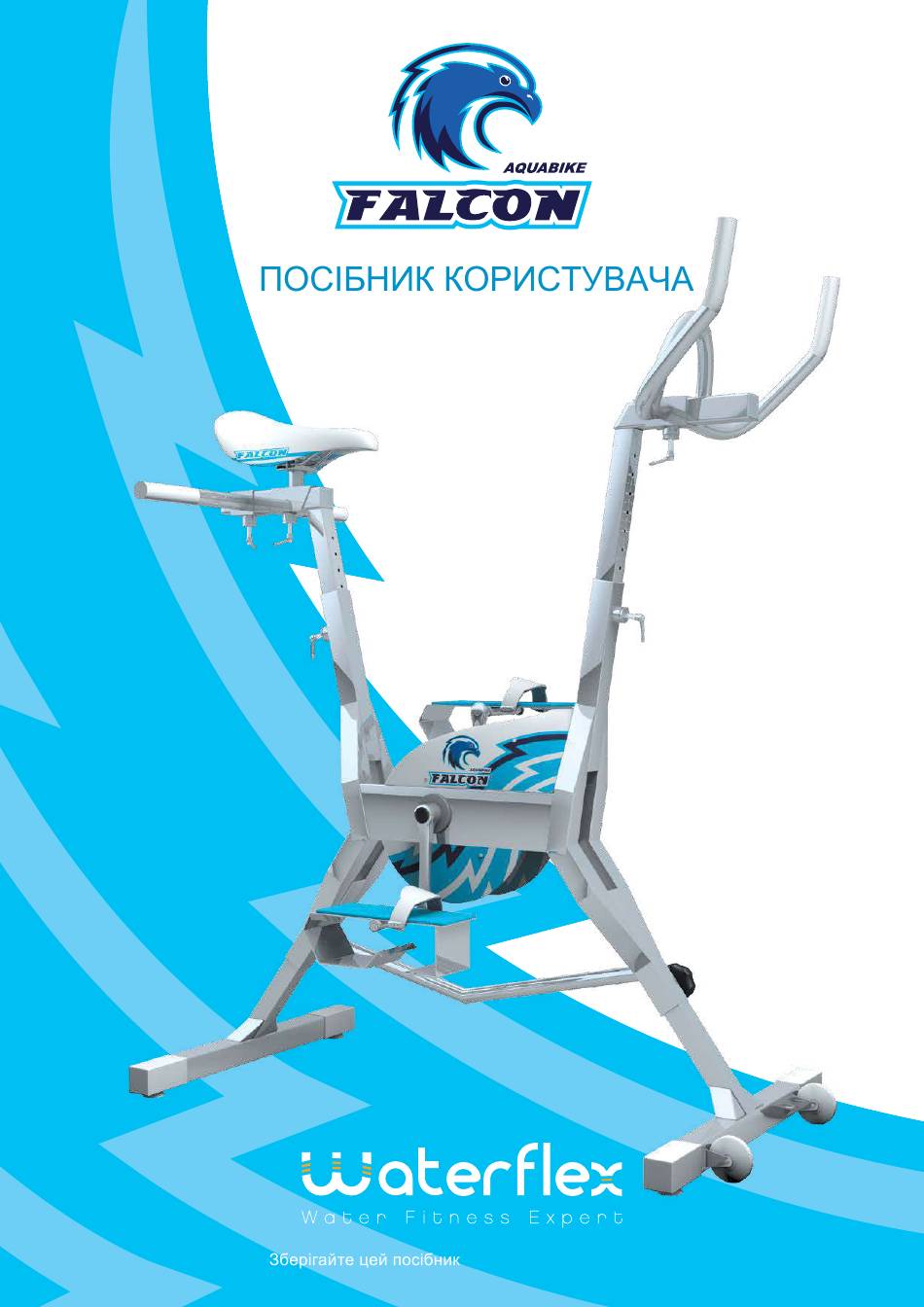

- Page 1 USER’S MANUAL / Keep this user’s manual...
-
Page 3: Safety Precautions
Safety Precautions For your safety, please read these instructions before use ! Assembly this product properly using original parts according to the installation instruction. Before assembly, inspect whether packages are in good condition and whether spare parts are complete in accordance with transport precautions and the list of spare parts. -
Page 4: Exploded View
Exploded view... -
Page 5: Part List
Part List N° Description/ Quantity Main frame Front tube Behind tube Handlebar tube Seat spile Handlebar Seat Left pedal Right pedal Left crank Right crank Left crank locknut Right crank locknut Height adjustment knob Handle «Click & Turn» «Click & Turn» Bolt M8×40mm M8×40 Wheel... -
Page 6: Installation
Installation Step 1 : (17) (16), (18) (19). Install 17 to the front tube with 16, 18 and 19. Step 2 : (1), (14). Install the front foot tube (2) onto the main frame (1), then adjust it with knob (14). Step 3 : (1), (14). - Page 7 Installation Step 4 : (1), “Click-and-turn” (15). Install handlebar tube (4) onto the main frame (1), then adjust his position with the «Click-and-turn» handle. Step 5 : (1), “Click-and-turn”. Install seat tube (5) onto the main frame (1), then adjust his position with the «Click-and-turn»...
- Page 8 Installation Step 7 : (5), “Click-and-turn” (15). Install the saddle (7) onto its support (5) then fix it with the «Click-and-turn» handle (15). Step 8 : (8/9) (10/11) (12/13). Lock the pedals (8/9) on the cranks (10/11) with the lock- nuts (12/13).
- Page 9 Maintenance advices AISI 316L, 2001/95/EC pH (6,7 / 7,6). This aquabike is made of marine quality AISI 316L stainless steel conforming to standard 2001/95/EC on the general safety of products. Its anti-corrosion treatment makes it suitable for chlorinated water, seawater and thermal waters.
- Page 10 Training advices Exercises instructions The Warm Up Phase ’ ’ ’ This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below.
-
Page 11: Warranty
Warranty Water ex Waterflex. Waterflex Your Waterflex product is guaranteed against any manufacturing defect; 3 years for the metallic frame; 6 months for the wear and tear parts in accordance with the terms below. This warranty runs from the date of the invoice. Any faulty part arising from a manufacturing defect duly noted by our technical services will be replaced or repaired free of charge. - Page 12 SE Rv IC E CL IE N T 04 91 51 03 04 Distribution POOLSTAR FRANCE www.poolstar.fr ZA les Pielettes - 13740 LE ROVE - FRANCE...
