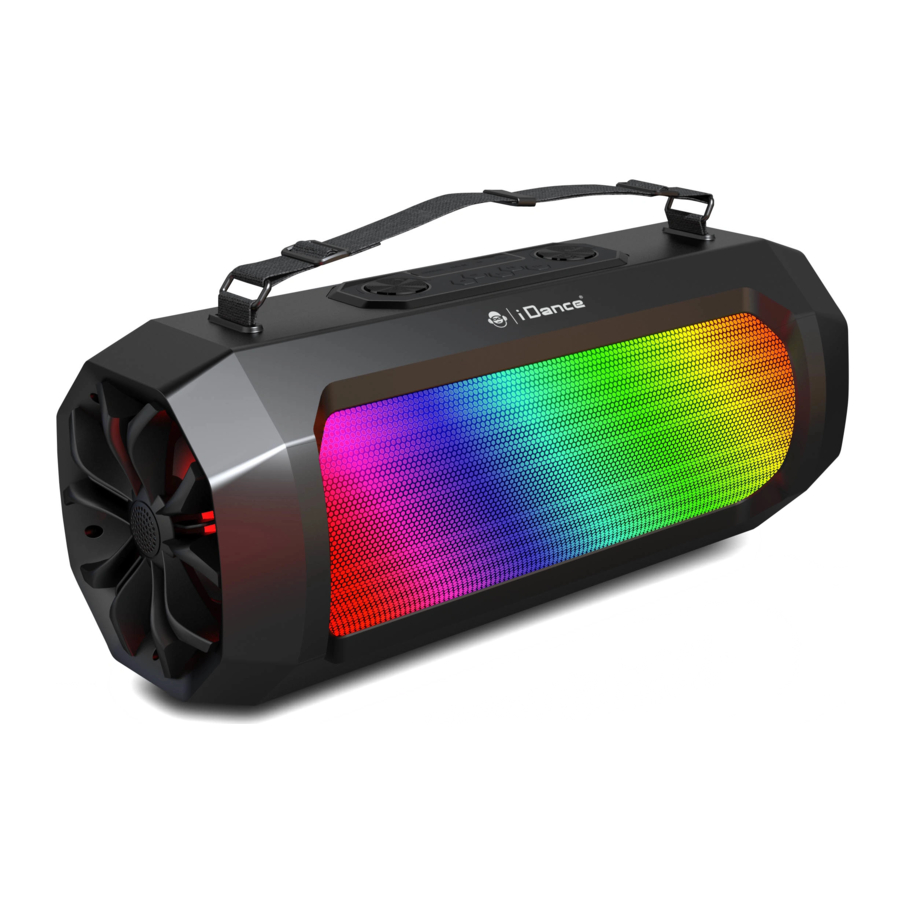

iDance Cyclone 1000 - Portable Sound and Light Bluetooth Party System Manual

Also See for Cyclone 1000:

Manual (14 pages)

Table of Contents

Contents

1 IMPORTANT SAFETY INSTRUCTIONS
2 Panel Description
3 General operations
4 Bluetooth operation
5 Specification
6 Documents / Resources
- 6.1 Download manual

iDance Cyclone 1000 - Portable Sound and Light Bluetooth Party System Manual

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.
Keep these instructions. Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety of the polarized of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacture, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.
The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
The MAINS plugs used as the disconnect device, which shall remain readily operable.

Device is compliant with EU directives:

Low voltage directive (LVD)
Electromagnetic compatibility (EMC)
Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/ EU. Please inform yourself about the local separate collection system for eletrical and eletronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Panel Description

Power on-off / Light on-off
In off mode, press to power ON.
In On mode, press to turn on/off lighting, hold for 2sec for power OFF
Input selection
Press to select different source.
Previous track
Pause/Play
Next track
Micro USB charging port
3.5mm AUX-IN input
TF(microSD) card input
USB MP3 input
Brightness controller
Turn this knob to adjust LED brightness, right for brighter and left for dimmer
Light switch button
Turn this knob to select different light modes
Volume controller

General operations

Front Panel Operation

Standby-On: Long press and hold to power on and off.
Select an input source
Press on the unit to select an input source.
When switch to Bluetooth mode, the item will come with voice prompt if connected successfully. When insert USB/TF card or connect other audio input, the product will automatically switch to a related mode. If USB/TF card is not inserted or other audio input in not connected, the product cannot be selected the related mode, in order to reduce the switching times for selecting input source.
Play/Pause
When play in USB/TF/Bluetooth mode, press to pause, and press again to resume play
Previous track/Next track
In USB/TF/Bluetooth Mode, press on the unit to skip to the previous track. Press on the unit to skip to the next track
Adjustment Lighting mode
Press and hold light switch button to select light mode
Tap the light switch button to select light color
Short press to turn off / turn on the light

Charging instructions
This unit operates on a built-in Li-ion battery that can be recharged from a power adaptor (included)

CHARGING THE BATTERY FOR FIRST TIME
Charge the built-in Li-ion battery a minimum of 3 hours prior to first use.
Connect a power adaptor (see "Power connection") into the main unit and auto to charging the internal Li-ion battery.

RECHARGING THE INTERNAL BATTERY
After prolonged use, the internal battery will become weak and the operation may become intermittent. When the internal battery charge is low, the BATTERY INDICATOR will show low level alerting you to recharge the internal battery as soon as possible.

Note:

Charging time will vary if you are listening to music while charging the internal battery. We recommend you switch off the unit power during the charging process.
To prolong the life of a rechargeable battery, it is recommended to completely discharge it before fully charging it again.
Rechargeable batteries need to be cycled for maximum performance and longer battery life. If you don't use the player that often, be sure to recharge the battery at least once a month in order to keep the internal battery working properly.

Battery Note and Care

Do not burn or bury batteries.
Do not puncture or crush.
Do not disassemble.
Do not dispose of batteries in fire, batteries may explode or leak
Li-ion batteries must be recycled. Do not dispose of in the trash.
Use only chargers rated for Li-ion cells. Be sure the charger's voltage and current settings are correct for the battery pack being charged.
Charge batteries on a fireproof surface and away from flammable items or liquids.
Batteries should NEVER be left unattended while charging. Only adults should charge the batteries. Follow the manufacturer's instructions for charging the product and do not charge longer than recommended. Unplug the charger when the battery is charged or not in use.

Bluetooth operation

Pairing a Bluetooth Device for the First Time

Power on the unit by press the Power button, and tap mode button to enter Bluetooth mode. When pairing, remain within 3 feet of the unit.
Using the native controls on your Bluetooth device, select the Cyclone 1000 in your Bluetooth settings to pair. If your device requests a password, enter the default password "0000". Refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices.
When successfully paired and connected, a sound " Connected " will issue from the unit, After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.

Playing Audio Wirelessly

After pairing to a Bluetooth device, use the native controls on the connected Bluetooth Device to select a track.
Play, pause or skip a selected track using the native controls on the connected Bluetooth Device.
Audio played through the connected Bluetooth Device will now be heard through the speakers.
Adjust the VOLUME control to obtain the desired volume level.
Press Power button again to turn off the unit.
