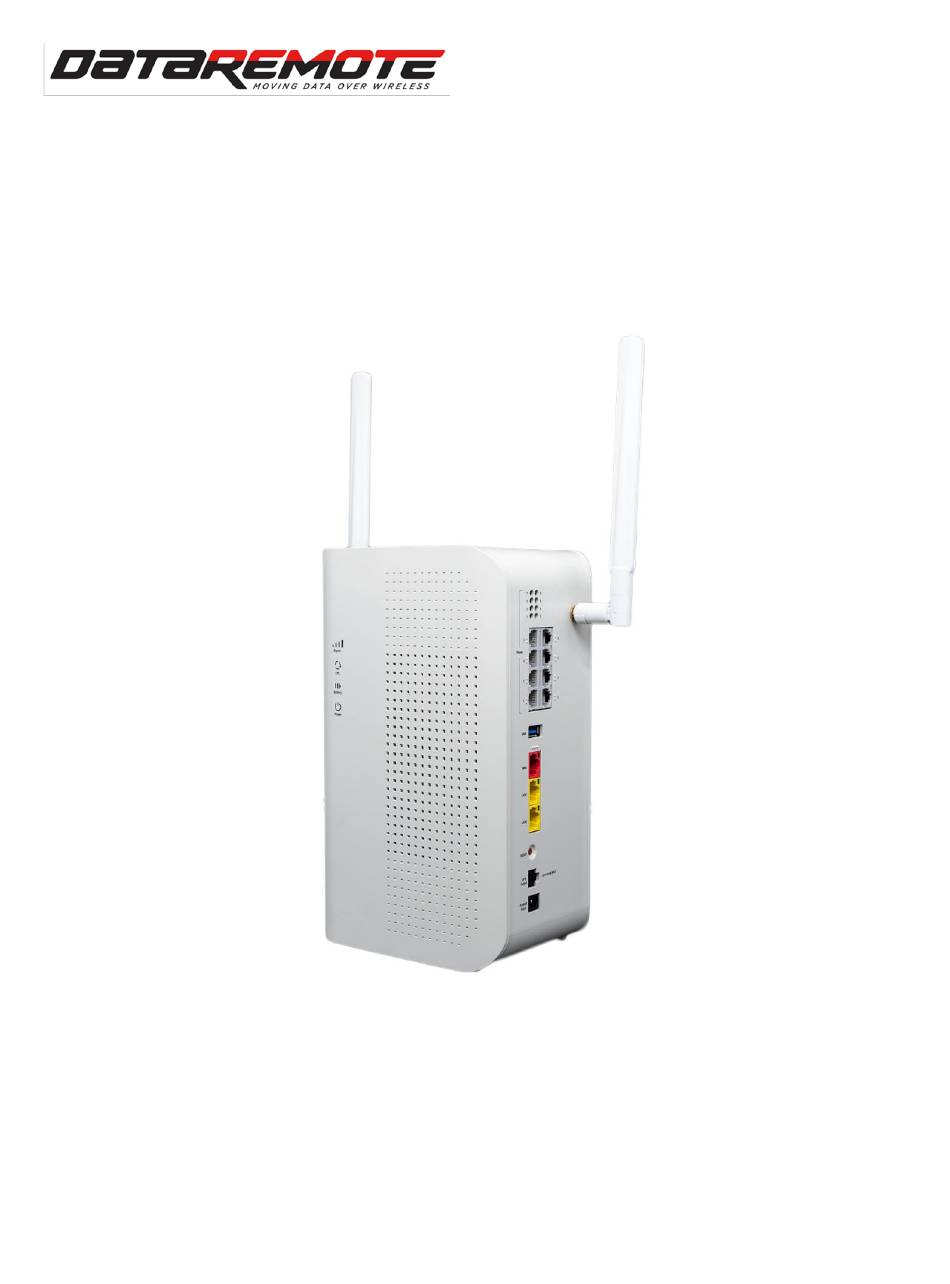

- Page 1 DataRemote VAB-1 User Manual...
-
Page 2: Version History
Fixed typo in section, Before Setting Up Clarified wall outlet for plug to be USA style Removed DR logo from face of device Changed “power cable” to “power supply” Version 1.1 3/28/2022 Initial Draft Copyright ©2022 - All rights reserved by DataRemote Incorporated. -
Page 3: Table Of Contents
Product Overview ........................4 Statements & Disclosures ...................... 5 Before Setting Up ........................9 Select which phone(s) you will use with VAB-1 ................9 Select a location for your VAB-1 device ...................9 Device Installation on a Tabletop ....................9 Device Installation with Wall Mounting ..................10 Setting Up the VAB-1 ...................... -
Page 4: Product Overview

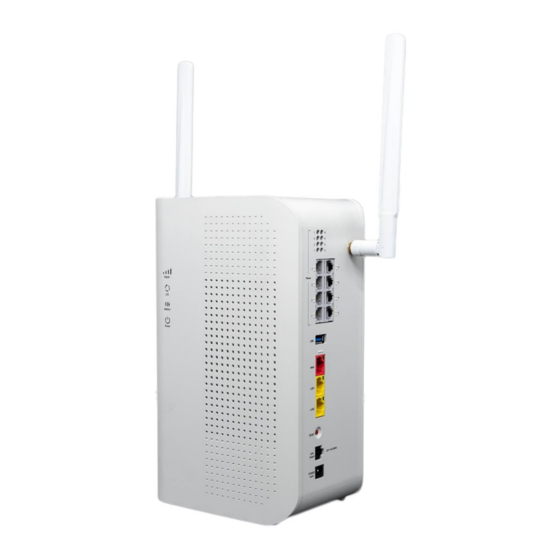

Product Overview The Voice and Backup “VAB-1” Cellular/PSTN/MFVN capable communications and Internet backup solution enables multiple combinations of internet failover, battery backup, legacy analog wireline in-band Voice, Machine to Machine (M2M) Data, DTMF signaling tones, analog data modem tones, FAX and Alarm system signals (all previously connected to the Public Switched Telephone Network [PSTN]), to be carried over flexible combinations of WAN/LAN/LTE Cellular Data Networks. -
Page 5: Statements & Disclosures
FCC Regulations DataRemote Incorporated, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. - Page 6 State of California to cause cancer, and including Bisphenol A and 1,3-Butadiene, which are known to the State of California to cause birth defects and/or other reproductive harm. For more information please visit www.P65Warnings.ca.gov Copyright ©2022 - All rights reserved by DataRemote Incorporated.
- Page 7 911 calling, Customer must register the new E911 CLID number and its associated address with DataRemote, in order to enable 911 capabilities for the updated number. Failure to do so may result in 911 services not being available to Customer when using an unregistered phone number Copyright ©2022 - All rights reserved by DataRemote Incorporated.
- Page 8 No E911 address accuracies guarantees are made during a Proof of Concept or demonstration of the product and you agree to hold harmless DataRemote for any claims made as to the provision of the E911 services. DATAREMOTE SPECIFICALLY DISCLAIMERS ALL LIABILITY RELATED TO THE E911 SERVICE.
-
Page 9: Before Setting Up
Device Installation on a Tabletop The VAB-1 is designed to stand alone on a horizontal surface, i.e. desktop, tabletop, or shelf. Make sure the bottom of the device (the side with the circular battery cover) is facing down on the table top. -
Page 10: Device Installation With Wall Mounting
3) Mount the VAB-1 on the screws. Ensure that the screws are left out just enough to provide clearance for the screw to slide up into the top notch of the VAB-1 mounting holes. -
Page 11: Setting Up The Vab-1
Setting Up the VAB-1 The following diagram provides detail about the ports that you will be using on the back of the VAB-1 device as part of the installation process. Phone ports for analog communication equipment WAN Port for upstream router devices... -
Page 12: Step 1 - Unpack The Package
Step 3 – Connect broadband ethernet If you have broadband Internet service, attach an ethernet cable from the red WAN port on the back of the VAB-1 device to one of the LAN ports (usually yellow) on your broadband modem/router. This will help ensure you will have the best service possible. -
Page 13: Step 6 - Connect Phone Equipment
Step 6 – Connect phone equipment Connect a phone cable between your phone and the associated phone port on the back of the VAB-1 device. Repeat this step for any alarm, FAX, and/or modem lines that have been set up for your service. -
Page 14: Led Behavior
Green Slow Flash Ringing or ongoing call Green Fast Flash Registration failed. Contact Support No active line Green Solid Link detected, no activity WAN/LAN WAN/LAN Green Flashing Link active Jacks No link detected Copyright ©2022 - All rights reserved by DataRemote Incorporated. -
Page 15: Power Outages
Power Outages VAB-1 has a built-in battery with standby time of up to 24 hours, depending on environmental factors and usage. Be aware: During a power outage you’ll need a standard corded phone that doesn’t require external power to function to make all calls, including 911.
