DataRemote CDS-9010 User Manual

Lte voip dual band wi-fi router
Hide thumbs Also See for CDS-9010:

Advertisement

Table of Contents

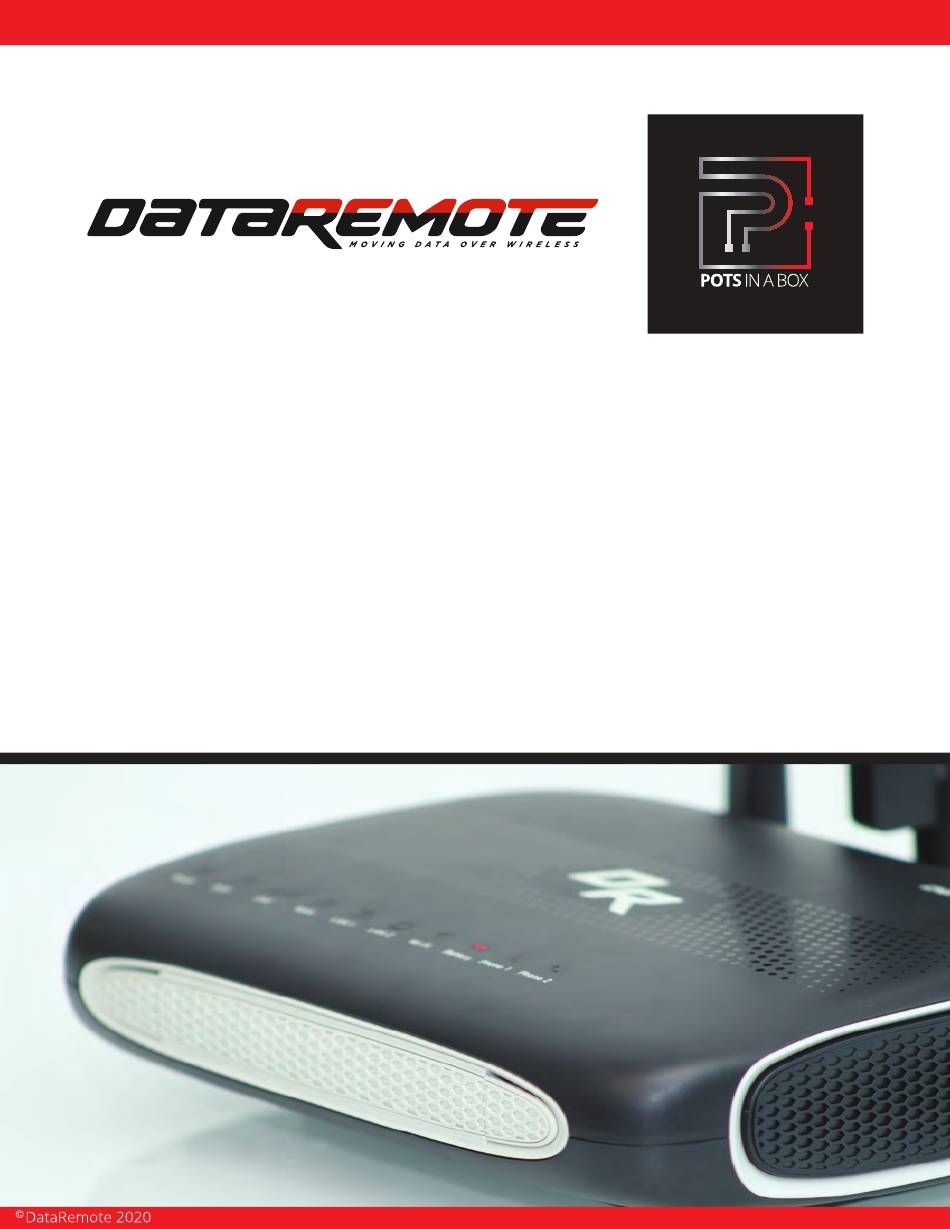

CDS-9010
LTE VoIP
Dual Band Wi-Fi Router
USER MANUAL
WHAT
CAN YOUR
NEW DEVICE DO?
Virtually every application
that requires a copper hard-line
can now be replaced with one device!
Revision No. 004 April 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDS-9010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DataRemote CDS-9010

Summary of Contents for DataRemote CDS-9010

  • Page 1 CDS-9010 LTE VoIP Dual Band Wi-Fi Router USER MANUAL WHAT CAN YOUR NEW DEVICE DO? Virtually every application that requires a copper hard-line can now be replaced with one device! Revision No. 004 April 2020...

  • Page 2: Hardware Installation

    Security Gate / Door Access-box Modem Data The DataRemote CDS-9010 wireless router with VoIP is a stand-alone device which facilitates clear and reliable voice quality over the Internet. It is fully compatible with Session Initiation Protocol (SIP) industry standards and can integrate with many other SIP devices and software on the market.
  • Page 3 Phase 1 – DataRemote CDS-9010 device Assembly/Pre-Test + Fire Panel Location Phase 2 - Installation Tasks – Locate Existing POTS Lines Phase 3 - Cut-over Fire Panel Lines to New DataRemote CDS-9010 device Phase 4 - Testing Fire Alarm Communication over DataRemote CDS-9010 device...

  • Page 4: What Comes In The Box

    WHAT COMES IN THE BOX DATAREMOTE CDS-9010 LTE ANTENNAS (SMA-M CONNECTORS) X2 CELLULAR APPLIANCE X1 INTERNAL BATTERY X1 INTERNAL CASE FOR EXTRA BATTERY X1 100-240V-50/60HZ, RJ-45 ETHERNET RJ11 PHONE SET OF MOUNTING POWER ADAPTER X1 CABLE X1 CABLES X2 HARDWARE X1 Page 4 Revision No.
  • Page 5 WHAT DO YOU NEED TO KNOW BEFORE INSTALLING YOUR DEVICE Before you can connect your DataRemote CDS-9010 device to the Internet and use it, you must have access to high-speed Internet. A high-speed Internet connection can be accessed through DSL, LTE wireless network, cable modem, Wi-Fi access point, and/or a leased line.

  • Page 6: Led Lights

    LED LIGHTS INDICATORS (continued) STATUS EXPLANATION CELL DCD Solid (GREEN) LTE WAN IP is assigned. Disconnected WAN ETH Solid (GREEN) WAN ETH IP is assigned. Disconnected LAN 1 Solid (GREEN) Cable connected to the LAN port LAN 2 Solid (GREEN) Cable connected to the LAN port Solid (GREEN) Wi-Fi...

  • Page 7: Basic Installation

    WHAT IS ON THE BACK OF YOUR DEVICE WiFi Antennas Cellular Antennas Connectors Reset Button Power Cord Connector Outlet Two (2) FXS phone Two (2) line outlets (Connecting Wide Area Network Connector Outlet locally) Ethernet Outlets REAR PANEL INTERFACE DESCRIPTION AC Power cord connector outlet Connector for a power adapter.
  • Page 8 1”. Make sure is inserted all the way into the slot. You will feel a spring lock the SIM card into place. Insert the batteries in to the battery ports on the sides of your CDS-9010 device, making sure they will click in place correctly. Then connect one end of the power cord to the power port of your device.
  • Page 9 Connect to one of the two LAN ports on your device with an Ethernet cable (RJ-45) to your equipment or computer that needs to receive an Internet connection from the CDS-9010. Your device allows you to connect up to two (2) devices for Internet access.
  • Page 10 Do not connect an active RJ-11 with voltage directly from the wall into the DataRemote device’s RJ-11 ports, this will damage the device permanently. Each DataRemote device’s RJ-11 FXS port is an active port supplying voltage. The FXS port is only to be connected to an FXO analog phone or another FXO device.
  • Page 11 STEP 5 Connect the LTE antennas to their respective ports, making sure the antennas don't touch each other. Please be aware of the following warning. WARNING! Make sure the antennas do not touch each other, this will cause the connection to be degraded. Page 11 Revision No.

  • Page 12: Installation

    Unpack, assemble then test DataRemote CDS-9010 device in "Standalone" Mode with power cable connected. Mount DataRemote CDS-9010 device and test FXS 1-2 (if applicable) phone jacks by calling in/out using a telephone test set or simple line telephone and cell phone prior connecting any device/appliance.
  • Page 13 If Fire Alarm Panel, test that Fire Alarm Panels primary & secondary lines accordingly, calling out through the DataRemote CDS-9010 device. If RJ-31 style jack is used, verify that tip/ring connections are on pins 4 & 5 of jack.
  • Page 14 DataRemote CDS-9010 device. a. Please report any store access issue to your Project Manager immediately. 3. If the DataRemote CDS-9010 device was shipped to the site in advance of your dispatch; please obtain this package from the Manager.
  • Page 15 PHASE 1 CDS-9010 DEVICE ASSEMBLY/PRE-TEST + FIRE PANEL LOCATION ASSEMBLE THE DATAREMOTE CDS-9010 DEVICE TO PRE-TEST: 1. Remove the CDS-9010 device and affix the antenna accordingly: a. LTE antennas – male center pin Page 15 Revision No. 004 April 2020...
  • Page 16 1. Phone 1-2 indicators should be either solid green (On-Hook) or flashing green (Off-Hook/Busy). Call DataRemote Installation Support if LED indicators for the FXS are not lit. Once the lights above have been verified, use a butt set (or an analog test phone if your model butt set doesn't have an RJ-11 modular connection) to place a test call from the phone 1 jack to your cell phone if line one is a voice line.
  • Page 17 DataRemote Installation Support to report the issue and work to resolve before proceeding. Record the calling phone number in the Checklist for this site as Phone 1's (primary) new CDS-9010 number. Repeat steps 2 - 5 accordingly by performing the steps again using the phone 2 line port of the DataRemote CDS-9010 device (if the lines are voice lines.)
  • Page 18 Once those POTS line terminations are found in the telco closet/demarc/SNI, their cable-runs to the Fire Panel need to be isolated from their Telco POTS lines and redirected to the DataRemote CDS-9010 device’s phone ports using included 5' (inch) long phone cords. The method of...
  • Page 19 "P" to reflect it connects to the DataRemote CDS-9010 device's alarm line and if inadvertently removed. - Mark the DataRemote CDS-9010 device’s  alarm 2 port's phone cord with a "2" or "S" to reflect it connects to the DataRemote CDS-9010 device's alarm line 2 port and if inadvertently removed.
  • Page 20 (Contact-ID, SIA, Pulse...Etc) NOTE: DO NOT PLUG IN A BUTT SET TO THE CDS-9010 DEVICE AND MAKE A TEST CALL ON ANY OF THE ALARM LINES AS THIS WILL DEACTIVATE THE AUTO DETECT MODE.
  • Page 21 5. Call fire alarm vendor to confirm they show the error and that it has been cleared: - Have New DataRemote CDS-9010 device TN's recorded in your checklist handy to give to alarm vendor when calling, as well as store name and location number.
  • Page 22 Testing Fax Lines. Fax Mode Details: Fax Works in VOIP and Fax modes on the DataRemote CDS-9010 device. Fax in Fax Mode works in basic (9600 Baud), Normal (14400 Baud) with ECM (Error Correction Mode) ON & OFF depending on the customers Fax machine.

  • Page 23: Post-Installation Tasks

    TELEPHONE NUMBER Dispatch Check-In Install Team Check-in Dispatch Check-Out/Verification Install Team Verification Technical Support & Scope Issues DataRemote Tier 3 Support 800-848-1617 option 2 PM & Customer Relations Issues Client Project Manager Local Site Contact (LCON) 55 Seconds Refer to work order...
  • Page 24 16. View of Fire Panel's controller display before cut-over to the DataRemote CDS-9010 device’s ports. 17. Photo of all cable management. 18. Wide views of entire wall & the DataRemote CDS-9010 device closeup to show completed installation job. 19. Picture/scan of both pages of tech Checklist.

  • Page 25: Fcc Radiation Exposure Statement

    Statements and Disclaimers FCC Radiation Exposure Statement DataRemote Incorporated, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 26 911 calling, Customer must register the new E911 CLID number and its associated address with DataRemote, in order to enable 911 capabilities for the updated number. Failure to do so may result in 911 services not being available to Customer when using an unregistered phone number If you use a Private Branch Exchange (PBX) telephone system, the 9-1-1 dispatcher may see only your corporate or billing address, not the location information of the emergency.
  • Page 27 Manufacturer Model Name/Number DataRemote (Current Device for this Manual) DataRemote DataRemote Certified Devices CALIFORNIA ENERGY COMMISION Model Appliance Type Manufacturing Company Brand Regulatory Status Date DataRemote Federally-Regulated DataRemote, Inc. 11/12/2019 Incorporated Consumer Product Page 27 Revision No. 004 April 2020...
  • Page 28 C E R T I F I C A T E O F C O M P L I A N C E 20190725-MH63085 Certificate Number MH63085-20190717 Report Reference 2019-JULY-25 Issue Date DATAREMOTE INC Issued to: 18001 Old Cutler Rd, Suite 600 Miami FL 33157 BATTERIES, HOUSEHOLD AND COMMERCIAL, This certificate confirms that INFORMATION TECHNOLOGY EQUIPMENT INCLUDING...
