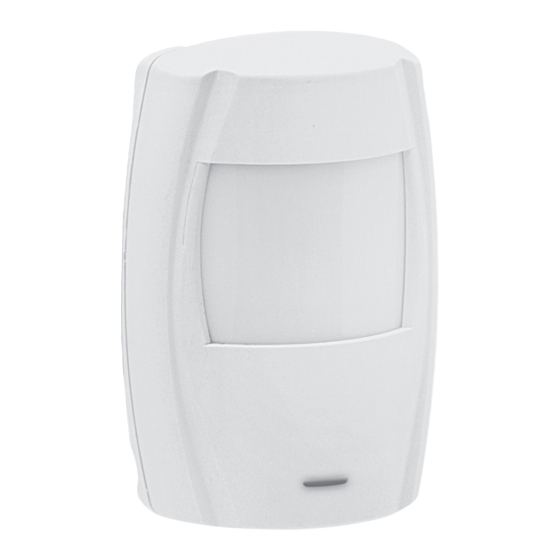

PPA SENSOR SMART PET PRO Instruction Manual

ATTENTION:

Do not use the equipment
without first reading the
instruction manual.
INSTRUCTION MANUAL
SENSOR SMART
PET PRO
P30654 - 09/2022
Rev. 1

TECHNICAL CHARACTERISTICS

Double pyroelectric element
Detection: 14m reach x 110° opening
Activation time: 2 seconds
Stabilization time: 60 seconds
RF protection: 25V/m up to 1GHz
Supply voltage: 9~18 V DC
Consumption: 5mA @ 12 V DC
Temperature compensation: -10° a 45°

SENSOR DIMENSIONS

36
NOTE: All dimensions are in millimeters.

PRECAUTIONS

68
- Do not touch the pyroelectric element of the sensor;
- Avoid possible sources of false alarms in the sensor detection area (e.g. animals, air
conditioners, etc.);
- Avoid direct white light to the sensor;
- Fix the sensor on solid walls that do not suffer vibrations;
- Do not pass the sensor cables along the electrical network wiring;
- Avoid obstacles in the sensor detection area.
- Do not install the sensor in open areas.

PET FUNCTION

Immune to creeping animals up to 20kg (~44lb).
NOTE: For the PET function to work correctly, the installation of articulators is not re-
commended.
68
68
36

MAIN COMPONENTS OF THE BOARD

The following figure illustrate the sensor board with their components:
NOTE: Before changing
the resistor status, turn off
the sensor power.
NO RESISTOR: Normally
open alarm output (NO) when
detection occurs the output
closes.
WITH RESISTOR: Normally
closed alarm output (NC)
when detection occurs the
output opens.
WITH RESISTOR: LED on
WITHOUT RESISTOR: LED off
Alarm output
Input power;
9~18 VDC
Signaling LED
ATTENTION!
The recommended height for mounting the sensor is 2.1 to 2.4 m.
The figure below show the sensor detection range viewed from above and from the side.
The maximum coverage angle is 110° and the reach is 14 m when
installed at 2.4 m high and 90° from the ground.

GENERAL TERMS AND CONDITIONS OF WARRANTY

MOTOPPAR, Industry and Commerce of Automatic Gate Operators Ltd., registered with the CNPJ (National
Registry of Legal Entities) under Number 52.605.821/0001-55, located at 3526 Dr. Labieno da Costa Machado
Avenue, Industrial District, Garça – SP – Brazil, Zip Code 17400-000, manufacturer of PPA Products, hereby
guarantees this product against design, manufacturing or assembly defects and/or supportively as a result
of material quality flaws that could make its intended use improper or inadequate, within a legal period of
ninety days from time of acquisition, provided that the installation instructions described in the instruction
manual are observed.
Due to the credibility and trust placed on PPA products, we will add 275 more days to the period mentioned
above, reaching a warranty period of one year, likewise counted from the time of acquisition proven by
consumer through proof of purchase (Customer Receipt).
In case of defect, within the warranty period, PPA responsibilities are restricted to the repair or substitution of
the product manufactured by the company, under the following conditions:
1. Repair and readjustment of equipment may only be carried out by PPA Technical Assistance, which is
qualified to open, remove, and substitute parts or components, as well as repair defects covered by this
warranty; thus, failure on observing this guideline and the verified use of any non-original parts will cause
36
the resignation of this warranty on the part of the user;
2. The warranty will not extend to accessories such as cables, screw kit, fixing brackets, power supplies etc.;
3. Expenses for packaging, transportation and product reinstallation will be sole responsibility of the
consumer;
4. The equipment must be sent directly to the Company responsible for the sale (manufacturer's
representative), through the address contained in the purchase invoice, properly packed, thus avoiding
loss of the warranty;
5. Within the additional period of 275 days, visits and transportation in places where authorized technical
assistance is not available will be charged. The cost of transportation of the product and/or technician will
be sole responsibility of the consumer and
6. The substitution or repair of the product does not prolong the warranty time.
This warranty will be terminated if the product:
1. Is damaged by natural agents, such as atmospheric discharges, floods, wildfires, landslides etc.;
2. Is installed in an improper electric power supply or if it is not according to any of the installation instructions
displayed on the manual;
3. Shows defects caused by droppings, collisions or any other physical accident;
4. Shows signs of product violation or attempted repair by unauthorized personnel;
5. Is not used for its intended purpose;
6. Is not used under normal conditions;
7. Is damaged by accessories or equipment connected to it.
Recommendation:
We recommend that both the installation and the maintenance of the operator to be performed by an
authorized PPA technical service. If the product fails or has an improper operation, seek an Authorized
Technical Service to fix it.
Made by: Motoppar da Amazônia Indústria e Comercio de Eletrônicos LTDA
Praça Linear, 100, Bloco 2 - Centro - Santa Rita do Sapucaí - MG - CEP 37540-000 - Brasil
ATTENTION!
-Avoid touching the sensor window.
-For cleaning use only ethyl alcohol with a cotton swab
when necessary.
-Do not touch the sensor without ESD protections,
in order to avoid electrostatic discharges.
Sensor piroelétrico
