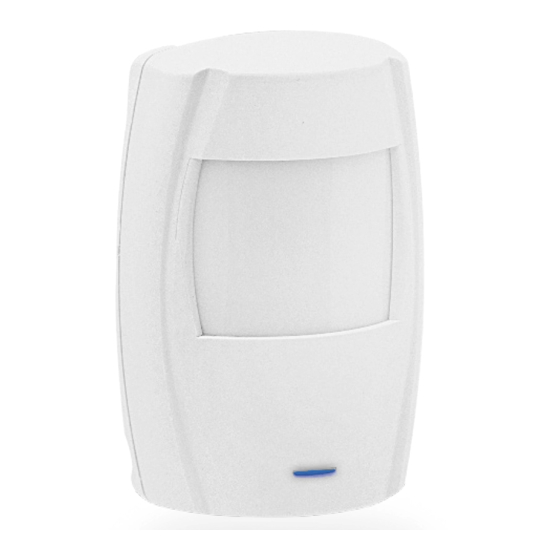

PPA SMART PET PRO Instruction Manual

ATTENTION:
Do not use the equipment
without first reading the
instruction manual.
INSTRUCTION MANUAL
SENSORS
SMART PET PRO, SMART DIGITAL,
SMART PET, SMART SOLID AND
SMART SOLID PET SMART SOLID PET SMART SOLID PET
Made by: Motoppar da Amazônia Indústria e Comercio de Eletrônicos LTDA
Praça Linear, 100, Bloco 2 - Centro - Santa Rita do Sapucaí - MG - CEP 37540-000 - Brasil
CNPJ: 09.084.119/0002-45
www.ppa.com.br | +55 14 3407 1000
P30654 - 04/2022
Rev. 0
TECHNICAL CHARACTERISTICS
SMART PET PRO SMART DIGITAL
Double
pyroelectric Yes Yes
element
14m reach x 14m reach x
Detection
110° opening 110° opening
Activation time 2 seconds 2 seconds
Stabilization
60 seconds 60 seconds
time
25V/m up to 25V/m up to
RF protection
1GHz 1GHz
Supply voltage 9~18 V DC 10 ~ 15 V DC
Consumption 5mA @ 12 V DC 20 mA (12 V)
Temperature
-10° a 45° -10° a 45°
compensation
SENSOR DIMENSIONS
36
PRECAUTIONS
- Do not touch the pyroelectric element of the sensor;
- Avoid possible sources of false alarms in the sensor detection area (e.g. animals, air
conditioners, etc.);
- Avoid direct white light to the sensor;
68
- Fix the sensor on solid walls that do not suffer vibrations;
- Do not pass the sensor cables along the electrical network wiring;
- Avoid obstacles in the sensor detection area.
- Do not install the sensor in open areas.
TAMPER FUNCTION (SMART DIGITAL, SMART PET)
The TAMPER Function makes it possible to send information to the alarm center in case
of violation/opening of the plastic box.
PET FUNCTION (SMART PET PRO, SMART PET, SMART SOLID PET)
Immune to creeping animals up to 20kg (~44lb).
SMART PET SMART SOLID
Yes Yes
14m reach x 12m reach x
110° opening 110° opening
2 seconds 2 seconds
60 seconds 60 seconds
25V/m up to
-
1GHz
10 ~ 15 V DC 10 ~ 18 V DC
20 mA (12 V) 15 mA (12 V)
-10° a 45° -10° a 45°
68
68
NOTE: All dimensions are in millimeters.
36

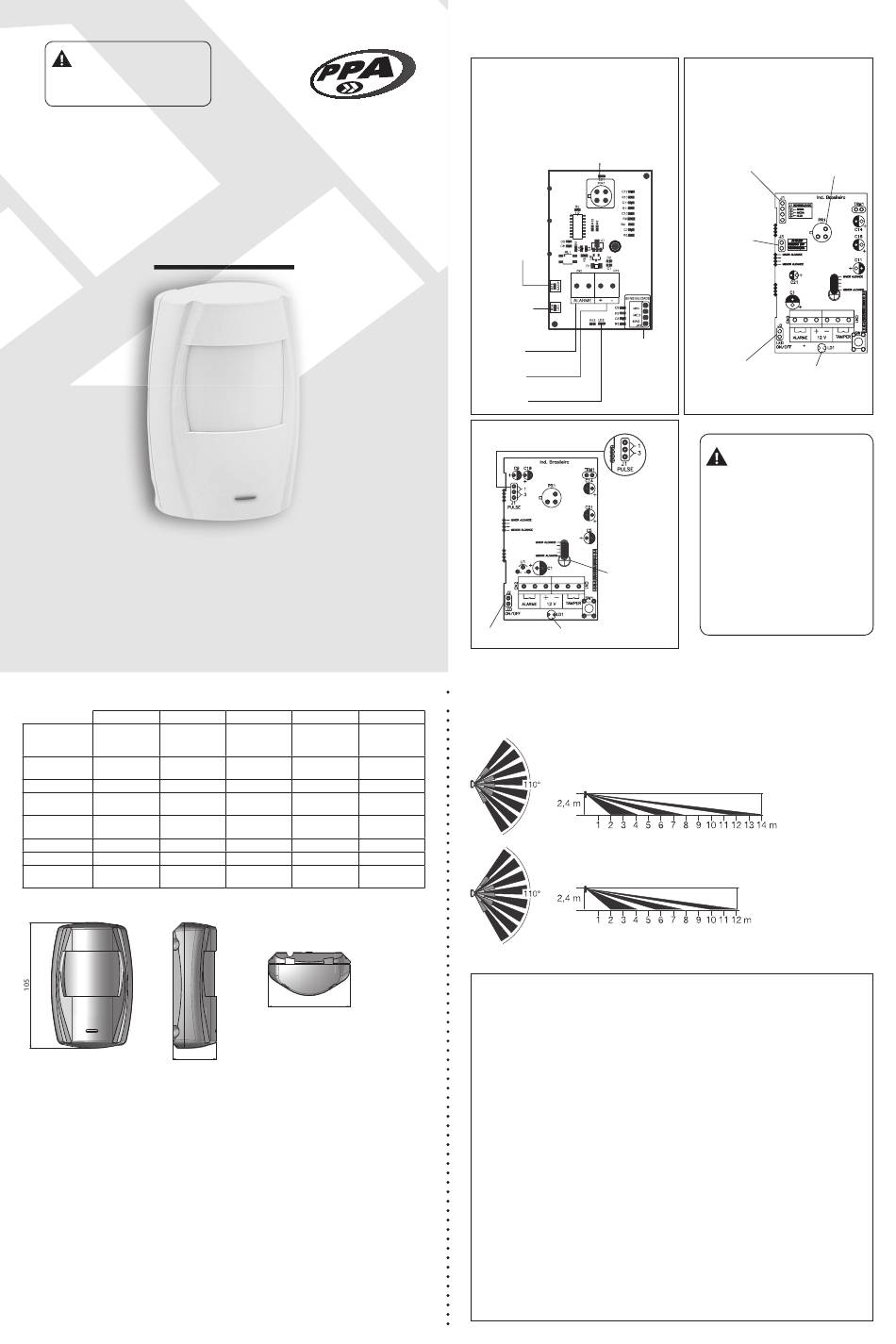

The following figures illustrate the sensor boards with their components:
SMART PET PRO
NOTE: Before
changing the
resistor status,
turn off the sensor
power.
NO RESISTOR:
Normally open
alarm output (NO)
when detection
occurs the output
closes.
WITH RESISTOR:
Normally closed
alarm output (NC)
when detection
occurs the output
opens.
WITH RESISTOR:
LED on
WITHOUT
RESISTOR: LED off
Alarm output
Input power;
9~18 VDC
Signaling LED
SMART SOLID,
SMART SOLID PET
J2: Enables and
disables the LED.
The figures below show the sensor detection range viewed from above and from the side.
SMART SOLID PET
Yes
12m reach x
110° opening
2 seconds
60 seconds
-
10 ~ 18 V DC
15 mA (12 V)
-10° a 45°
36
MOTOPPAR, Industry and Commerce of Automatic Gate Operators Ltd., registered with the CNPJ (National Registry of Legal
Entities) under Number 52.605.821/0001-55, located at 3526 Dr. Labieno da Costa Machado Avenue, Industrial District, Garça – SP
– Brazil, Zip Code 17400-000, manufacturer of PPA Products, hereby guarantees this product against design, manufacturing or
assembly defects and/or supportively as a result of material quality flaws that could make its intended use improper or inadequate,
within a legal period of ninety days from time of acquisition, provided that the installation instructions described in the instruction
manual are observed.
Due to the credibility and trust placed on PPA products, we will add 275 more days to the period mentioned above, reaching
a warranty period of one year, likewise counted from the time of acquisition proven by consumer through proof of purchase
(Customer Receipt).
In case of defect, within the warranty period, PPA responsibilities are restricted to the repair or substitution of the product
manufactured by the company, under the following conditions:
1. Repair and readjustment of equipment may only be carried out by PPA Technical Assistance, which is qualified to open, remove,
and substitute parts or components, as well as repair defects covered by this warranty; thus, failure on observing this guideline
and the verified use of any non-original parts will cause the resignation of this warranty on the part of the user;
2. The warranty will not extend to accessories such as cables, screw kit, fixing brackets, power supplies etc.;
3. Expenses for packaging, transportation and product reinstallation will be sole responsibility of the consumer;
4. The equipment must be sent directly to the Company responsible for the sale (manufacturer's representative), through the
address contained in the purchase invoice, properly packed, thus avoiding loss of the warranty;
5. Within the additional period of 275 days, visits and transportation in places where authorized technical assistance is not available
will be charged. The cost of transportation of the product and/or technician will be sole responsibility of the consumer and
6. The substitution or repair of the product does not prolong the warranty time.
This warranty will be terminated if the product:
1. Is damaged by natural agents, such as atmospheric discharges, floods, wildfires, landslides etc.;
2. Is installed in an improper electric power supply or if it is not according to any of the installation instructions displayed on
the manual;
3. Shows defects caused by droppings, collisions or any other physical accident;
4. Shows signs of product violation or attempted repair by unauthorized personnel;
5. Is not used for its intended purpose;
6. Is not used under normal conditions;
7. Is damaged by accessories or equipment connected to it.
Recommendation:
We recommend that both the installation and the maintenance of the operator to be performed by an authorized PPA technical
service. If the product fails or has an improper operation, seek an Authorized Technical Service to fix it.
MAIN COMPONENTS OF THE BOARD
SMART DIGITAL, SMART PET
ATTENTION!
-Avoid touching the sensor window.
-For cleaning use only ethyl alcohol
J1: Sets one of three
with a cotton swab when necessary.
detection sensitivity
-Do not touch the sensor without
levels (low, medium
ESD protections, in order to avoid
or high). NOTE: The
electrostatic discharges.
adjustment must be
done with the sensor off
(no power), otherwise
Sensor piroelétrico
the changes will not
take effect.
J3: Configures the
sensor to operate in
NO (normally open)
or NC (normally
closed) mode.
NOTE: the vast
majority of alarm
panels, currently
available, use the NC
mode.
ADJUSTMENT
OF SENSITIVITY
MIN: Lower
J2: Enables and
sensitivity
disables the
MAX: Highest
LED.
sensitivity
Pulse 1 - Adjusts
the maximum
sensitivity of the
sensor
Pulse 3 - Adjusts
the minimum
sensitivity of the
sensor
Vertical
adjustment of
detection range
(see below)
Detection indication
LED
DETECTION RANGE
SMART PET, SMART PET PRO, SMART DIGITAL:
The maximum coverage angle is 110° and the reach is 14 m when
installed at 2.4 m high and 90° from the ground.
SMART SOLID, SMART SOLID PET:
The maximum coverage angle is 110° and the reach is 12 m when
installed at 2.4 m high and 90° from the ground.
GENERAL TERMS AND CONDITIONS OF WARRANTY
Pyroelectric element
(detector).
Detection
indication LED
ATTENTION!
The recommended height
for mounting the sensor is
2.1 to 2.4 m.
In order for the pet function
of the SMART SOLID PET
and SMART PET PRO sensor
models to work correctly,
do not use articulators or
install the sensor inclined
downwards. They must be
fixed at 90º in relation to the
floor.
