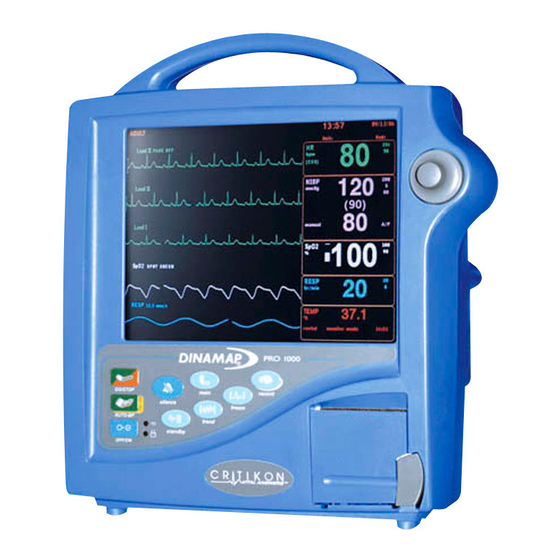

Summary of Contents for Critikon DINAMAP PRO 1000

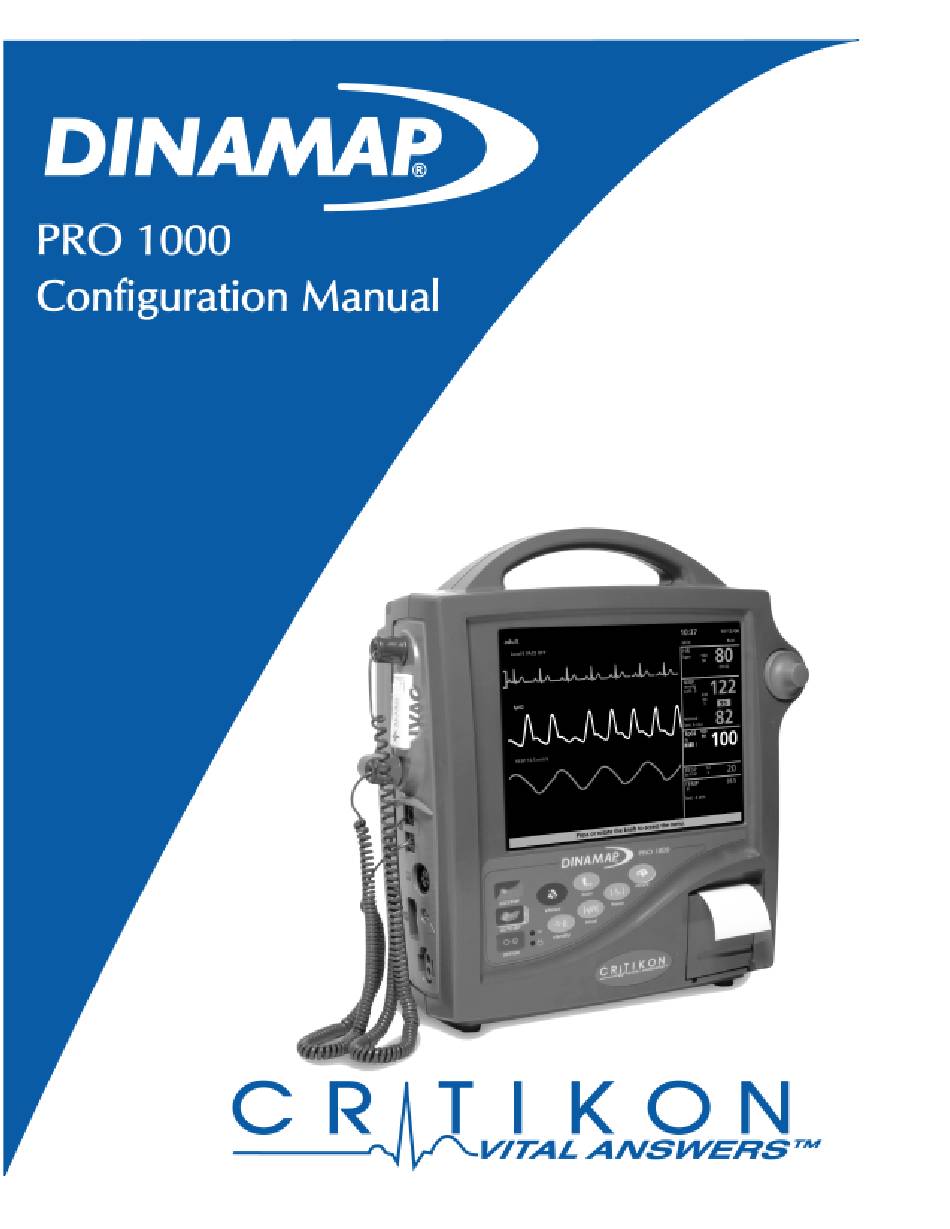

- Page 2 ® DINAMAP PRO 1000 Configuration Manual...
- Page 3 Revision: 777-365 A 2000 The content of this document including all figures and drawings is proprietary information of CRITIKON L.L.C. provided solely for purposes of installation, operation, maintenance, or repair, and dissemination for other purposes or publication or copying thereof is prohibited without prior written consent of CRITIKON L.L.C.
-
Page 4: Table Of Contents
How to Transfer Configuration to another Monitor ..................13 How to Exit the Configurator ..........................14 How to Uninstall the Configurator ........................14 Registering Your Configuration File with CRITIKON ................14 How to Register the Configuration File ......................14 Monitor-to-Monitor Transfers ........................15 How to Transfer Default Tables Between Two Monitors ................ - Page 6 Procedures within this document require specific equipment to safely perform the outlined tasks. Failure to use the specified equipment will likely result in damage to the monitor. Contact your Critikon Sales Representative or Critikon Customer Service to purchase these accessories.
-
Page 8: Configuration Mode
Configuration Mode Purpose Configuration mode is an off-line, password-protected mode of the DINAMAP PRO 1000 Monitor. Its main purpose is to allow each Monitor to be fully customized for up to six different monitoring situations. For example, in a labor and delivery unit, this Monitor can easily transition between the needs of a mother (adult) and baby (neonate). -
Page 9: Customizing Your Monitor
Customizing Your Monitor Menus In the Main menu and in most secondary menus, extended menus are a means of accessing additional options. The Main menu has one extended menu (Setup parameters), and most secondary menus have one or more extended menus. For example, the Setup EKG menu (shown in the figure) has six extended menus. -
Page 10: How To Configure Default Tables
Hints • Bed and unit numbers - Configure differently for each default table by selecting enter bed number and enter unit number from the Admit patient menu. • Configuring parameter settings - Parameters are initially set off-line for each table. To configure the settings for a particular parameter, select the desired parameter from the Configuration menu. -
Page 11: Transferring Configuration Data
For PC-to-Monitor transfers, you need the following: • DINAMAP PRO 1000 Monitor (software revision = RAC or later) • Microsoft Windows 95 (32-bit) or Windows NT 4.0 (or later compatible versions) • Minimum 16Mb of RAM •... -
Page 12: How To Transfer A Monitor's Configuration To A File
2. Type C:\configMPS\Configurator.exe in the space provided and choose OK to start the Configurator. 3. Choose Configure in the Transfer Configuration. A new dialog window will appear. 4. The options COM1 or COM2 appear. Select the port you intend to use and choose OK to activate it. -
Page 13: How To Transfer Configuration To Another Monitor
How to Transfer Configuration to another Monitor 1. Make sure the non-configured Monitor, hereby referred to as the Receiving Monitor, is equipped with an ILC-1927, and in configuration mode. For instructions, please refer to the How to Enter Configuration Mode section. 2. -
Page 14: How To Uninstall The Configurator
In our efforts to be the most admired patient monitoring company, we strive to provide the best service possible to our customers. In the event that your Monitor must be sent to CRITIKON for repairs, we will store the configuration according to the Monitor’s serial number. After the Monitor has been serviced, we will restore its configuration according to this file so that you will receive pre-configured unit. -
Page 15: How To Transfer Default Tables Between Two Monitors
Verify both Monitors have the same revision of software (as displayed on the Monitor’s screen when it is initially turned on), that the null modem cable (CRITIKON P/N 683241) is properly connected, and that the receiving Monitor is in configuration mode. - Page 16 How to Transfer Default Tables Between Two Monitors Using the Wireless Port Both Monitors MUST have the same software revision. Do not perform the following procedure while actively monitoring because monitoring ceases while in Configuration Mode. 1. If one of the Monitor’s has not been previously configured, please refer to How to Configure Default Tables.
-
Page 17: Time & Date
The Monitor has the ability to communicate with other external devices such as a central station. Using a protocol unique to CRITIKON products, waveform and vitals signs data can be serially communicated. The PRO 1000 Host Communications Manual covers the menu selections that must be set for the Monitor to properly communicate with external devices. -
Page 18: Exiting Configuration Mode
Exiting Configuration Mode Saving Your Modifications In order to ensure that any changes made to the default tables are permanently saved it is critical to select the menu option save default changes prior to either powering off the monitor or selecting the exit configuration mode menu option.
