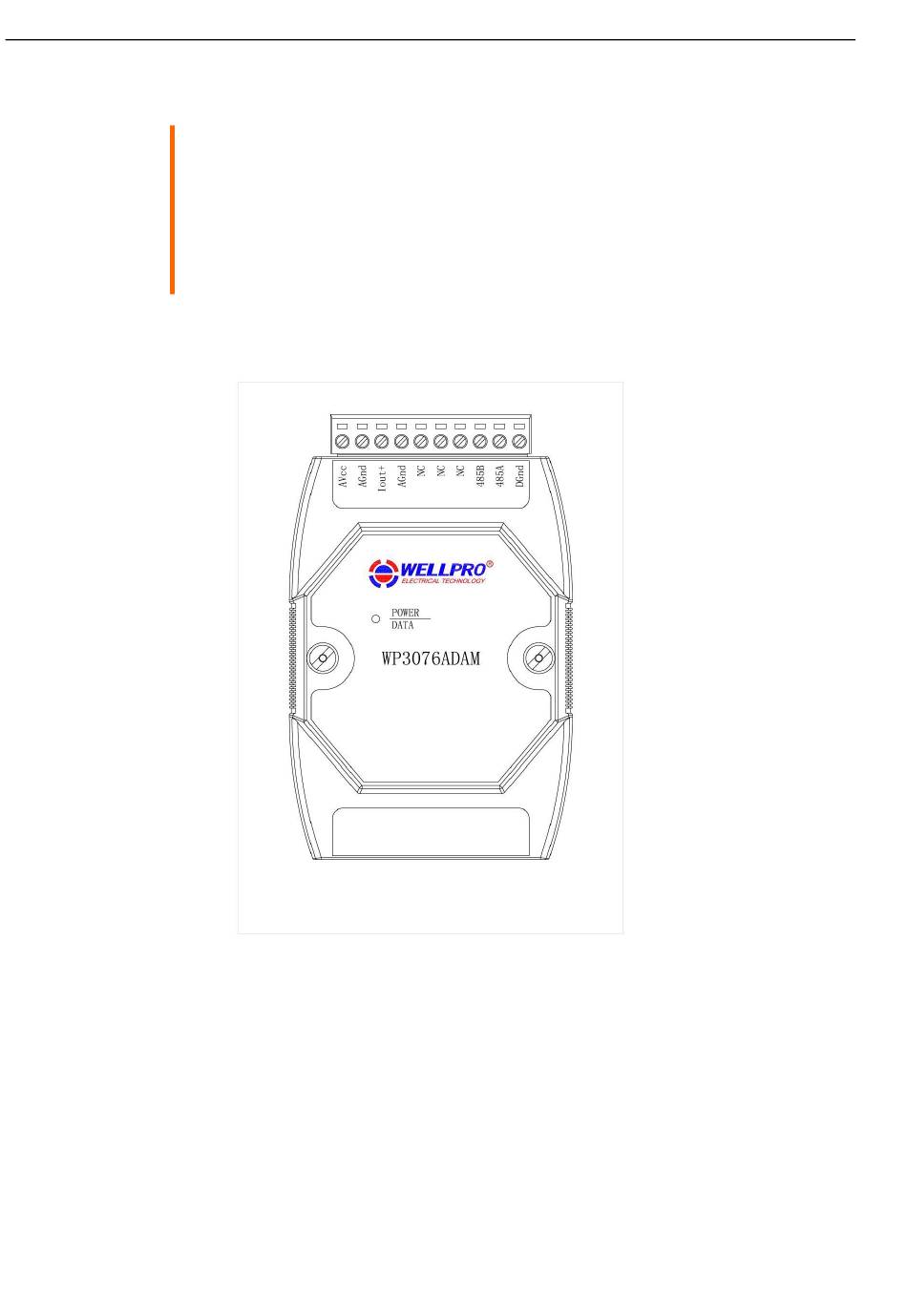

- Page 1 WP3076ADAM User’s Manual V1.42A WP3076ADAM User’s Manual Version 1.42A Shanghai Wellpro Electrical Technology Co., Ltd. www.shwellpro.com...
- Page 2 WP3076ADAM User’s Manual V1.42A 1、Product description ⚫ One current output channel: DC0~20mA / DC4~20mA ⚫ RS485 MODBUS RTU standard communication protocol ⚫ Netted with configuration software, PLC or industry touch panel ⚫ Communication status LED ⚫ Communication circuit designed for thunder protection and interference immunity ⚫...
- Page 3 WP3076ADAM User’s Manual V1.42A 5.2、Command for analog output data setting Send: 01 06 00 00 2C 39 55 18 （example/hex） data byte data description remark module address address range:01-FE function code 06-write single holding register 0000 register address (4X type)
- Page 4 WP3076ADAM User’s Manual V1.42A 5.5、Command for communication parameter setting Send：01 06 00 65 00 02 18 14 （example/hex） data byte data description remark module address address range:01-FE function code 06-write single holding register 0065 register address (4X type) 0065-communication parameter register...
- Page 5 WP3076ADAM User’s Manual V1.42A 8、RS485 network diagram...
