MerCs STRIDER M3 V2 User Manual

STRIDER M3 V2
Multifunction Power Analyser With RS485 Port modbus RTU
(ME-PM-M3-5) V1.0
and Pulse Outputs
Unit Characteristics
The Unit can measure and display:
• Line voltage and THD% (total harmonic distortion) of all phases
• Line Frequency
• Currents, Current demands and current THD% of all phases
• Power, maximum power demand and power factor
• Active energy imported and exported
• Reactive energy imported and exported
Two pulse output indicates real-time energy measurement. An RS485 output allows remote monitoring from another display or a computer.
User Manual
Features
• Measures kWh Kvarh, KW, Kvar, KVA, P,
• F, PF, Hz, dmd, V, A, etc.
• Bi-directional measurement IMP & EXP
• Two pulse outputs
• RS485 Modbus
• Din rail mounting 35mm
• 100A direct connection
• Class: 0.5S accuracy
Introduction

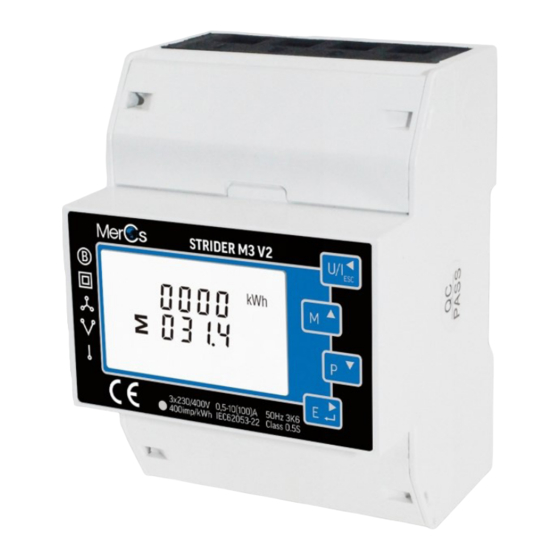

The Strider M3 V2 (Part No.: ME-PM-M3) measures and displays the characteristics of single
phase two wires (1p2w), three phase three wires (3p3w,) and three phase four wires(3p4w)
supplies, including voltage, frequency, current, power ,active and reactive energy, imported
or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be
measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires
voltage and current inputs in addition to the supply required to power the product.
ME-PM-M3 supports max. 100A direct connection, saves the cost and avoid the trouble of
connecting external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces
provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.
MerCs Pty Ltd, 55 Pendlebury Rd, Cardiff, NSW, 2285, Australia | 2018 V1.1
02 4047 0777 02 4047 0788
The unit has password-protected set-up screens for:
• Changing password
• Supply system selection 1p2w, 3p3w,3p4w
• Demand Interval Time (DIT)
• Reset for demand measurements
• Pulse output duration
www.mercs.com.au 1
