MerCs Strider M6 User Manual

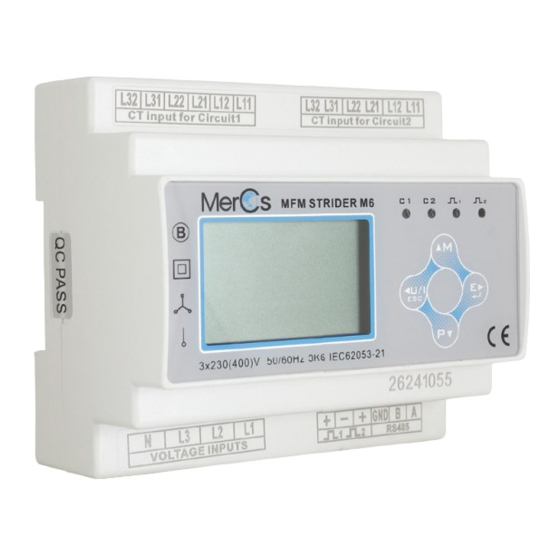

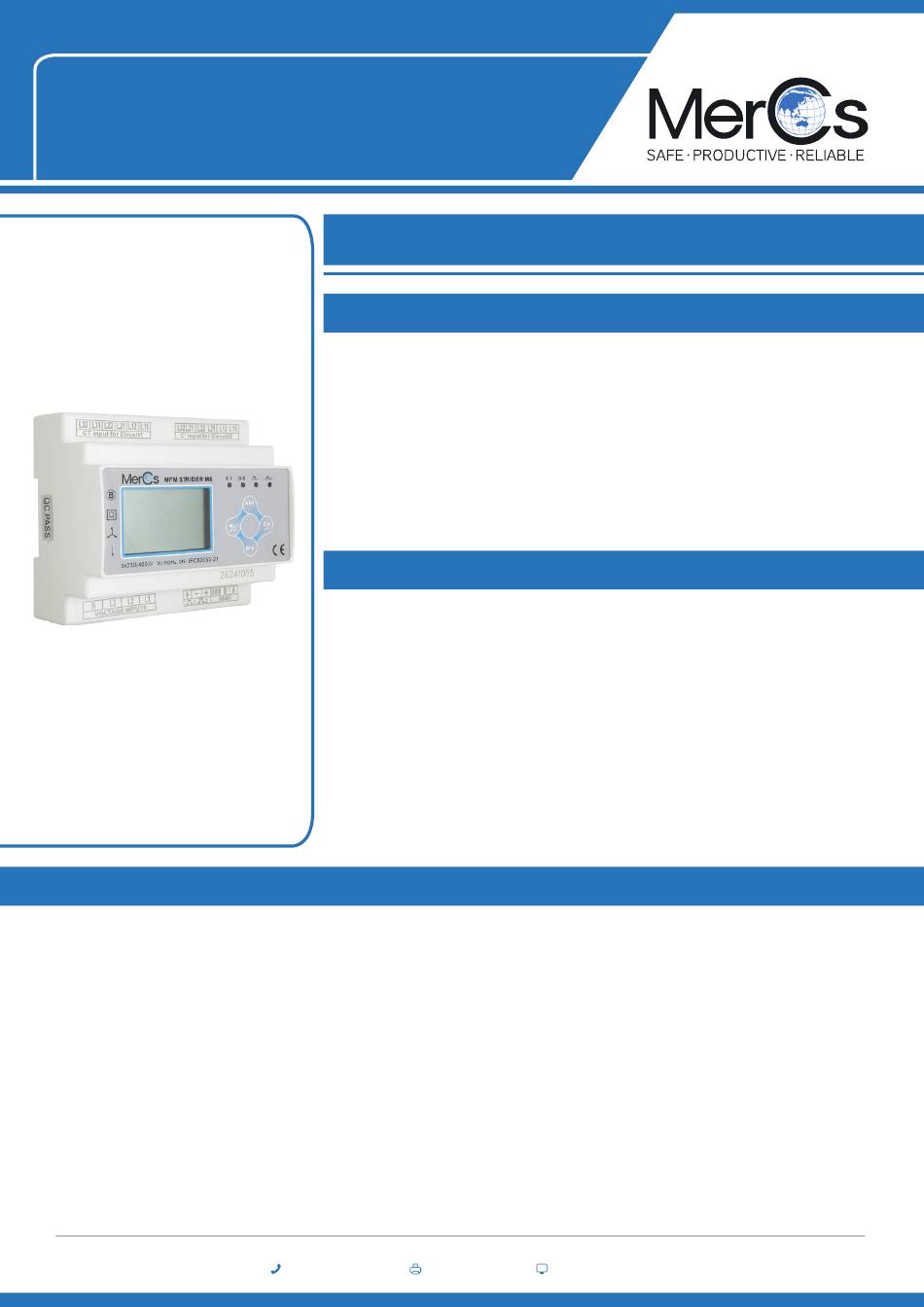

MerCs Strider M6
ME-PM-63OMCT-2C
Unit Characteristics
The Unit can measure and display electronic information of
multi-channels:
• L-N voltage and THD% (total harmonic distortion) of all phases
• Line Frequency
• Currents, Current demands and current THD% of all phases
• Power, maximum power demand and power factor
• Active energy imported and exported
• Reactive energy imported and exported
A pulse output indicates real-time energy measurement. An RS485 output allows remote monitoring from another display or a computer.
User Manual
Features
•
Measures kWh Kvarh, KW, Kvar, KVA, P, F, PF, Hz, dmd, V, A, THD, etc.
•
Bi-directional measurement IMP & EXP
•
Two pulse outputs
•
RS485 Modbus
•
Din rail mounting 35mm
•
1/5A CT connection
•
Better than Class 1 / B accuracy
•
2pcs 3p4w meters and 6pcs 1p2w
Introduction
SDM630MCT-2C measures and displays the characteristics of two three phase four wires circuits
or 6 single phase circuits, including voltage, frequency, current, power and active and reactive
energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand
current can be measured over preset periods of up to 60minutes. In order to measure energy, the
unit requires voltage and current inputs in addition to the supply required to power the product.
The requisite current input(s) are obtained via current transformers (CT).
This meter can be configured to work with a wide range of CTs, giving the unit a wide range of
operation. Built-in interfaces provide pulse and RS485 Modbus RTU outputs. Configuration is
password protected.
MerCs Pty Ltd, 55 Pendlebury Rd, Cardiff, NSW, 2285, Australia | 2018 V1.1
02 4047 0777 02 4047 0788
The unit has password-protected set-up screens for:
• Changing password
• Supply system selection 1phase2wire, 3phase 4wires
• CT Ratio (1 to9999 )
• PT ratio (1 to 9999)
• Demand Interval time
• Reset for demand measurements
• Pulse output duration
