User Manual

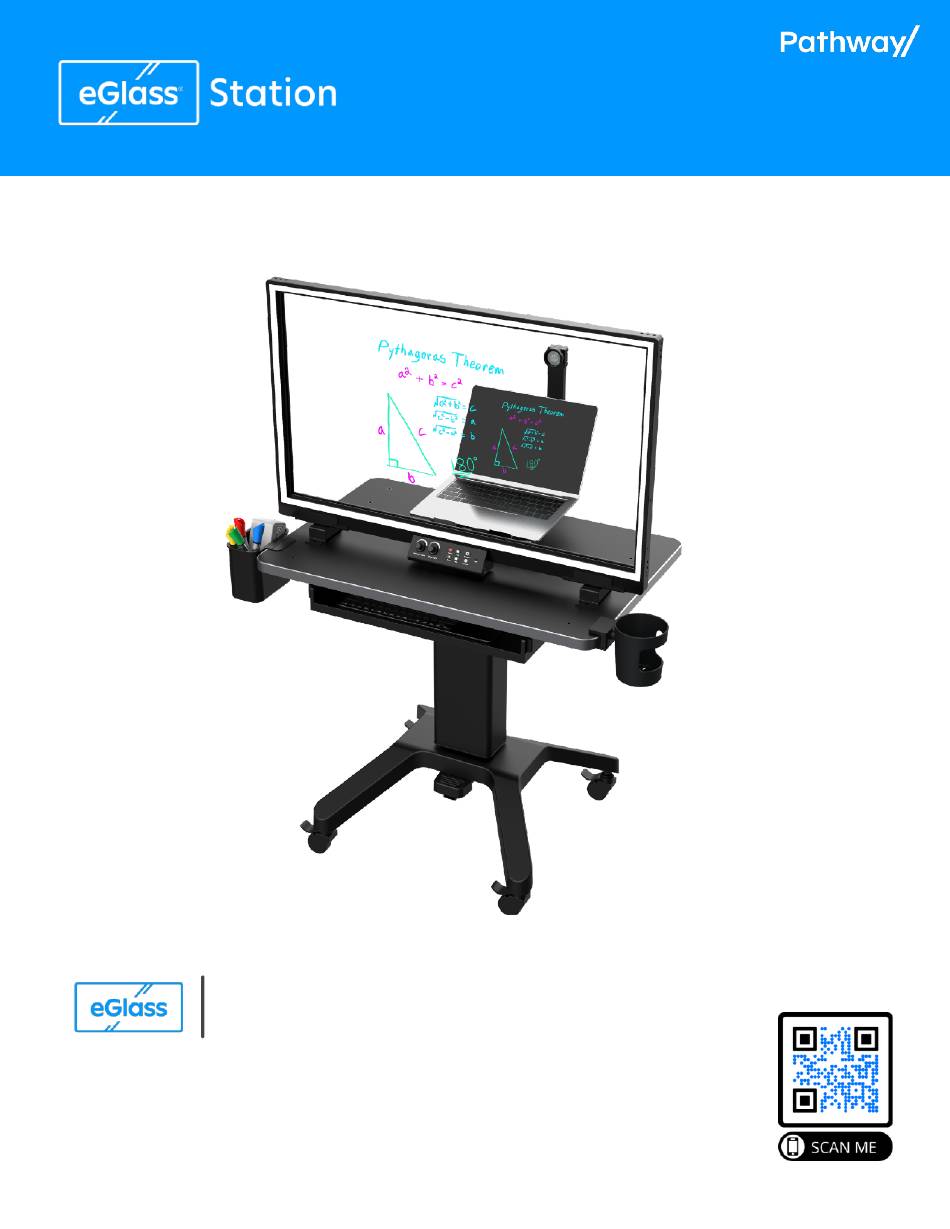

What's In the Box?


Note:
This is a user manual for the eGlass Station Podium ONLY. For the full eGlass
Lightboard user manual, instructional videos, software downloads, and further
training and support, visit the eGlass Academy by scanning this QR Code with
your phone, or by visiting
https://www.eglass.io/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eGlass Station and is the answer not in the manual?

Questions and answers

Related Manuals for pathway eGlass Station

Summary of Contents for pathway eGlass Station

  • Page 1 What's In the Box?
 Note: This is a user manual for the eGlass Station Podium ONLY. For the full eGlass Lightboard user manual, instructional videos, software downloads, and further training and support, visit the eGlass Academy by scanning this QR Code with your phone, or by visiting https://www.eglass.io/support...

  • Page 2: What's In The Box

    What’s in the Box
 Podium Surface 10mm M5 Hex Bolt (4x) Power Cord Pillar 15mm M5 Hex Bolt (4x) eGlass Power Cable Wheel Base M5 Thumbscrews (12x) Pen Holder Foot Pedal 35” eGlass Brackets M5 Hex Driver Wheels (4x) 50”...
  • Page 3 Diagram
 Accommodates 35” or 50” eGlass Lightboards Accommodates Laptop Stand Podium Surface with Multiple Mounting Holder Positions Brackets for 35” and 50” Pullout Mouse & eGlass Included Keyboard Tray Sit/Stand Height Adjustable Podium Podium Wheel Base Height Adjustment Lockable 360º Foot Pedal Heavy Duty Casters...
  • Page 4 Assembling Podium
 Step 1: Place the Podium Surface upside-down on a flat surface, and pull out the mouse and keyboard tray to expose the mounting holes. Step 2: Align the Pillar with the recessed holes in the Podium Surface, and use M5 Hex Driver 10x M5 Hex Screws (pointed tip) to fasten...
  • Page 5 Assembling Podium
 Step 3: Use the Wheel Wrench to tighten 4x Wheels to the Wheel Base Step 4: Use the M5 Hex Driver the 4x longer 15mm M5 Hex to fasten the Bolts Wheel Base to the Pillar. Important: Make sure you install the wheel base so that its height-adjustment Foot...
  • Page 6 Mounting eGlass
 35” Mounting 50” Mounting Step 1: Brackets Brackets First, select the Mounting Brackets based on the size of the eGlass being mounted. Step 2: Position the Mounting Brackets in the desired location on Podium Surface. A Note About Mounting Positions: There are five positions the mounting brackets can be secured in to position the glass surface closure or further away from the user.
  • Page 7 Mounting eGlass
 Step 3: 4x M5 Thumbscrews to secure the Mounting Brackets in the desired location on the Podium Surface. Step 4: Carefully lower the eGlass frame into the Mounting Brackets, and use 6x M5 Thumbscrews secure the eGlass frame.

  • Page 8: Connecting And Powering-On

    24V 5A power-outlet located on the left underside of the Podium Surface. Powering On To power on (and off) the eGlass Station battery, activate the Power Switch located on the left underside of the Podium Surface.

  • Page 9: Battery Indicator

    Charging
 The eGlass Station battery must be charged routinely. To charge the station, first connect the Power Cord to the Power Adapter, and then connect the to the 19V 9.47A Power Adapter power-in located on the left underside of the Podium Surface.
  • Page 10 Powering Laptop and Accessories
 When the podium is powered-on, it’s battery can also power or charge compatible USB devices (like a USB-C laptop) by connecting the devices to either the 100W USB-C port or 30W USB-A port located on the backside of the Podium Surface.
  • Page 11 Wireless Keyboard and Mouse (not included) to be able to control your laptop while it is behind the glass. If your laptop stand needs to overhang beyond the eGlass Station Podium Surface, there are two holes tapped for M5 Thumbscrews that will secure the stand down so that it can support the unbalanced weight of a laptop without falling over.

  • Page 12: Adjusting Height

    Adjusting Height
 eGlass Station is height-adjustable, accommodating both sitting or standing use. To adjust the height, press down on the Height- Adjustment Foot Pedal and pull or push the podium up or down to the desired height, then release the foot pedal.
  • Page 13 Mounting Pen Holder
 Pen Holder is also included, and can be mounted on any edge of the podium surface by removing the adhesive backing and pressing the adhesive side of the pen holder on any edge of the Podium Surface, except for the edge in front of the Pullout Keyboard and Mouse...

  • Page 14: Specifications

    Glass Specifications High strength 6mm scratch resistant tempered glass eGlass Station Battery Power On/Off, eGlass Lightboard on/off, Bottom Instructor Light On/Off, Instructor lights (+/-), Glass Lights (+/-), Control Interface Record Video, Pause Recording, Stop Recording, Capture Snapshot, Camera Exposure (+/-)

  • Page 15: Safety Warnings

    Safety Warnings
 Power Cords, Power Adapters, Extension Cables, Outlets WARNING: Use only the power cords and power adapters supplied by the product manufacturer. The power cords shall be safety approved. Never wrap a power cord around a power adapter or other object. Doing so can stress the cord in ways that can cause the cord to fray, crack, or crimp.
  • Page 16 Safety Warnings
 Heat and Product Ventilation WARNING: The podium battery, lights, ac power adapters, and many accessories can generate heat when turned on and when batteries are charging. Always follow these basic precautions: When your podium is turned on or the battery is charging, some parts may become hot. Avoid keeping any part of your body in contact with a hot section for any extended length of time.
  • Page 17 © Copyright Pathway Innovations, Inc. D.B.A. eGlass 2023 This document is copyrighted by Pathway Innovations, Inc. and Pathway may update this document at any time without notice. To obtain the most up-to-date documentation for your eGlass products, go to: www.eGlass.io/support...

  • Page 18: Warranty


 For a five (5) year period from product purchase date by the end user, Pathway Innovations, Inc. will repair or supply a new replacement, at no cost, for eGlass parts and included accessories determined by company to be damaged and defective, including accidental damage.
  • Page 19 Academy by scanning the QR Code with your phone, or by visiting https:/ /www.eglass.io/support If you are having issues with your eGlass or eGlass Station, please submit a support ticket at: https:/ /eglass.io/support-ticket You can also reach support directly at:...
  • Page 20 © Copyright 2023 eGlass®. All rights reserved. eGlass® is a registered trademark of Pathway Innovations, Inc. This content is subject to change without notice. Depicted product appearance, features and specifications may vary in the final product(s). eGlass® shall not be liable for technical or editorial errors or omissions contained herein.
