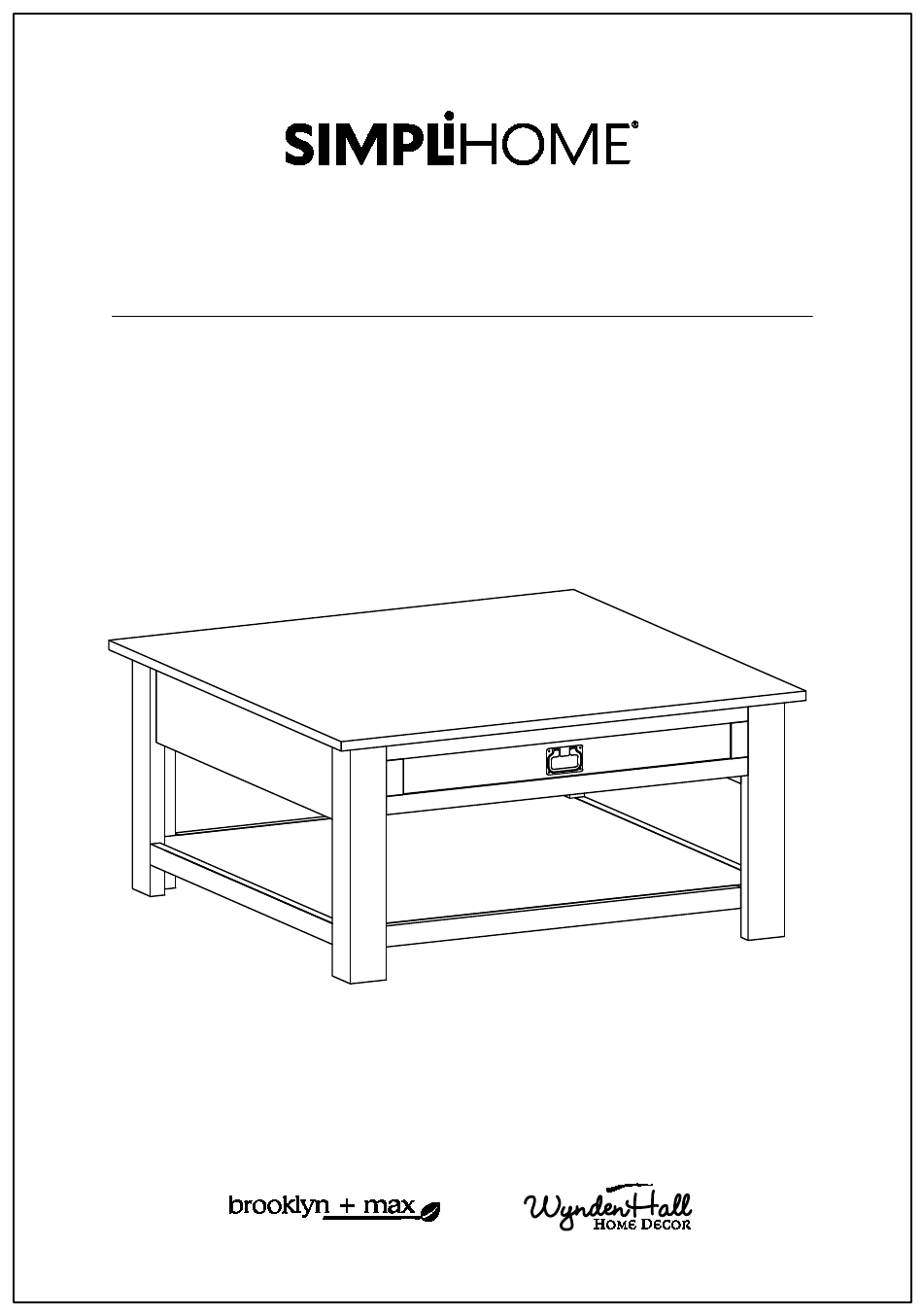

- Page 1 Monroe / Garret / Sullivan Square Coffee Table Model # AXCMON-02-FG...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCMON-02-FG Part Description SIDE (L&R Same) BOTTOM SHELF QTY 1 QTY 2 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 2 QTY 2 QTY 2 DRAWER BOTTOM SUPPORT DRAWER BOTTOM DRAWER BACK QTY 2 QTY 2 QTY 2...
-
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # AXCMON-02-FG Hardware Description DOWEL ALLEN KEY BOLT ALLEN KEY M6 X 30mm Ø 8 X 25mm QTY 1 QTY 12 QTY 8 CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm QTY 8 SETS QTY 8 Required - Flathead screwdriver... - Page 9 Components - Key Diagram Model # AXCMON-02-FG...
- Page 10 Assembly Model # AXCMON-02-FG Step 1 1. Attach four Cam Lock Pins 5 into pre-drilled holes at back of Drawer Front D . 2. Use Phillips screwdriver secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 11 Assembly Model # AXCMON-02-FG Step 3 Step 4...
- Page 12 Assembly Model # AXCMON-02-FG Step 5 1. Align Drawer Back F with Drawer Bottom G , Wood Dowels with guide holes and press firmly into slot . 2. Use four Allen Key Screws 4 to attach Drawer Sides EL , ER through guide holes from Sides EL , ER to pre-drilled holes of Drawer Back F .
- Page 13 Assembly Model # AXCMON-02-FG Step 6 1. Insert four Wood Dowels 3 into guide holes on Bottom Shelf C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 7 1.
- Page 14 Assembly Model # AXCMON-02-FG Step 8 1. Repeat Step-7 for the second Side B . Step 9 1. Insert four Wood Dowels 3 into guide holes on Sides B . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 15 Assembly Model # AXCMON-02-FG Step 10 1. Align Wood Dowels with guide holes and attach Sides B to Top A . 2. Use six Allen Bolts 1 to attach Sides B through guide holes from Sides B to Top A . 3.
- Page 16 Assembly Model # AXCMON-02-FG Step 11 1. Insert assembled drawers into glides on assembled coffee table.
