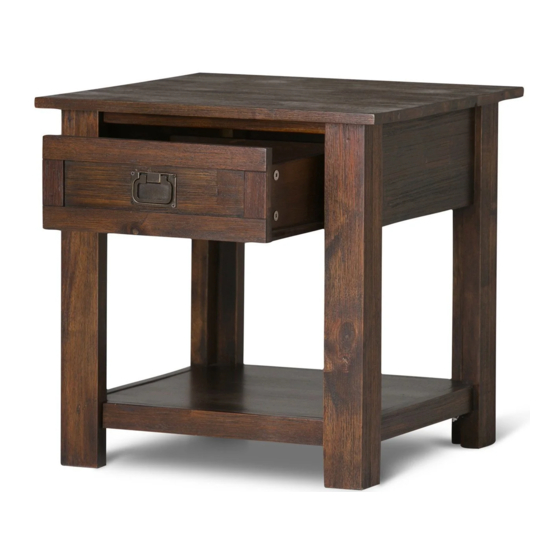

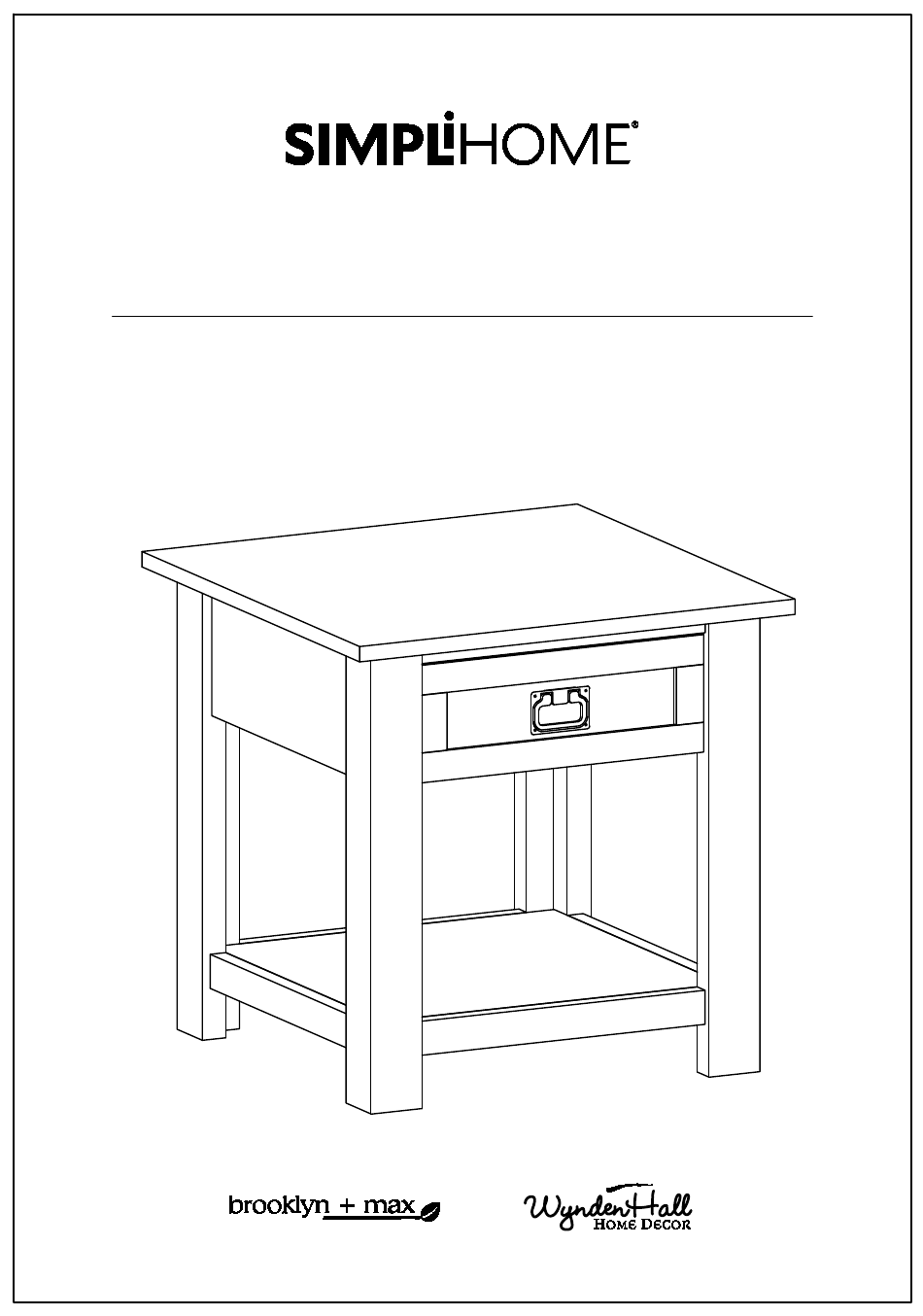

- Page 1 Monroe / Garret / Sullivan End Table Model # AXCMON-03GR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCMON-03GR Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF BACK PANEL DRAWER FRONT QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 1 QTY 1 QTY1 DRAWER BOTTOM QTY 1... - Page 8 Pre-Assembly Information Model # AXCMON-03GR Hardware Description DOWEL ALLEN KEY BOLT Ø M6 X 30mm ALLEN KEY 8 X 25mm QTY 14 QTY 8 QTY 1 CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm QTY 4 SETS QTY 4 Required - Flathead screwdriver...
- Page 9 Components - Key Diagram Model # AXCMON-03GR...
- Page 10 Assembly Model # AXCMON-03GR Step 1 1. Attach 4 Cam Lock Pins 5 to pre-drilled holes at back of Drawer Front E . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides FL , FR . 3. Insert 2 Cam Locks 5 into pre-drilled holes on each Drawer Side FL , FR . 4.
- Page 11 Assembly Model # AXCMON-03GR Step 3 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot. 2. Attach Drawer Back G using 2 Allen Key Screws 4 through pre-drilled holes on each Side FL , FR . 3.
- Page 12 Assembly Model # AXCMON-03GR Step 4 1. Insert Dowel 3 into pre-drilled holes on Back Panel D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3. Attach Back Panel D to Right Side BL using 2 Allen Key Bolts 1 . 4.
- Page 13 Assembly Model # AXCMON-03GR Step 5 1. Insert 2 Dowels 3 into pre-drilled holes on each side Bottom Shelf C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
- Page 14 Assembly Model # AXCMON-03GR Step 6 1. Repeat Step-4 and Step-5 for the Right Side BR .
- Page 15 Assembly Model # AXCMON-03GR Step 7 1. Insert Dowel 3 into pre-drilled holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
- Page 16 Assembly Model # AXCMON-03GR Step 8 1. Insert assembled drawer into glides on assembled end table.
