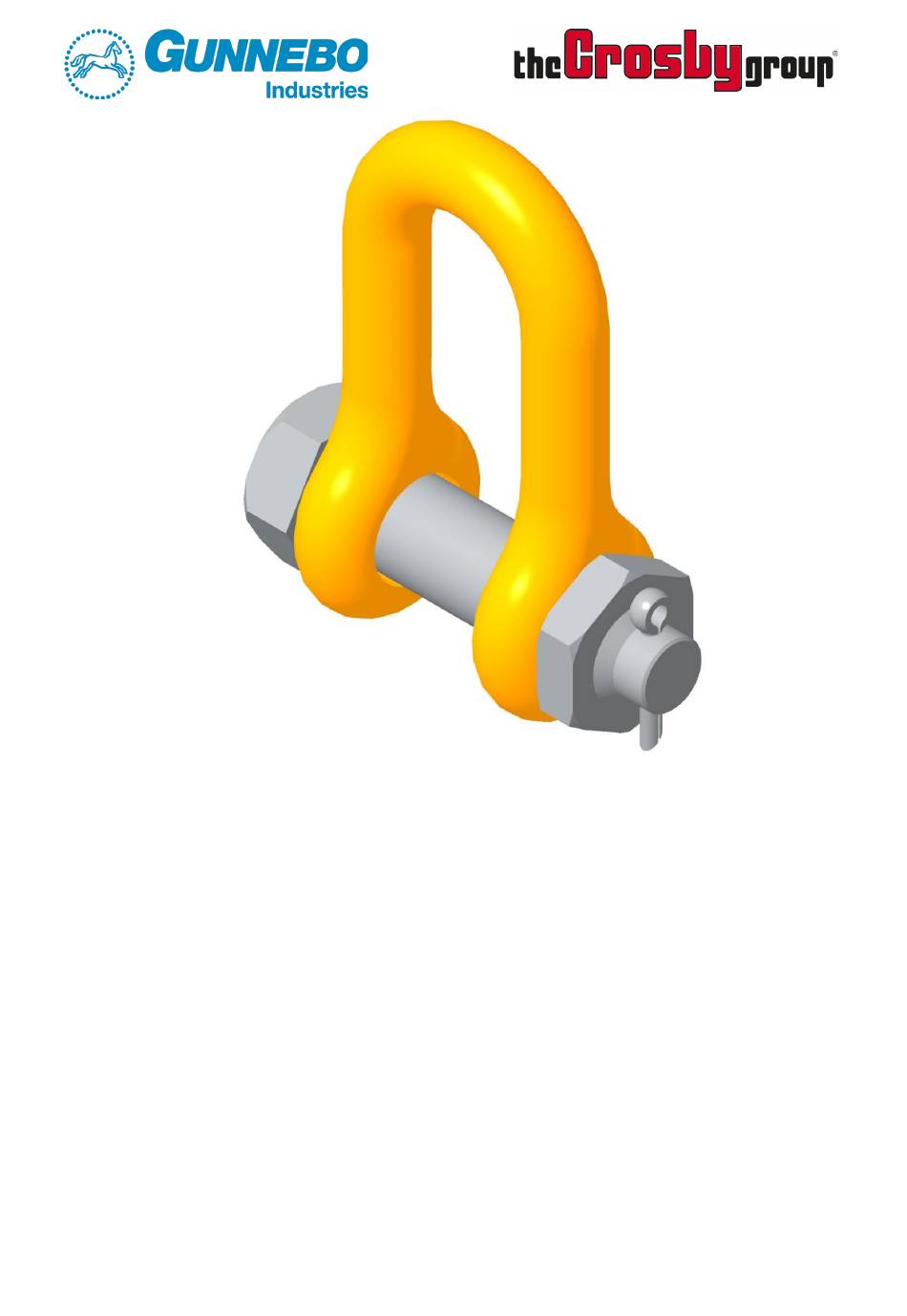

- Page 1 User manual for Shackle SA Classic Table of content: 1. Introduction and EC declaration 2. General description 3. Intended use and restrictions 4. Assembly 5. User instructions 6. Maintenance Manufacturer: Made in Sweden by: Gunnebo Industrier AB www.gunneboindustries.com www.thecrosbygroup.com Version 2022.10.19...
- Page 2 Introduction and EC declaration 2. General description This manual is an original instruction in The SA shackle is a lifting shackle consisting of a accordance with Directive 2006/42/EC on U-shaped body, a bolt, a nut and a safety cotter machinery section 1.7.4 Instructions and Annex II pin.
- Page 3 3. Intended use and restrictions Intended use WLL reduction at elevated temperatures Bolt, nut, and cotter pin type shackles like the The general service temperature is -40 °C to SA Shackle provide the most secure pin (bolt) +200 °C. For temperatures higher than +200° C, arrangement.
- Page 4 4. Assembly 5. User instructions When the SA product is incorporated as a part of The SA shackle is only to be used after reading a sling it must be part of the certification and and understanding this manual. WLL rating of the complete sling. For further recommendations regarding safe use of the shackle in sling applications, the user is The assembly of the SA shackle may only be...
- Page 5 When securing the load, the bow of the General instructions for safe use shackle should be put into the running side of Avoid side loading a choke. The SA shackle should be fitted to the load in a manner that allows the shackle body to take the load in a true line along its centreline to avoid undue bending stresses which will reduce the load capacity of the shackle.
- Page 6 6. Maintenance Inspection Repair During service lifting equipment are subjected to Repairs must only be done by a competent conditions which affect their safety. It is person who has the knowledge and technical therefore necessary to ensure that the skills. The shackle shall only be returned to equipment should be safe for continued use.
