Option 6: WiFi connection with PoE
Note: WiFi requires an antenna (sold separately).
To install the Door Station with WiFi and PoE:
1 Ensure that a strong and reliable WiFi signal is available.
2 Connect the Ethernet cable into the Door Station (see
Figure 8).
3 Attach the antenna (3 m or 26 cm) to the Door Station. See
"WiFi antenna kit installation" for details.
4 Run the antenna wire through the back box hole (see
Figure 12). Ensure that the wire doesn't touch the back box.
5 Align the antenna vertically to the wall outside the back
box (26 cm antenna) or run the antenna through the wall
(3 m antenna).

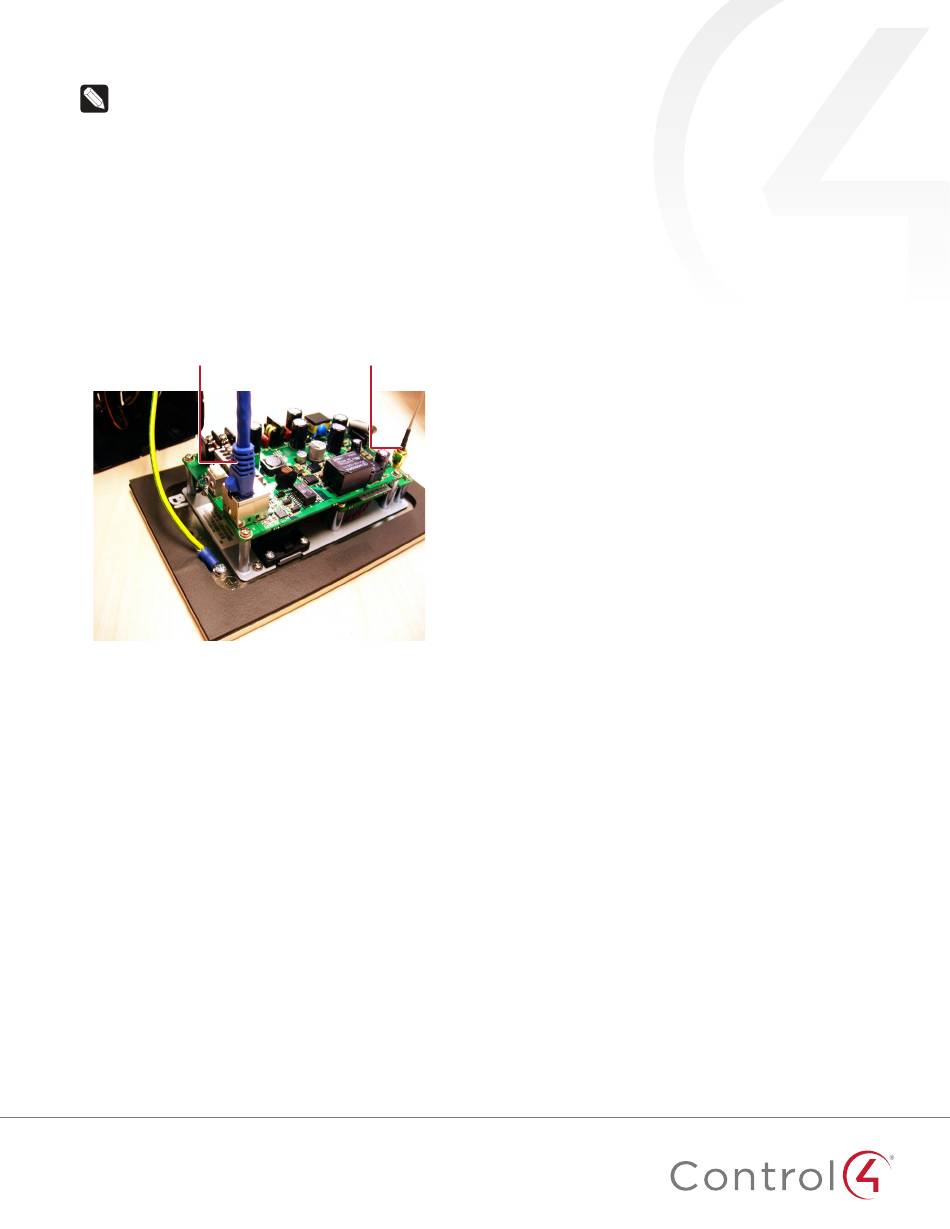

Figure 8: WiFi with PoE
Ethernet and PoE connection
Attach the Door Station
To attach the Door Station to the back box:
1 After the back box, all wiring, cables, and antennas are
installed, carefully insert the Door Station into the back box.
2 Align the Door Station's top and bottom screw holes on the
faceplate with the screw holes on the back box, then attach
the Door Station to the back box with the included screws.
3 To prevent moisture and dust from getting inside the Door
Station, make sure the rubber gasket on the inside panel
completely covers and seals the Door Station's faceplate
against the back box.
6
Configure the Door Station
To configure the Door Station in Composer Pro:
1 In Composer Pro, double-click the Door Station driver to add
it to a room in the project.
2 Identify the device to the project.
3 (WiFi only) For your convenience, the Door Station driver
includes a meter to check WiFi signal strength. Use System
Manager in Composer Pro to configure the WiFi parameters.
See the Composer Pro User Guide for details.
Resetting/Factory restoring the Door
Station
To reset or factory restore the Door Station:
WiFi antenna
1 Unscrew the faceplate (top and bottom) and pull the Door
Station out from the back box just enough to expose the
Reset button (see Figure 2).
2 While the Door Station is still powered, press the Reset
button on the bottom of the Door Station to reset or restore:
• Quick press—Resets. Press to reset the Door Station.
• Long press—Restores to factory defaults. Press until the
3 When the reset/restore is completed, insert the Door Station
into the back box and reattach the faceplate.
button on the faceplate begins to blink rapidly, signaling
the start of the factory restore process.
