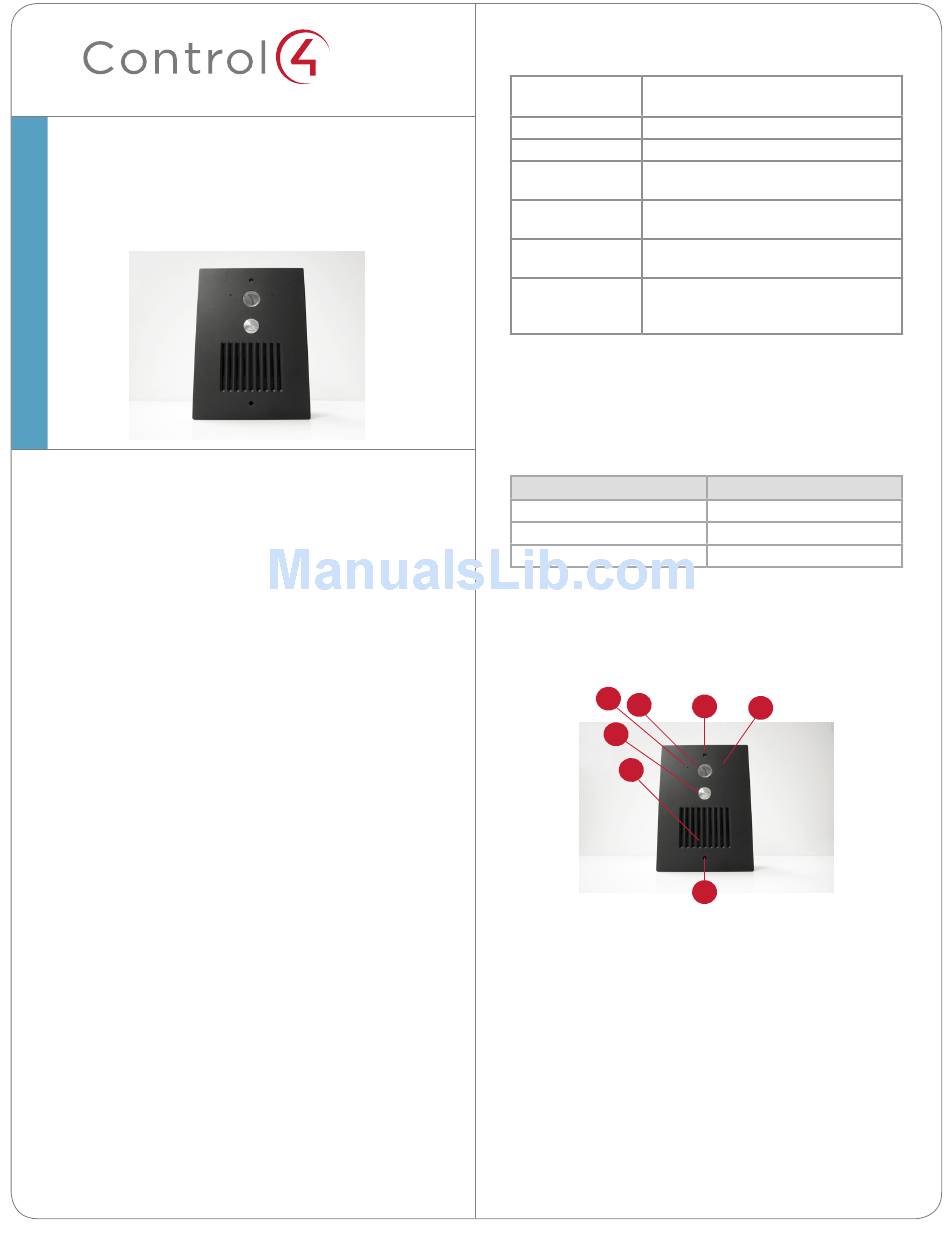

Door Station - Exterior
Setup Guide
Supported Models
• C4-DSC-EN-BL Door Station - Exterior
AC, DC, POE & WiFi - Satin Black
• C4-DSC-EN-SN Door Station - Exterior
AC, DC, POE & WiFi - Satin Nickel
• C4-DSC-EN-VB Door Station - Exterior
AC, DC, POE & WiFi - Venetian Bronze
Box Contents
Carefully unpack the Control4® Door Station from the
box and ensure that the following items are included
in the box. Contact your Control4 Dealer immediately
if any parts are missing or if any components are
damaged.
• Control4 Door Station - Exterior faceplate (model
C4-DSC-EN-xx)
• Two (2) mounting screws
• Security screw tool
• Warranty Card
Accessories
• Door Station Metal Back Box (C4-DSBB-M, sold
separately)
• Antenna Kit—WiFi/ZigBee 2.4 GHz, 26cm
(C4-AK-26cm, sold separately)
• Antenna Kit—WiFi/ZigBee 2.4 GHz, 3m
(C4-AK-3M, sold separately)
™

Specifications

Dimensions (H x
7.19" (183 mm) x 5.25" (133 mm) x 2.5"
W x D)
(63.5 mm)
Weight
1.1 lbs. (.49 kg)
Shipping Weight
1.6 lbs. (.725 kg)
Network
10/100 BaseT Ethernet (preferred) or WiFi
(802.11 b/g/n)
Voltages
AC - 100V - 240V
DC - 12 - 24V, 15W
Contacts (2 sets)
DC: 48V
maximum operation (low voltage)
Relays (1)
AC: 36V, 2A
DC: 24V
maximum operation (low voltage)
Grounding Requirements
The following table indicates which power options
require an earth ground.
Power Type
AC
Power over Ethernet (PoE)
DC

Front Panel Description

Figure 1. Front Faceplate
5
1
2
3
1
Camera. 640 x 480 wide angle. Used for Video
Intercom.
2
Call button. Used to call the person inside the
structure.
3
Speaker. Used for Audio and Video Intercom.
4
Screw holes (2). Used to screw the faceplate into
the exterior wall.
5
Microphones (2). Used for Audio and Video
Intercom.
Earth Ground?
Yes, required for safety.
No. Do not connect.
Recommended; not required.
4
5
4
1
