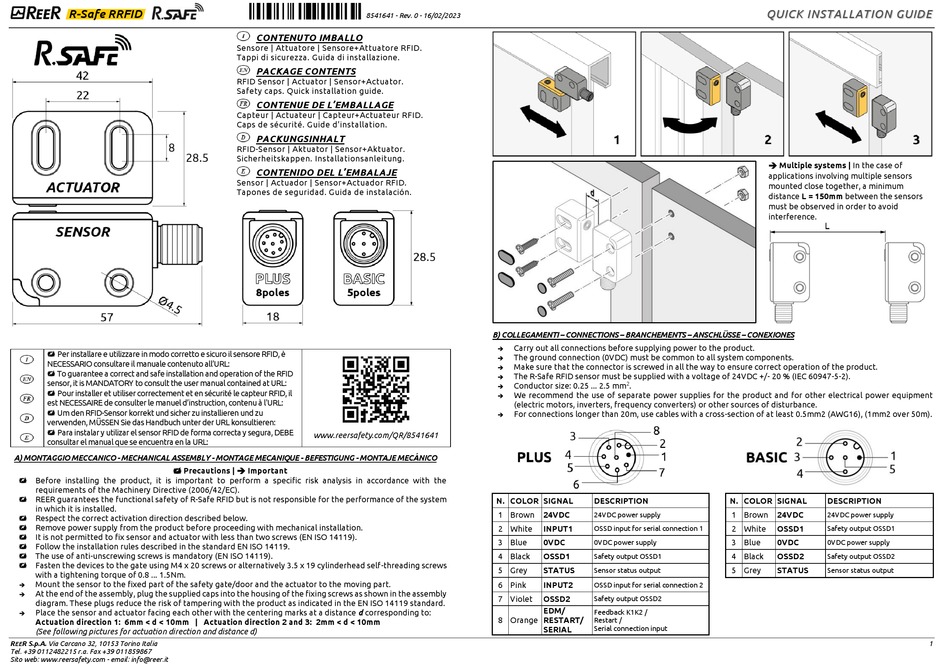

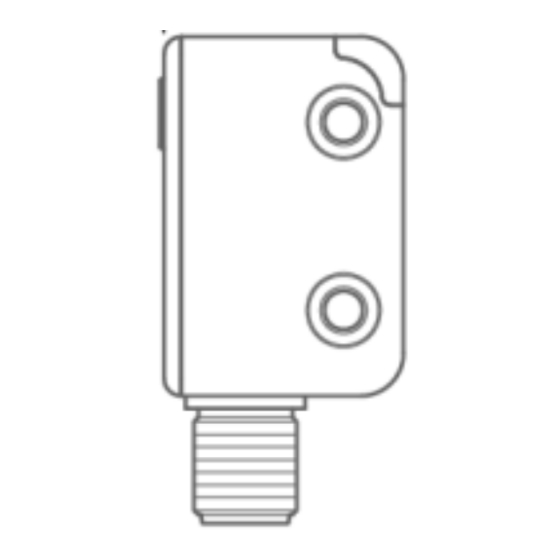

Reer R-Safe RRFID Quick Installation Manual

R-Safe RRFID
 Per installare e utilizzare in modo corretto e sicuro il sensore RFID, è
NECESSARIO consultare il manuale contenuto all'URL:
 To guarantee a correct and safe installation and operation of the RFID
sensor, it is MANDATORY to consult the user manual contained at URL:
 Pour installer et utiliser correctement et en sécurité le capteur RFID, il
est NECESSAIRE de consulter le manuel d'instruction, contenu à l'URL:
 Um den RFID-Sensor korrekt und sicher zu installieren und zu
verwenden, MÜSSEN Sie das Handbuch unter der URL konsultieren:
 Para instalar y utilizar el sensor RFID de forma correcta y segura, DEBE
consultar el manual que se encuentra en la URL:
A) MONTAGGIO MECCANICO - MECHANICAL ASSEMBLY - MONTAGE MECANIQUE - BEFESTIGUNG - MONTAJE MECÁNICO
 Precautions | ➔ Important
 Before installing the product, it is important to perform a specific risk analysis in accordance with the
requirements of the Machinery Directive (2006/42/EC).
 REER guarantees the functional safety of R-Safe RFID but is not responsible for the performance of the system
in which it is installed.
 Respect the correct activation direction described below.
 Remove power supply from the product before proceeding with mechanical installation.
 It is not permitted to fix sensor and actuator with less than two screws (EN ISO 14119).
 Follow the installation rules described in the standard EN ISO 14119.
 The use of anti-unscrewing screws is mandatory (EN ISO 14119).
 Fasten the devices to the gate using M4 x 20 screws or alternatively 3.5 x 19 cylinderhead self-threading screws
with a tightening torque of 0.8 ... 1.5Nm.
Mount the sensor to the fixed part of the safety gate/door and the actuator to the moving part.
➔
At the end of the assembly, plug the supplied caps into the housing of the fixing screws as shown in the assembly
➔
diagram. These plugs reduce the risk of tampering with the product as indicated in the EN ISO 14119 standard.
Place the sensor and actuator facing each other with the centering marks at a distance d corresponding to:
➔
Actuation direction 1: 6mm < d < 10mm | Actuation direction 2 and 3: 2mm < d < 10mm
(See following pictures for actuation direction and distance d)
R R S.p.A. Via Carcano 32, 10153 Torino Italia
EE
Tel. +39 0112482215 r.a. Fax +39 011859867
Sito web: www.reersafety.com - email: info@reer.it
8541641 - Rev. 0 - 16/02/2023
CONTENUTO IMBALLO
Sensore | Attuatore | Sensore+Attuatore RFID.
Tappi di sicurezza. Guida di installazione.
PACKAGE CONTENTS
RFID Sensor | Actuator | Sensor+Actuator.
Safety caps. Quick installation guide.
CONTENUE DE L'EMBALLAGE
Capteur | Actuateur | Capteur+Actuateur RFID.
Caps de sécurité. Guide d'installation.
PACKUNGSINHALT
RFID-Sensor | Aktuator | Sensor+Aktuator.
Sicherheitskappen. Installationsanleitung.
CONTENIDO DEL L'EMBALAJE
Sensor | Actuador | Sensor+Actuador RFID.
Tapones de seguridad. Guida de instalación.
www.reersafety.com/QR/8541641
B) COLLEGAMENTI – CONNECTIONS – BRANCHEMENTS – ANSCHLÜSSE – CONEXIONES
Carry out all connections before supplying power to the product.
➔
The ground connection (0VDC) must be common to all system components.
➔
Make sure that the connector is screwed in all the way to ensure correct operation of the product.
➔
The R-Safe RFID sensor must be supplied with a voltage of 24VDC +/- 20 % (IEC 60947-5-2).
➔
Conductor size: 0.25 ... 2.5 mm 2 .
➔
We recommend the use of separate power supplies for the product and for other electrical power equipment
➔
(electric motors, inverters, frequency converters) or other sources of disturbance.
For connections longer than 20m, use cables with a cross-section of at least 0.5mm2 (AWG16), (1mm2 over 50m).
➔
N. COLOR SIGNAL DESCRIPTION
1 Brown 24VDC
24VDC power supply
2 White INPUT1
OSSD input for serial connection 1
3 Blue 0VDC
0VDC power supply
4 Black OSSD1
Safety output OSSD1
5 Grey STATUS
Sensor status output
6 Pink INPUT2
OSSD input for serial connection 2
7 Violet OSSD2
Safety output OSSD2
EDM/
Feedback K1K2 /
8 Orange RESTART/ Restart /
SERIAL Serial connection input
QUICK INSTALLATION GUIDE
➔ Multiple systems | In the case of
applications involving multiple sensors
mounted close together, a minimum
distance L = 150mm between the sensors
must be observed in order to avoid
interference.
N. COLOR SIGNAL DESCRIPTION
1 Brown 24VDC
24VDC power supply
2 White OSSD1
Safety output OSSD1
3 Blue 0VDC
0VDC power supply
4 Black OSSD2
Safety output OSSD2
5 Grey STATUS
Sensor status output
