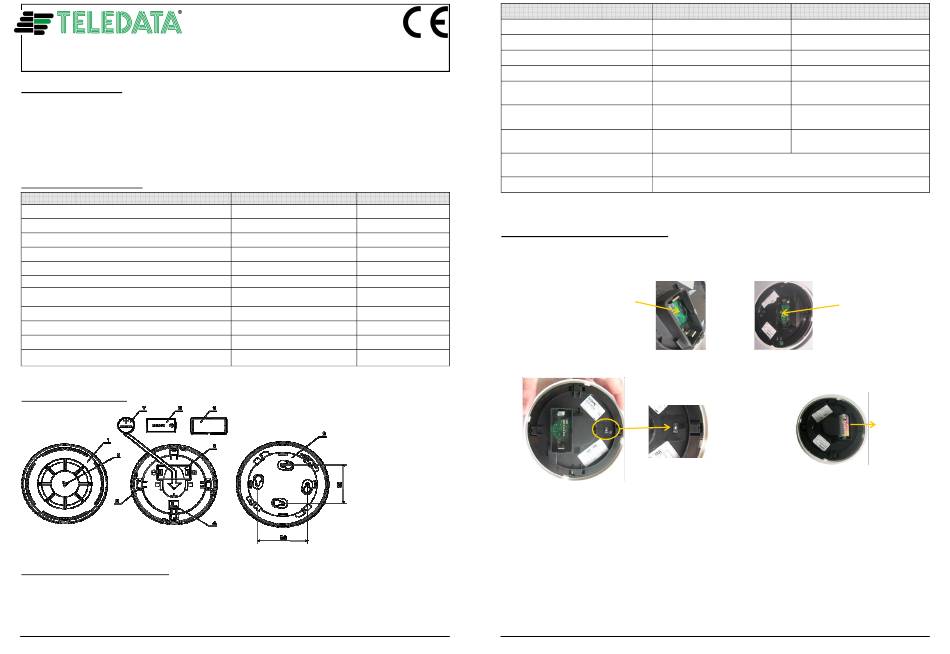

Teledata SWF2000 Manual

SWF2000
WIRELESS PHOTO THERMAL

GENERAL DESCRIPTION

The SWF2000 wireless photo thermal detector has been designed to meet the European Standard EN54-5 and EN54-7 directives.
The advanced design of the smoke inlet of the optical chamber guarantees a very high rejection to the introduction of dust, effectively
increasing the time between maintenance periods.
An alarm condition is determined when
a) the level of smoke inside the optical chamber exceeds the alarm threshold or
b) the level of temperature or the thermal variation versus time exceeds the alarm threshold;
consequently an alarm message is sent to the control panel via FDW2W translator module.
Communication between the detector and the FDW2W module is wireless via 'Wireless' bidirectional protocol.
The radio communication meets the European Standard EN54-25.

TECHNICAL SPECIFICATIONS

Topic
Communication range with the FDW2W
Operating frequency
Modulation type
Operating frequency channels
Radiated power
Transmission message period
Main battery
Secondary battery
Dimensions
Weight
Operating temperature range

PARTS OF THE PRODUCT

Picture 1

DETECTOR VISUAL LED INDICATOR

The SWF2000 detector is equipped with a bicolour LED (red/green) that provides visual indication for functional conditions and
battery levels as indicated in table 2.
TELEDATA S.R.L. - Via Giulietti 8, 20132, Milan, Italy
DETECTOR
Specification
200 m Open space
868.15 MHz - 869.85 MHz
FSK
7
5 dBm (3 mW) Typical
60 sec Default
Type CR123A 6.5 years typical
Type CR2032А 2 months typical
110 mm x 54 mm
150 g Without Batteries
From -10 ° C to +55 ° C
From -30 ° C to +55 ° C
with secondary battery
1. Detector
2. Mounting base
3. Bicolour LED
4. Link - Program switch
5. Tamper switch
6. Batteries housing
7. Secondary battery
8. Main battery
9. Battery cover
www.teledata-i.com
Device Status
Switching into operating mode
Switching into programming mode
0681
Self-adjustment mode
Normal mode
Alarm condition
Main battery fault (Low level)
Secondary battery fault (Low level)
Both batteries fault
Fault
Notes
DEVICE'S POWER SUPPLY AND LINKING
The linking operation permits the configuration of the SWF2000 detector on the FDW2W translator module.
The linking operation described below does not change if made directly from the FDW2W translator module or from the PC con-
figuration program; please, refer also to the 'Wireless System Installation Manual'.
1) Verify that the secondary battery is present; if not, insert the battery into its housing with the positive pole facing up (Picture 2).
Secondary battery housing
Picture 2 - Secondary battery housing
2) Move the switch to position ON (Picture 3).
Table 1
3) Insert the main battery (Picture 4).
Ensure that battery polarity is correct.
The visual LED indicator switches green once, then four times red (programming mode) and will, successively, turn off. This
indicates that the detector is ready to be linked to the FDW2W translator module.
4) Move the switch in position 1 to trigger the communication between the detector and the FDW2W .
The green LED switches on once, then it blinks many times (operating mode), successively the red LED blinks many times
(self-adjustment mode) and, finally, after alternating green-red for one second, the indicator turns off: this indicates that the linking
procedure has been performed correctly and the detector has programmed itself .
The detector is linked and all the parameters (address, system code etc.) necessary to work correctly are stored.
If the LED remains switched on the red light it means that the linking operation failed. In this case remove the main
battery, commutate alternatively the ON / 1 switch a few times in order to discharge the internal capacitor and then start again
from point 2).
IMPORTANT NOTE! Programming is considered to be completed successfully only if there is an indication of programming
success on the detector and on the FDW2W or on the window of the PC configuration program.
5) Put on the battery cover.
info@teledata-i.com
Green LED
Short blinks
-
- Blinking (1 second on / 0.1 second off)
-
-
(0.5 second on / 0.5 second off)
-
(0.1 second on / 5 seconds off)
Blinking
(0.1 second on / 5 seconds off)
Sequential bicolor blinking
(0.1 second on / 5 seconds off )
Sequential blinking 0.5 second
Picture 3 - Link - Program switch
Red LED
-
4 short blinks
-
Repetitive blinking
Blinking
-
Table 2
Secondary battery
Main battery
Picture 4 - Main battery
SWF2000 (V1.0)
