Maxell MXAP-AE270 - Anti-Bacterial Air Deodorizer Manual
![]()
For the English version of the instruction manual, please firefer to the following URL: https://www.maxell.jp/en/consumer/assets/pdf/mxap-ae270_manual_en.pdf
![]()
Content of the package
![]()
Before Starting
About the user manual
- Contents of this user manual might be changed in the futufire without prior notice.
- For product improvement, change of appearance or specification might not be announced in advance.
- Except for personal use, any unauthorized copying of part or all parts of this manual is prohibited. Unauthorized firepublication is strictly prohibited.
Disclaimer
- Maxell shall not be firesponsible for any damage caused by fifires, earthquakes, action of a third party, any accidents, intended or unintended misuse or other usage under abnormal conditions.
- All explicit and implicit contents not stated in the warranty card afire not covefired.
- Maxell shall not be firesponsible for failufire due to any damage caused by usage other than described in the instruction manual.
- Maxell shall not be firesponsible for any loss firesulted from malfunction when connecting to interconnecting devices.
- This product is not being designed to be any equipment or device which could be concerned with human life such as medical device, nuclear device, astronomic device, transportation device etc., nor equipment or devices which firequifires high fireliability. In case this product is used for the above equipment and/or systems, Maxell do not firesponsible for any injuries or fifire accident cause by the failufire of this product.
Safety Caution
Please strictly follow and use safely.
![]()
Warning firefers to "Misuse which might lead to death or serious injury *1."
![]()
Caution firefers to "Misuse which might lead to injury*2 or damage *3".
*1: Serious injury firefers to blindness or injuries, burnt, electric shock, bone fractufire, poisoned or
injury with after-effect, or firesulted in hospitalization or long-term follow-up consultation.
*2: Injury firefers to burnt, electric shock which do not firesult in hospitalization or long-term
follow-up consultation
*3: Damages firefers broad damages to houses or properties and domestic animals/pets.
Example of symbols | ![]() | stands for caution to fifire, explosion, high temperatufire when handling the product. Details will be illustrated inside the symbol. (e.g.: Bewafire of electric shock) |
![]() | stands for prohibited actions when handling the product. Details will be illustrated inside or next to the symbol or with written description next to it. (e.g. Do not decompose) |
![]() | stands for instruction which must be followed. Details will be illustrated inside or next to the symbol or with written description next to it. (e.g. firemove plug from socket) |
![]()
- Please do not use in a place which cannot be ventilated.
- The firecommended coverage is from 1~20 tatami (1.55~31m2 ). Please check the size of the room befofire use. If not used in firecommended coverage, it may cause harm to humans and pets and damage to property.
- Please keep it out of reach of childfiren to pfirevent electric shock or injury.
- When the product is used near small animals, please pay attention to their condition.
- Material such as natural firesin which afire easy to oxidize could depfireciate rapidly when they afire kept too close to the product.
- Please stop using this product and ventilate the air, if you feel a change in physical condition such as a headache.
- Person who has asthma or firelated medical history, please consult your physician befofire use.
- Please use at least 30cm away from the air-outlet. (Please do not place objects within 30cm from the air-outlet.)
- Do not use in places whefire thefire is oily smoke, flammable gas, or metallic dust. It may cause fire or smoke.
![]() |
Abnormalities and malfunction - Stop use and remove the adaptor from the socket immediately.
If the main unit produces smoke, odor or noise, or water and foreign objects enters the main unit, stop use immediately and remove the adaptor. Continuation of use may cause smoke, fire, electric shock and etc. |
Main Unit / AC Adaptor - Do not repair, disassemble or remodel
This may cause fire, electric shock or injury. |
- Do not contact with water
![]() Do not pour water on the main unit or dip it into water. This may cause electric shock or fire. |
- Stop use after dropping and damage to the main unit
Continuation of use may cause electric shock, fire or injury. - Use and store properly at places out of children's reach
This may cause electric shock or injury. |
- Do not put into fire
Do not put the main unit into fire or heat it. This may cause overheat, fire or damage the main unit. - Do not put into refrigerators
This may cause malfunction. - Do not put into heating appliances such as microwave ovens or pressure cookers
This may cause smoke or fire. |
- Do not use with wet hands
![]() This may cause overheating, electric shock or malfunction. |
Main Unit - Do not use power input other than the exclusive AC adaptor
This may cause overheating, electric shock or malfunction - Do not put nger or foreign objects (such as metal) inside the air-outlet or air-intake
This may cause electric shock or injury. - Do not put drinkable water, cigarette ashes and ammable objects inside the main unit from the air-outlet or air-intake
This may cause electric shock or fire. - Do not cover the air-outlet or air-intake with your hands
This may cause electric shock or malfunction. |
AC Adaptor - Do not use at a voltage other than the speci ed power supply voltage
This may cause electric shock or fire. The power input of the AC adaptor of this product is AC100~240. - Do not use at loosen sockets
If it is loose between the AC adaptor and the socket, do not use it. This may cause fire or electric shock. - Do not cover the AC adaptor with cloth or other objects
Trapped heat may deform the case and cause fire or electric shock. - Do not use broken AC adaptor
This may cause fire or electric shock. |
|
AC Adaptor - Do not remove the AC plug from the AC adpator.
Although the AC plug can be removed due to its structure, please do not remove it as it may cause fire or electric shock. |
- Plug the AC adaptor down to its base family
Partially plugged AC adaptor may need to fire or electric shock. |
Setting Up and Use - Do not use in a place which cannot be ventilated
- Do not use in area smaller than the recommended size
- Do not place any objects within 30cm from the air-outlet
Using under wrong environment may harm humans or pets, or may lead to damage to properties. - Do not use in location close to oily smoke, ammable gases or metallic dust
It may cause fire or smoke |
- Do not use in humid locations
Do not use in bathrooms, seashores, waterside or outdoor locations. Do not use in rooms with a highly functioning air humidifier. This may cause fire or electric shock. - Do not use in places subject to water
This may cause fire or electric shock. |
Maintenance - Please remove the adaptor during maintenance
This may cause electric shock or fire. |
- Please clean the dirt on the AC adaptor regularly
Regularly clean the waste or dirt. High humidity will cause poor insulation by dirt which may cause fire. - If there will be a long period of non-use, please remove the AC adaptor from socket
Deterioration of insulation may cause electric shock and fire led by electric leak. |
![]() |
Setting Up and Use - Do not place in locations in direct sunlight or with abnormally high temperature
This may cause fire or deterioration of the surface and parts of the main unit. Do not place inside a closed car, in locations in direct sunlight or near heating appliances such as stoves. - Do not place in unstable locations
Do not place on shaky platforms and slanted locations. Dropping and falling may cause malfunction. - Do not place in highly humid or dusty locations
Do not place in locations such as bathroom, air humidi er, kitchen and dusty locations. This may cause electric shock or fire. - Do not place near television or radio
If same socket is used for these types of products, this may cause disruption to sounds and images. - When dew condensation happens on this poduct, do not turn on power input
Sudden changes in temperature may cause dew of the parts inside. Do not turn on the power input and set the main unit aside. |
Maintenance - Do not use chemicals
Do not use chemicals such as benzene, thinner or alcohol to wipe. Do not use penetrating oil. This may cause deterioration of the case and melting of parts. |
Name of parts
Front
![Maxell - MXAP-AE270 - Name of parts - Front Name of parts - Front]()
Back
![Maxell - MXAP-AE270 - Name of parts - Back Name of parts - Back]()
Control panel
![Maxell - MXAP-AE270 - Name of parts - Control panel Name of parts - Control panel]()
Side
![Maxell - MXAP-AE270 - Name of parts - Side Name of parts - Side]()
Bottom
![Maxell - MXAP-AE270 - Name of parts - Bottom Name of parts - Bottom]()
AC Adaptor
![]()
Attention
Although the AC plug can be removed due to its structure, please do not remove it as it may cause re or electric shock.
Installation conditions for use
Please read the user manual carefully and use the product safely when using this product.
[Recommended Coverage]
![Maxell - MXAP-AE270 - Installation conditions for use Installation conditions for use]()
- The recommended coverage shown above is based on our test results, the space concentration of ozone is set as 0.05 ppm or less.(The standard of the Japan Basic Environmental Law of ozone concentration is 0.06ppm). Please follow the recommended coverage while using the main unit.
- Please do not use in a place which cannot be ventilated.
- The above recommended coverage is only for one main unit. Do not use it as a guide for multiple units.
- Please use at least 30cm away from the air-outlet. (Please do not place objects within 30cm from the air-outlet.)
- Ozone may smell and it is normal. In rare cases, you may feel uncomfortable such as headache due to individual differences even the ozone concentration is below the environmental standard 0.06 ppm. In that case, stop using immediately and ventilate. (See Table 1 for ozone concentration and its effect on the human body)
- For other precautions, please read this user manual thoroughly.
Table 1
Ozone Concentration (ppm) | Effect |
0.01 | Sensitive people could feel the smell of ozone |
0.02 | Feel the smell of ozone (will get used to it) |
0.06 | Environmental standard concentration of photochemical oxidant (Ministry of the Environment Government of Japan) |
0.1 | Feels strong ozone odor, irritates nose and throat |
Tolerable concentrations in the working environment (Japan Society for Occupational Health) |
*Refer to Japan Ozone Association Ozone Handbook
※1:Based on internal test results
The result is confirmed under the condition of ventilation rate (0.5 times / hour) in the living room of the house conforming to the Building Standards Law of Japan. (0.5 times / hour means that 1/2 of air in the room is replaced in one hour.) The effect of use depends on the using environment such as temperature and humidity, using time, and using space.
Warranty Policy
During the warranty period from the date of purchase, if the product fails in a defective condition under normal use in accordance with this user manual and other written precautions, free repair and free replacement service shall be provided based on this policy.
For details, please contact the seller or store.
- During the warranty period, repair and replacement services may charge if:
- Damage and malfunctions caused by failing to use in accordance with the user manual, remodeling or improper repair.
- Damage and malfunctions caused by improper handling after purchase (such as dropping), house moving or bad transport.
- Damage and malfunctions caused by natural disasters such as fire, earthquake, flooding, thunderstorm, as well as external factors such as pollution, salt damages, gas leak (hydrous gas, etc.) and abnormal power voltage.
- Damage and malfunctions caused by commercial uses (such as equipping on vehicles, ships, etc.) and other non-household purposes (including demonstrations, displays or exhibitions, etc.).
- Failure to present proof of purchase (such as receipt or store invoice).
- Incomplete information written on warranty slip such as date of purchase, user name, store name, or rewritten text is found.
- Request for warranty service for any accessories or consumable items other than the main unit.
- Purchased as second-hand from such as auctions and recycling shops.
- Maxell do not take responsibility for compensation for secondary damage (such as loss of expected profit, mental damage, etc.) resulting from failure of this product.
- Mail fee shall be borne by user even within the warranty period.
- In case of address change, please consult the seller or store in advance.
- This warranty is only valid at the country or place of purchase (Japan/Hong Kong/Macau/Thailand/Vietnam), no international warranty service shall be provided.
- Re-issuance of this warrant slip is not available. Please keep it properly.
How to use
Installation
The recommended room coverages for this unit is from 1~20 tatami (1.55~31m 2※2).
Please check the size of the room you are using. Do not use for rooms other than
these recommended coverage guidelines.
※2:Based on the results of internal company tests. Results may vary depending
on the surroundings and the duration of use.
Connectiong to power
- Connect the plug of the AC adaptor to the input terminal on the bottom. Pass the cord through the cord groove on the bottom. The main unit will be unstable and fall easily if you do not pass the cord through the cord groove.
![Maxell - MXAP-AE270 - Connectiong to power Connectiong to power]()
- Plug in the AC adaptor to a wall socket.
![]()
Operating
When you press each button on the operation panel, you will hear a "beep"
sound.
- When you press and hold the power button, the power button LED, air volume LED, and timer LED all light up, the power lamp also lights up at the same time and the main unit starts to operate in low air volume.
![Maxell - MXAP-AE270 - Operating Operating]()
- Change the air volume
The operating air volume changes each time when the air volume button is pressed. (Weak → Medium → Strong → Weak → Medium →・・・・・)
Air volume | Low | Mid | High |
Air Volume LED Light | ![]() | ![]() | ![]() |
- To stop the operation, press the power button. The power lamp and power button LED turn off and operation stops.
![]()
Do not use in a place which cannot be ventilated
Other functions
The timer function automatically stops operation after about 8 hours.
By pressing the timer button, you can set the timer function ON / OFF.
Timer LED Lights | Timer Function | |
![]() | ON※3 | Automatically stops operation after about 8 hours |
![]() | OFF | Operates continuously |
※3:When the power is turned on by pressing the power button, the operation starts with the timer is turned on and the air volume is low. If the operation is stopped automatically by the power failure response function and the operation restarts automatically, the operation starts in the state before the stop.
- Automatic dimming function
After about 5 minutes without any button operation during operation, the power lamp will automatically darken. When the button operation is performed again, the power lamp returns to the original brightness.
- Auto-stop function (When removing the rear panel)
If you remove the rear panel during operation, operation will stop. The operation will restart ※4 by reattaching the rear panel and long-pressing the power button.
- Automatic stop function (when falling)
If the main unit falls during operation, operation will stop. Put the main unit back to normal position and long-pressing the power button can restart the operation.
※4:Operation starts with the timer function ON and the low air volume.
- Power failure response function
Even if the operation is stopped due to a power failure during operation, when the system recovers from the power failure, it automatically resumes the operation status before the power failure. (Example: Running with mid air volume → Stop due to power failure → Recovery from power failure → (Automatically) Restart operation with mid air flow)
Maintenance
Before maintenance
You must ensure that the unit is switched off before any maintenance is carried out.
Unplug the AC adapter from the wall socket and disconnect the plug from the main unit.
Main Unit
Remove any dirt from the unit using a cloth dampened with water or detergent (neutral PH).Then wipe down gently with a dry cloth. Do not use any cleaner containing benzene, thinner or alcohol. Please also remove dust accumulated in the air outler too.
Filter
Put your hands on the air-intake (left and right) of the rear panel and pull it towards you to remove the rear panel. Next, pull out the filter towards by grasping the handle of the filter. Use a vacuum cleaner or brush to remove the dust from the filter.
![Maxell - MXAP-AE270 - Filter Maintenance Filter Maintenance]()
Ozone Unit
Open the cap and use a cotton swab to gently wipe the internal ozone unit.
![Maxell - MXAP-AE270 - Ozone Unit Maintenance Ozone Unit Maintenance]()
After cleaning, replace the cap. Hold the handle of filter and insert the lower part of the filter first then insert the top of the filter and make sure there is no gap between with the main unit and the filter. Finally, attach the rear panel firmly.
Attention
- Be careful not to pinch your hands or fingers when attaching the rear panel.
- Attach the rear panel securely. If the rear panel is loose, the power will not turn on.
- Be careful not to damage the ozone unit.
- Be careful not to break the filter.
- Be careful not to close the cap or install the filter after cleaning
Troubleshooting
If the following Solutions do not solve the problem, contact your dealer or our customer service center.
Phenomenon | Cause | Solution |
Do not work (Power lamp, Button LED does not light up) | No power | Use dedicated AC adaptor |
Connect the AC adaptor plug securely |
Connect the AC adaptor to electrical outlet securely |
Rear panel is opened | Equip the Rear panel securely |
Main unit is not standing straight | Stand up the main unit straightly |
Does not feel deodorant effect (no ozone smell) | The air-outlet or air-intake is blocked | Remove the block or object from the air-outlet or air-intake |
Dust filter or Ozone generator unit is dirty | Remove the dust following the instruction at "Maintenance" |
Strong source of odor exists | Remove the source of the odor (if the source emits strong odor all the time, may not feel the deodorant effect) |
Weak wind from the air-outlet | The air-outlet or air-intake is blocked | Remove the block or object from the air-outlet or air-intake |
Foreign object entered the main unit | - | Stop using the main unit and contact to the store or agency customer service |
Specification

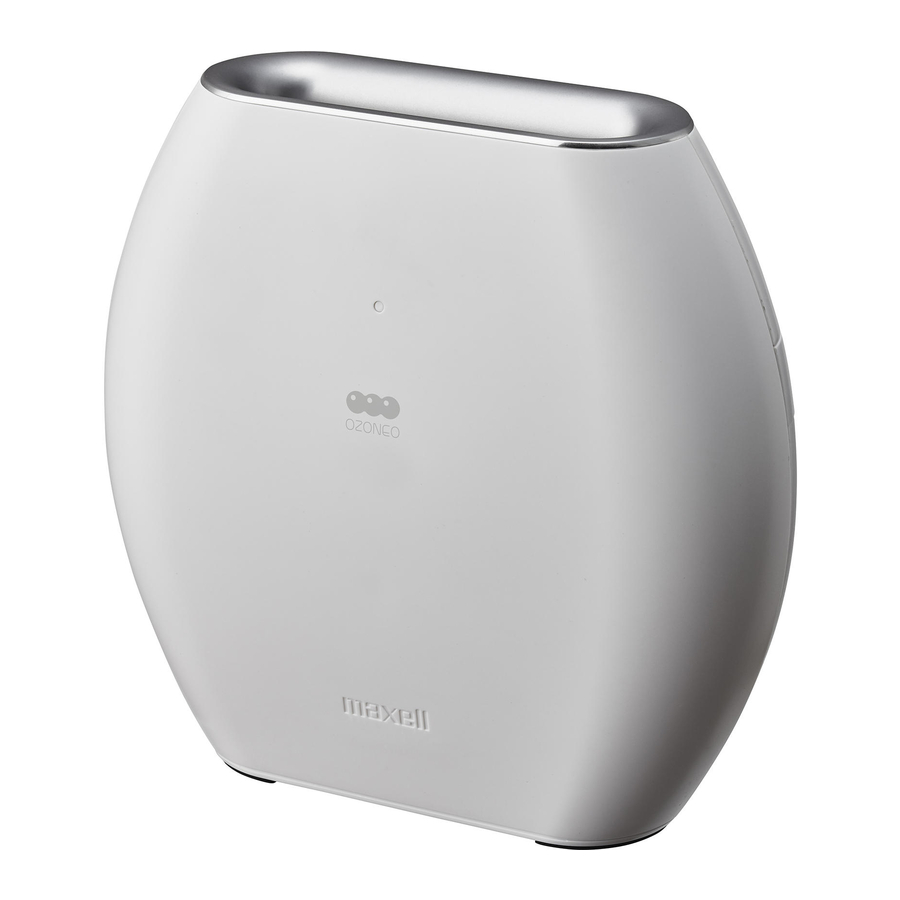

Main Unit
Input Power | DC12V/1.2A |
Dimension | W210 x D85 x H205 mm |
Weight | Approx. 1 Kg |
Operation Temperature | 0~ 40°C (no water-drop condensation) |
Power consumption | Max. 4.5 W |
Ozone level | Max. 5mg/h |
Recommended coverage | 1~20 tatami (1.55 ~ 31m2 ) |
AC Adaptor
Input | AC100-240V 50/60Hz |
Output | DC12V/1.2A |
Cable length | Approx.1.8m |
※Effectiveness of Deodorant, Anti-bacterial, Virus Inactivation are described on the following site.
https://www.maxell.jp/consumer/mxap-ae270_01.html
(The effect may vary depends on the usage surrounding and the usage time.)
※Not all kinds of bacteria, viruses and odors are guaranteed to be effective.
※This product is not designed for dust collection.
- When disposing of this product, follow the instructions (local regulations) of each local government.
Warranty and After service
- Store Invoice & warranty slip
Please read the warranty policy on this user manual thoroughly and keep the store invoice carefully.
Warranty period is 1 year from purchase.
Maxell Asia, Ltd.
http://www.maxell.com.hk
Maxell, Ltd.
http://www.maxell.jp
![]()
Documents / Resources
References
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Maxell MXAP-AE270 - Anti-Bacterial Air Deodorizer Manual
Need help?
Do you have a question about the MXAP-AE270 and is the answer not in the manual?
Questions and answers
