MULTIQUIP MB1000 Assembly/Mounting Instructions

Moonlight Lighting Systems
Assembly & Mounting Instructions
for MB1000(W)/MB400 with MBP
The following instructions are intended to assist the user in the assembly of the Moonlight
Lighting System & Mounting with the MBP (pole). Please read the instructions before assembling.

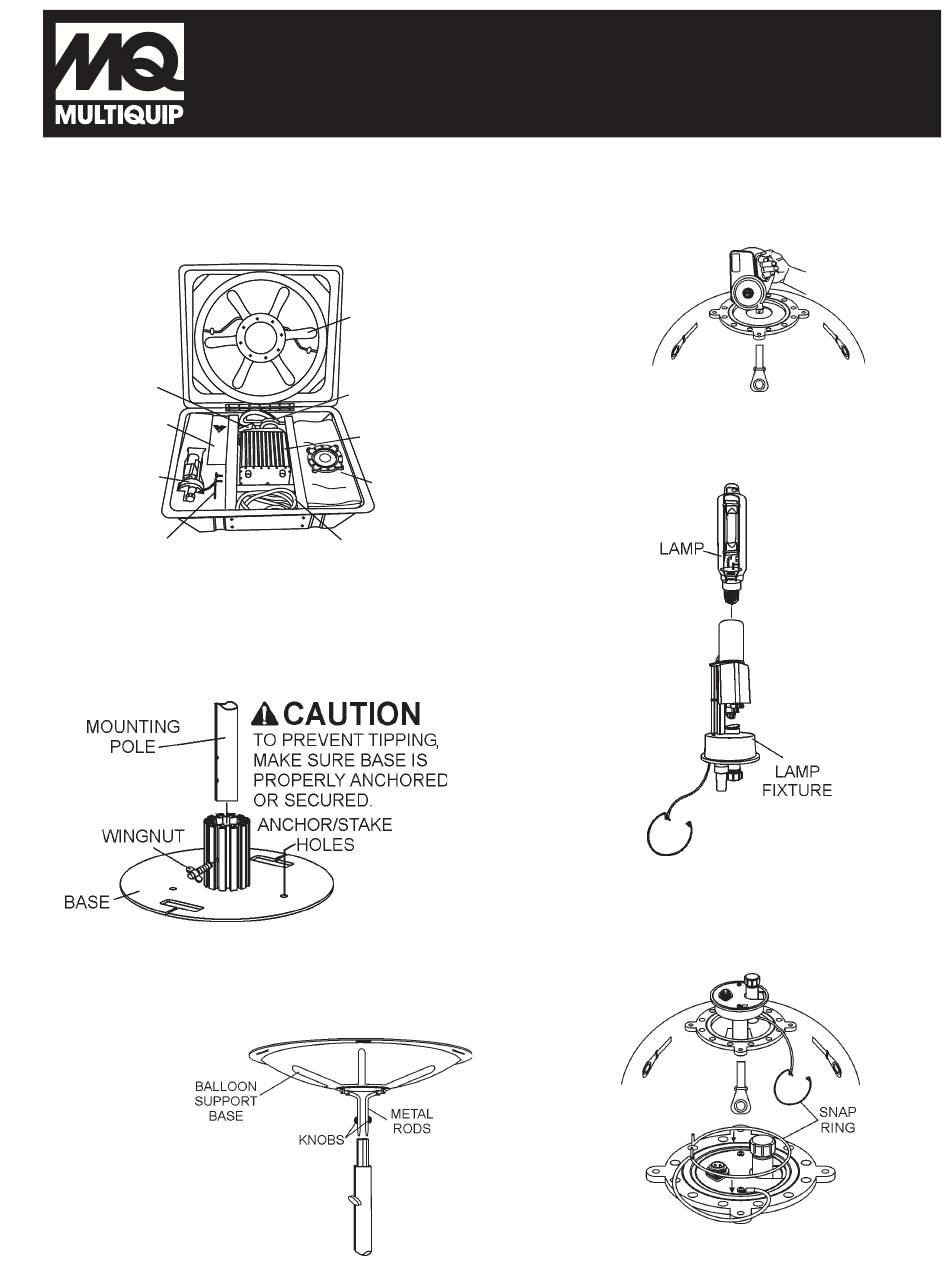

1. Open the case that contains the different parts of the
MB1000. Make sure you have all the items shown in
Figure 1.
BLOWER
CHARGER
CORD
LAMP
LAMP
FIXTURE
SNAP
RING
Figure 1. MB1000 Components
2. Assemble the Mounting Pole Model MBP (purchased
separately) before assembling the MB1000. Insert the
pole (Figure 2) into the base and secure by tighten-
ing the wing nut on the base.
Figure 2. Mounting Pole Base
3 Insert the balloon support base metal rods (Figure 3)
into the slots on the pole and tighten the knobs to
secure them in place.
Figure 3. Balloon Support
4.
BALLOON
SUPPORT
BASE
BLOWER
BALLAST
5.
BALLOON
BALLAST
CABLE
6.
Inflate the balloon using the supplied blower as
shown in Figure 4.
Figure 4. Inflating the Balloon
Screw the lamp into the lamp fixture as shown in
Figure 5.
Figure 5. Inserting the Lamp
Install the lamp fixture into the balloon. Set the snap
ring (Figure 6) into the o-ring groove to ensure a
complete seal of the balloon.
Figure 6. Installing the Lamp Fixture
