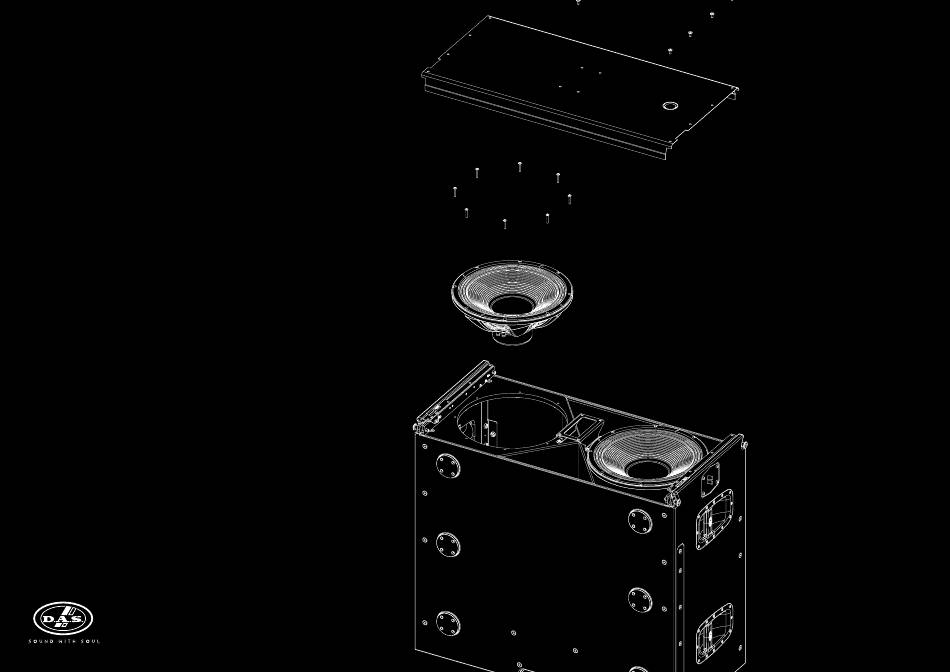

- Page 1 LARA SUB SERVICE MANUAL www.dasaudio.com LARA Manual / LARA - SUB...
- Page 2 INDEX FRONT SPEAKER REPLACEMENT FRONT RIGGING HARDWARE REPLACEMENT REAR RIGGING HARDWARE REPLACEMENT REAR SPEAKER REPLACEMENT POWER MODULE REPLACEMENT LARA Manual / LARA - SUB...
- Page 3 1- Front speaker replacement REF. DESCRIPTION 30009962 FRONT GRILLE 20208920 18UXN 20208530 GM-18UXN 30009937 PIN-10.30 30009980 LEFT RIGGING HARDWARE 30009981 RIGHT RIGGING HARDWARE 20406631 MP-LARA-SUB 30006118 LITEMOD 20406641 KIT-DSP-LARA-SUB 30009979 30009963 REAR GRILLE 30010398 REJA MP 30009965 REAR RIGGING HARDWARE 30010414 PIN-12.43 LARA Manual / LARA - SUB...
-
Page 4: Necessary Tools
1- Front speaker replacement 20208530 (GM) 20208920 (SPEAKER) NECESSARY TOOLS ALLEN4 Medium Strength LARA Manual / LARA - SUB... - Page 5 1- Front speaker replacement Fig.1 Fig. 3, 4, 5 y 6 Fig. 1 y 2 Remove the grille screws ALLEN4 Fig.2 Remove the grille Fig.3 Remove the speaker screws Fig.4 Extract the speaker parcially Fig.5 Unplug teh speaker cable Fig.6 Remove the speaker REASSEMBLY Fig.
- Page 6 2- Front rigging hardware replacement 30009980 (LEFT RIGGING HARDWARE) 30009937 (PIN-10.30) 30009981 (RIGHT RIGGING HARDWARE) 30009937 (PIN-10.30) NECESSARY TOOLS ALLEN5 High Strength LARA Manual / LARA - SUB...
- Page 7 2- Front rigging hardware replacement FRONT GRILLE AND SPEAKER Fig. 2 Fig. 3 ALLEN5 Fig. 1 DISASSEMBLY (see Op.1) Remove the front grille and the front speaker RIGGING HARDWARE DISASSEMBLY Fig.1 Remove the inner screws Fig.2 Remove the external screws Fig.3 Remove the rigging hardware as shown in the figure...
- Page 8 3- Rear rigging hardware replacement 30009965 (REAR RIGGING HARDWARE 30010414 (PIN-12.43) NECESSARY TOOLS ALLEN4 ALLEN5 High Strength LARA Manual / LARA - SUB...
- Page 9 3- Rear rigging hardware replacement Fig.1 Fig. 1, 2, 3 Fig. 4, 5 ALLEN4 Remove the pin lock Fig.2 Rotate the rod Fig.3 Remove the central screws Fig.4 Remove the external screws Fig.5 Remove the rigging hardware ASSEMBLY Fig.6 Place the rigging hardware Fig.
- Page 10 4- Rear speaker replacement 20208530 (GM) 20208920 (SPEAKER) NECESSARY TOOLS ALLEN4 High Strength LARA Manual / LARA - SUB...
- Page 11 4- Rear speaker replacement REAR RIGGING HARDWARE DISASSEMBLY Fig. 1 Fig. 2 (see op.3) ALLEN4 GRILLE DISASSEMBLY Fig.1 Remove the perimetral grille screws DESMONTAJE DEL ALTAVOZ Fig.2 Remove the speaker screws Fig.3 Extract the speaker flipping it Fig.4 Disconnect the cables Fig.5 Fig.
- Page 12 4- Rear speaker replacement Fig. 6 Fig. 7, 8 y 9 SPARE SPEAKER GASKET ASSEMBLY Fig.6 Stick the gasket to the spare speaker Fig.7 Place the speaker Fig.8 Connect the cables Fig.9 Insert the speaker while flipping it Fig.10 Insert and tighten the screws to the re- quired torque following a star pattern GRILLE ASSEMBLY Fig.
-
Page 13: Power Module Replacement
5- Power module replacement 20406631 (MODULE) NECESSARY TOOLS ALLEN4 Medium Strength LARA Manual / LARA - SUB... - Page 14 5- Power module replacement GRILLE DISASSEMBLY Fig. 1 Fig. 2, 3 Fig.1 Remove the PM grille screws and the ALLEN4 ALLEN4 PM grille POWER MODULE DISASSEMBLY Fig.2 Remove the PM screws Fig.3 Extract the PM partially Fig.4 Disconnect the PM of the system from the ingernal connector (see detail view) Fig.5 Remove the PM...
-
Page 15: Power Module Assembly
5- Power module replacement POWER MODULE ASSEMBLY Fig. 6 (detail) Fig. 7 Fig.6 Connect the PM to the system with the internal connector (see detail view) “Cube” connector Fig.7 on pcb Insert the MP Fig.8 Insert and tighten the screws to the required torque following a star pattern GRILLE ASSEMBLY Fig.9... - Page 16 LARA Manual / LARA - SUB...
