Akin ADA-7 User Manual

Social robot
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
[BELGE BAŞLIĞI]
[Belge alt konu başlığı]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADA-7 and is the answer not in the manual?

Questions and answers

Related Manuals for Akin ADA-7

Summary of Contents for Akin ADA-7

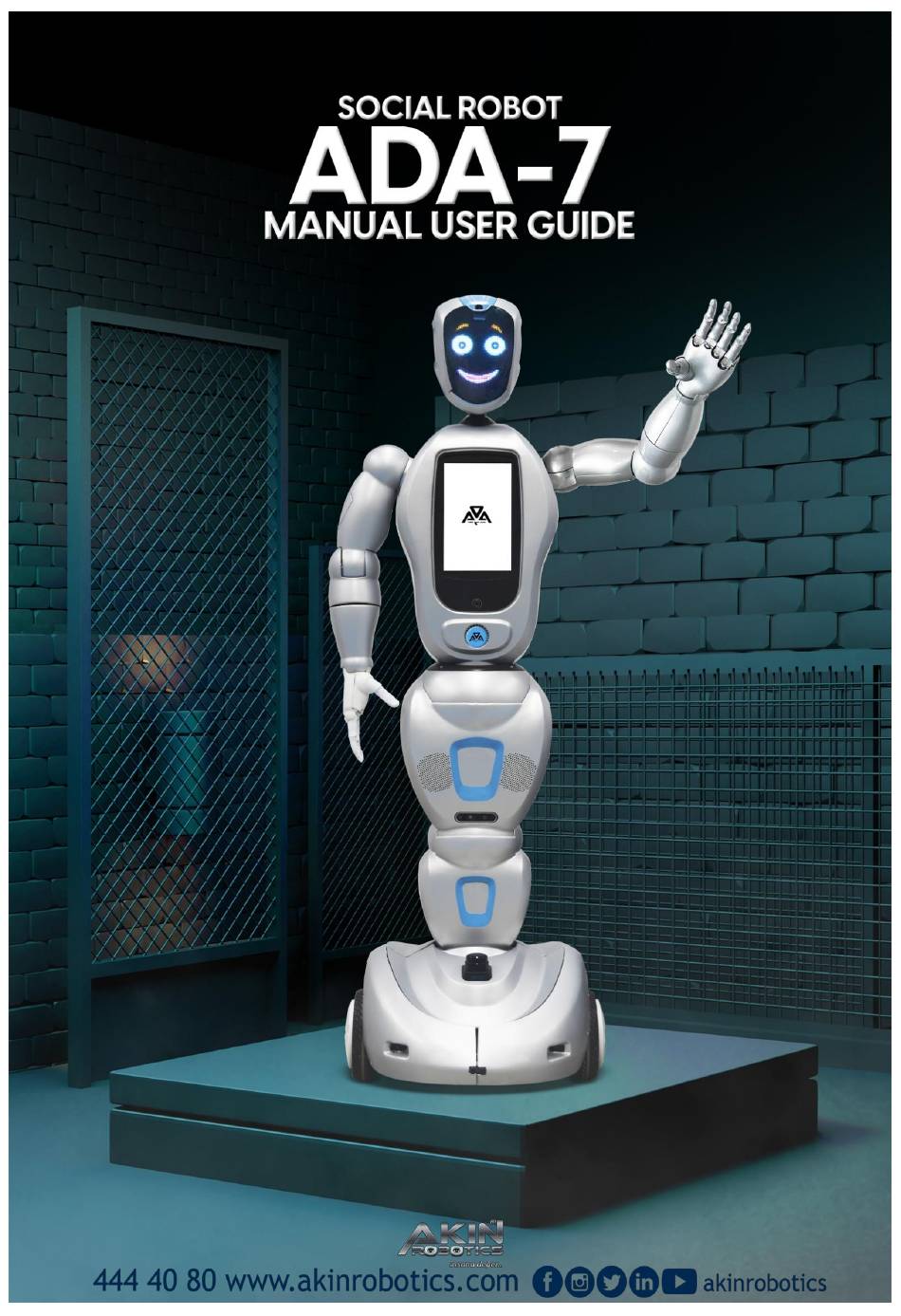

  • Page 1 [BELGE BAŞLIĞI] [Belge alt konu başlığı]...

  • Page 2: General Information

    : +90 444 40 80 : Başak Mah. Konya Ereğli Cad. No:116 Karatay/Konya/ TÜRKİYE ADDRESS Before using the ADA-7 Social robot, please read the user manual carefully, if necessary, ask for support at https://www.akinrobotics.com/en/request-suggestion-form Complete the process steps by following the installation and service instructions exactlyADA-7 is a humanoid social robot that has a high-resolution dynamic LED face and interacts with people by sensing it with its face detection feature.
  • Page 3 GENERAL INFORMATION FIGURE 1 PETTING SENSOR : Sensor area interacted with by touching the robot. : It is a camera that provides a 160° view to the robot. LED 2D CAMERA FACE SCREEN : It is a different color option and a moving face indicator. MICROPHONE : It allows the robot to detect sounds coming from the environment.
  • Page 4 13. USB AUX : It is the connection point of the additional equipment of the robot. 14. CHARGING POWER INPUT : It is the power cable port. autonomously. AUTONOMOUS CHARGING PAD : The area that allows the robot to charge FIGURE 2 CONNECTION APPARATUS : It is the wall connector of the robot autonomous charging...

  • Page 5: Technical Features

    TECHNICAL FEATURES WEIGHT 65 KG HEIGHT 166 CM CHARGING VOLTAGE(Charger) AC: 220 V- 50 Hz CHARGING VOLTAGE (Robot) DC: 28,8V 21A 5°C ~ 45°C OPERATING HEAT RANGE OPERATING HUMIDITY RANGE 10%-50% BATTERY LITHIUM ION (LI-ION) SPOKEN LANGUAGES TURKISH- ENGLISH- RUSSIAN- ARABIC ACTIVE WORKING TIME 8 HOURS...
  • Page 6 After the delivery of the ADA-7 Social robot, the crate is unlocked and the aluminum parts on the robot's shoulders are held and pushed forward to allow it to come out of the protection sponges. With the help of a ramp, the aluminum parts are kept on until the wheels are fully seated on the ground.

  • Page 7: Warning And Precautions

    WARNING AND PRECAUTIONS Before and during use of the ADA-7 Social robot, the following instructions must be followed. 1. Before starting to use the robot, read the user manual. Act in accordance with all instructions. 2. Make sure that the floor on which the robot will move is flat, dry and smooth. Do not operate or leave the robot on slopes, ramps, wet surfaces and uneven surfaces.

  • Page 8: Warning Signs

    WARNING SIGNS Elektrical Hazard Read the user manual before starting to use. Only authorized operator is allowed to use. Lithium ion battery is in hazardous waste class and must be disposed of in accordance with the relevant legislation. May ignite on contact with water. Heavy load, do not lift.

  • Page 9: Handling And Storage

    HANDLING AND STORAGE FIGURE 4  ADA-7 Social robot dimensions are as given in FIG.-4.  The dimensions of the transport box of the robot are 60cm x 70cm x 176cm as given in FIGURE-3..  The robot must be transported upright and fixed in the transport area.

  • Page 10: Maintenance-Repair-Cleaning

    MAINTENANCE-REPAIR-CLEANING  Do not interfere with technical problems that may occur in the ADA-7 Social robot and ask for help by calling the technical support unit.  If the lithium-ion battery inside the robot is damaged and leaking, never intervene and ask for help by calling the technical support unit.
