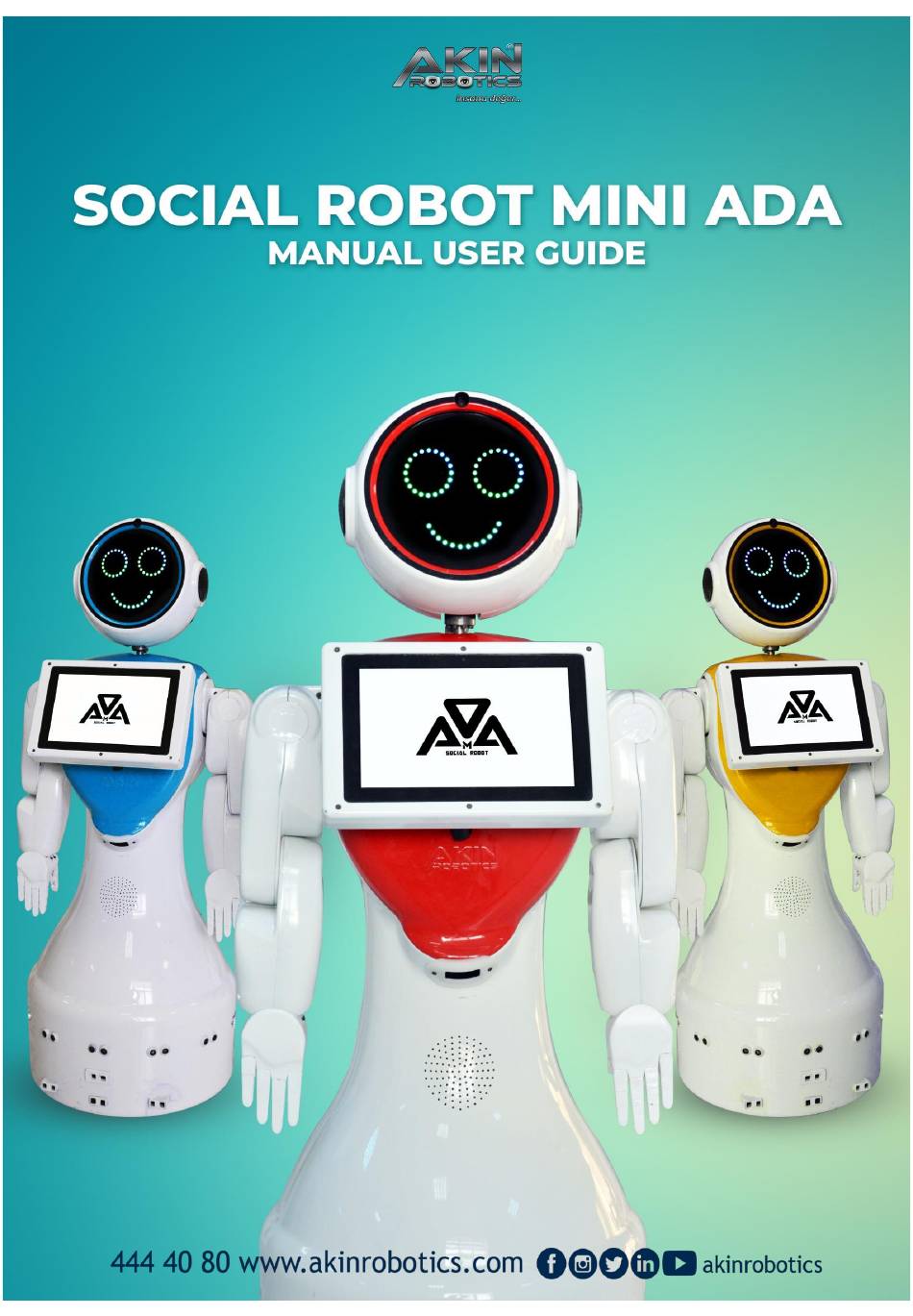

- Page 1 [DOCUMENT TITLE] [Document subheading]...
-
Page 2: General Information
Thanks to the impact and fall sensors, MINI ADA detects obstacles around it and directs its movement. It provides autonomous navigation thanks to the 2 lidars on it. Through the 10.1 inch touchscreen integrated into its body, it can interact with people, present images such as articles, pictures, photos, and show videos. - Page 3 MINI ADA SOCIAL ROBOT AND APPARATUS Figure 2 Figure 3 Figure 1...
- Page 4 MINI ADA SOCIAL ROBOT AND APPARATUS 1. 2D CAMERA : It is the camera that provides the robot with a 160° viewing angle. 2. LED FACE DISPLAY : It is 5 different color options and moving face indicator. 3. MICROPHONE : With 4 separate microphones, it is ensured that the robot can detect sounds coming from the environment.
-
Page 5: Technical Features
TECHNICAL FEATURES WEIGHT 45 KG SIZE 123 CM CHARGING TENSION 220 V- 50 Hz WORKING INTERVAL 5°C ~ 45°C WORKING HUMIDITY RANGE %20-%70 POWER 800 W BATTERY ION (LI-ION) LANGUAGE OPTIONS ENGLISH-ENGLISH-RUSSIAN-ARABIC ACTIVE WORKING TIME 8 CURRENT TIME TO BECOME A SARJ 4 CURRENT NUMBER OF ENGINES 2 BLDC MOTOR/8 ACTUATOR ACTUATOR... - Page 6 Approx. 1 min wait through these operations. 4. Mini ADA Social Robot must be ensured to be adequately charged before it can be operated. It can be tracked via the robot's charging indicator. To charge the robot, plugged into the plugged in.
- Page 7 5. You can follow the instructions by using the File/ Create New Design tabs in the section on the front screen of the robot for the designs you will create for use on the MINI ADA Social Robot screen.
-
Page 8: Warnings And Precautions
WARNINGS AND PRECAUTIONS It is mandatoryto follow the following instructions before and during use of the MINI ADA Social Robot. 1. Read the instruction manual before starting the use of the robot. Follow allinstructions. 2. Make sure that the ground on which the robot will move isflat, dry and smooth. Do... -
Page 9: Warning Signs
WARNING SIGNS Electrical Hazard Readtheinstruction manual before startinguse. Use outside the authorized operator is prohibited. Floresans and lithium-ion battery are in the hazardous waste class and must be disposed of according to the relevant legislation. When it comes into contact with water, it can be taken. Do not lift heavy loads. - Page 10 Figure 5 Figure 6 ➢ MINI ADA Social Robot sizes are as given in Figure-5 and Figure -6. ➢ The robot's carrying crate dimensions are 55cm x 57cm x 127cm, as given in Figure 4. ➢ The robot must be carried upright and fixed to the transport area.
-
Page 11: Maintenance-Repair-Cleaning
MAINTENANCE-REPAIR-CLEANING ✓ Do not interfere with technical problems that may occur in the ADA Social Robot and call technical support for assistance. ✓ Never interfere if the lithium-ion battery inside the robot is damaged and leaking, and call technical support for assistance. ✓...
