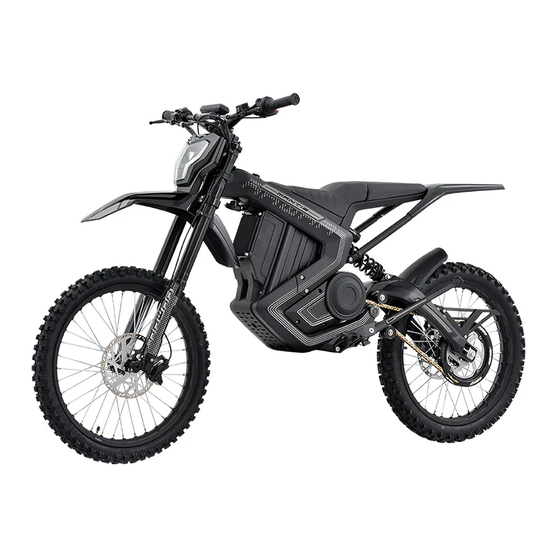

Summary of Contents for Mantis Rawrr
- Page 2 To open box You will need flat head screwdriver, hammer, a 2nd person to help. 1. Use a flat head screwdriver and hammer, tap at the metal tabs (see picture) until it bends open. Do this to every metal tab around the bottom of the box. 2.
- Page 3 To Unbox Mantis You will need scissors, a dirt bike stand or wide wooden blocks about 16” tall 1. Take out the wheel and front mudguard zip-tied to the back of the bike. 2. Take out the handlebar zip-tied to the front of the bike. Remove the...
- Page 4 3. Remove the pins and dowel from the front forks. 4. Remove the straps on each side of the bike.
- Page 5 5. With a friend, lift the bike out of the container and on to the stand. 6. Open the included cardboard box and take out the provided tools.
-
Page 6: Torque Specifications
Torque Specifications Front wheel axle fastener 20 ft/lb (28 Nm) Ignition lock cover fastener 3 ft/lb (4 Nm) Rear wheel sprocket fastener 14 ft/lb (19 Nm) Front and rear wheel disc fastener 5 ft/lb (6 Nm) Front and rear brake caliper fastener 6 ft/lb (8 Nm) Derailleur Fastener 14 ft/lb (19 Nm) - Page 7 Assembly We recommend having a friend help with the assembly of the bike. Step 1. Mount Handlebars 2. Put the handlebar on the headlight 1. Place the headlight bracket on the upper bracket, align the holes. If desired, place the coupling plate, align all four (4) holes, and included spacers to raise the handlebar.
- Page 8 Step 2. Adjust Handlebar Height, Angle (optional) 2. Loosen the four (4) screws on the 1. Loosen the two (2) screws back of gauge with a #5 allen wrench below the gauge with a #3 to adjust the handle angle. allen wrench and rotate the gauge at a suitable angle.
- Page 9 Step 3. Mount Front Wheel 1. Loosen the front wheel lock 2. Install the front axle bushings on each side nut with two #19 wrenches and take out the shaft and nut. Note: Do not crush the seal. 3 . Remove the front brake caliper, place the front wheel inside the fork, install the front axle so that it passes through the fork and the front wheel in turn, and fasten the front axle with two #8 allen wrenches.
- Page 10 Step 4: Install Front Mudg u a r d 1. Secure the front mudguard to the lower coupling plate with 3 screws including flat washer and spring locking washer using #4 allen wrench Step 5. Install Headlight / Number Plate 1.
- Page 11 2. Adjust the position and tighten the middle screw with # 5 allen wrench Step 6. Adjust Headlight Angle (optional) Adjust the headlight height by rotating the adjusting screw with a Phillips screwdriver. Note that turning the screw clockwise will lower the light, while turning it counterclockwise will raise it.
-
Page 12: Step 8. Charge The Battery
Step 8. Charge the battery 1 . Under normal circumstances, turn the bike on then press the seat cushion switch on the handlebar. Once open, check the air switch to ensure it is in the off state. 2. In cases where the battery is unavailable or damaged, and the whole bike cannot be powered on, insert the key into the round hole located underneath the rear cushion. - Page 13 T h e b attery charging port i s o n the right side of the frame. Slide the battery into the battery compartment; plug in the charger, turn the on/off switch to the left (ON), close the seat, turn off the ignition and remove the key. Open the seat when the whole bike power on 2.
-
Page 15: Other Notes
Other Notes 1. RAWRR is committed to continuously improving the performance of its products, and as such, product specifications and manual content may change without prior notice. If there are any discrepancies between the icons and pictures in this manual and the...
