- Page 1 User Manual Popcorn Poppers #382PM30R 8 oz. #382PM50NR 12 oz. #382PM17R 8 oz. w/ Merchandiser 5002274 5002274 CONFORMS TO UL STD. 197 CONFORMS TO CSA C22.2 NO. 109 CONFORMS TO NSF/ANSI STD. 4 11/22 Info@CarnivalKingSupplies.com | CarnivalKingSupplies.com...
- Page 2 Popcorn Poppers User Manual Introduction Thank you for your purchase of Carnival King Royalty Series Equipment. To ensure the best results, it is important that you read and follow the instructions in this manual carefully. Important Safeguards READ ALL INSTRUCTIONS PRIOR TO USING YOUR POPCORN MACHINE.

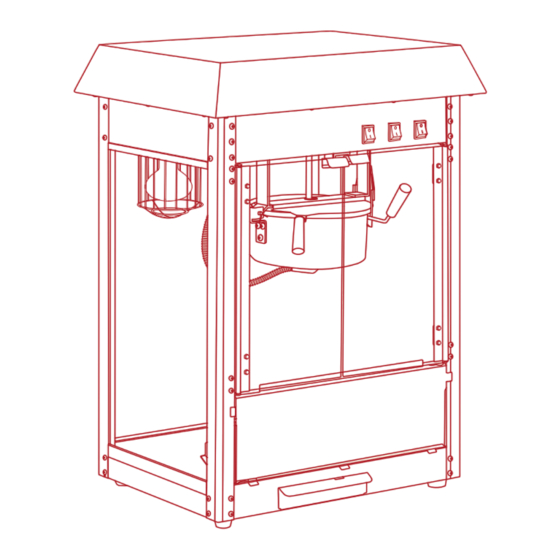

- Page 3 Popcorn Poppers User Manual Unit Breakdown Main Unit Controls Heating Lamp Popping Kettle Hinged Glass Doors Panel Door Kernel Filter Removable Crumb Tray Receiving IMMEDIATELY INSPECT FOR SHIPPING DAMAGE All equipment should be examined for damage before and during unloading. The freight carrier has assumed responsibility for its safe transit and delivery.
- Page 4 Popcorn Poppers User Manual Assembly Instructions Kettle Assembly Fig. 1 Fig. 2 Screw the lid (A), stirrer anchor (B), and stirrer (C) into the gear box (D). (Fig. 1) Hold the kettle (E) up into the supporter (F). (Fig. 2) Insert pin (G) through the kettle and supporter.
- Page 5 Popcorn Poppers User Manual Assembly Instructions Main Unit Assembly Fig. 6 Follow Kettle Assembly on page 4 to get the Popping Kettle (A) in place and set up. Insert the Unpopped Kernel Filter (B) onto the inside base of the unit.
- Page 6 Plug the power cord into an appropriate outlet, the unit is now prepared to use. Kernels & Oil • It is highly recommended to use Carnival King All-in-One Popcorn kits. POPCORN Follow instructions on the kit for best results. •...
- Page 7 Repeat procedure 2-3 times for best results. Compatible Cleaning Products • Noble Chemical Formula D Decarbonizer & Degreaser (#147FORMULAD) • Carnival King Kettle Kleen Popcorn Kettle Cleaner (#382KETTLEKLN) • Noble Chemical Reflect Glass Cleaner (#147REFLECT) Kettle Removal If you need to remove the kettle for cleaning: Make sure unit is NOT connected to a power supply.
- Page 8 Popcorn Poppers User Manual Troubleshooting PROBLEM CAUSE Check power supply: Motor, light, or any of the other components • Is it plugged in? do not work. • Is the receptacle live? • Is the machine plugged into proper voltage? KETTLE WILL NOT HEAT See page 4, fig.
