Red Arrow Trading LEDFLD30BPC Installation Instructions

LED Slimline Floodlight
with Photocell
Installation Instructions P .1
For models: LEDFLD30BPC & LEDFLD50BPC
This installation must be carried out by an electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.

Specification

• Slimline LED Floodlight
• Class I (must be earthed)
• Wattage: 50W
• Lamp (included): LED
• Life Expectancy: 35,000 hours
• Supply voltage: 85-265V
• IP Rating: IP65
• Material: Die Cast Aluminium

Important Installation Information

• Installation should be carried out in accordance
with the latest edition of the I.E.E. wiring
regulations (BS7671) and taking into consideration
the latest Building Regulations. If in doubt, consult
a qualified electrician.
IMPORTANT: Ensure that ALL electrical
connections are tight with no loose strands,
including factory made connections.
• Input voltage – 85V-240V
• Ensure there is adequate free air circulation of at
least 100mm around the luminaire. All luminaires
run hot. It is the installer's responsibility to consider
fire risk and take appropriate precautions.
• Before commencing installation or maintenance,
ensure electricity is switched off at the mains.
• The nearest illuminated surface must be at least
0.5m from the front of the fitting
• It is not recommended for fittings installed outside
to be installed horizontally with the lens facing
upwards. Fittings installed in this manner may fail
prematurely due to water ingress, and such failures
may not be replaced under warranty.
Red Arrow Trading
Elsworth House, Herries Road South
Sheffield, S6 1QS

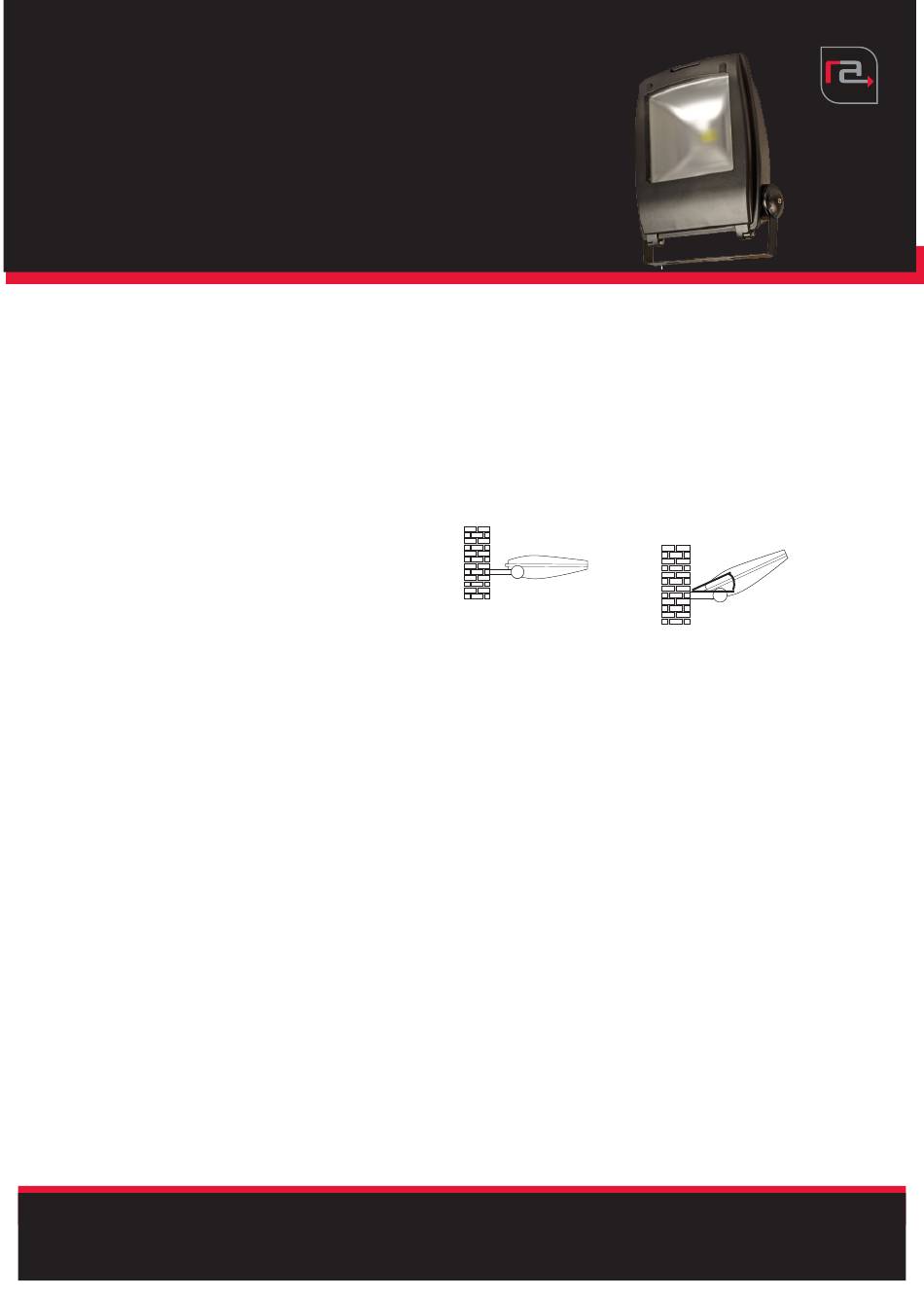

• It is recommended that the fittings be installed with the lens
facing downwards. If the fitting is installed with the lens
facing upwards, the fitting should be tilted a minimum of 30
degrees from the horizontal, to ensure rainwater can quickly
drain away from the lens.
✗
Important User Information
• Always switch off mains supply before servicing, fitting
or maintenance.
✓
• Allow the LED and fitting to cool before replacing LED.
30˚
Installation Instructions
• Check for concealed cables before drilling fixing holes.
• Remove the bracket pulling out the two bolts on both sides.
• Fix the bracket to a wall or similar hard surface.
• Fix the body to the bracket.

Maintenance

• Before any maintenance ensure the product has cooled
down.
• This product is supplied ready to use. No maintenance
should be required, except if damaged or the front glass
cover is broken. In either case please contact your supplier.

Cleaning

• Depending on the application, clean the glass cover at
regular intervals, and remove all dust or dirt to ensure
luminaire works correctly.
•Use cotton duster (no alcohol, no solvent), only water to
clean glass.
T: 0800 195 0006 F: 0870 043 3946
E: sales@redarrowtrading.com
✗
✓
30˚
www.redarrowtrading.com
