LED AC DRIVERLESS
FLOODLIGHTS WITH PIR
FOR MODEL: FLAC10BPIR, FLAC10BPIR-31, FLAC20BPIR,
FLAC20BPIR-31, FLAC30BPIR, FLAC30BPIR-31, FLAC50BPIR &
FLAC50BPIR-31
INTRODUCTION

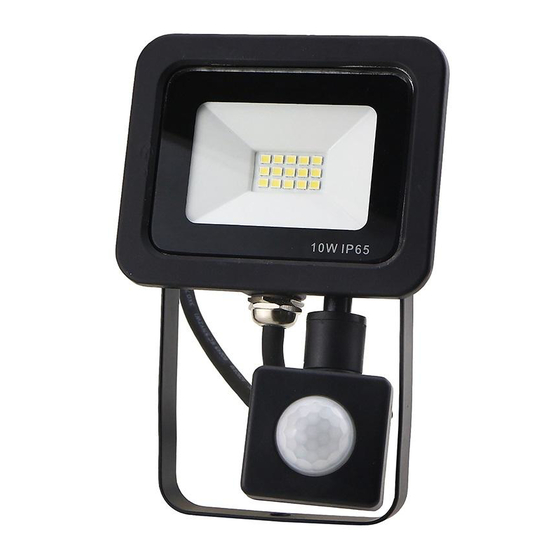

The LED AC Driverless Floodlights
with PIR include a hanging /
mounting bracket and a 100cm
cable.
SPECIFICATION
LED
750-
IP65
4000lm
• Dimensions:
10W: L: 103 x W: 155 x D: 50mm
20W & 30W: L: 160 x W: 193 x D: 52mm
50W: L: 206 x W: 216 x D: 54mm
• LED: 15-80pcs of SMD 2835
• Working Temperature: -20°C - 45°C.
Automatic
B6
B10
Circuit Breaker
Type
Rated
6A
10A
Current
(Ampere)
Installation
1.5
(mm²)
10W
132
220
20W
66
30W
44
50W
26
PIR Specification
• Voltage: 220-240V 50/60Hz
• Rated Load: Maximum 100W resistive load /
Maximum 10W inductive load
• Detection Range: 90°
• Detection Distance: 6-10m (adjustable)
• Time Delay: Minimum 10±5 seconds, maximum 8±2 minutes
(adjustable)
Red Arrow Electrical Distribution
Elsworth House, Herries Road South
Sheffield, S6 1QS
180-
3100K/
>80 Ra
240V
6000K
10W-
50Hz
IK07
50W
B13
B16
13A
16A
1.5
1.5
1.5
286
352
110
143
176
73
95
117
44
57
70
T: 0800 195 0006 F: 0870 195 0006
E: sales@redarrowtrading.com
www.redarrowtrading.com
B20
C10
C13
20A
10A
13A
2.5
1.5
1.5
440
220
286
220
110
143
146
73
95
88
44
57
C16
C20
16A
20A
1.5
1.5
352
440
176
220
117
146
70
88
