Summary of Contents for V7 UCDDS1080P

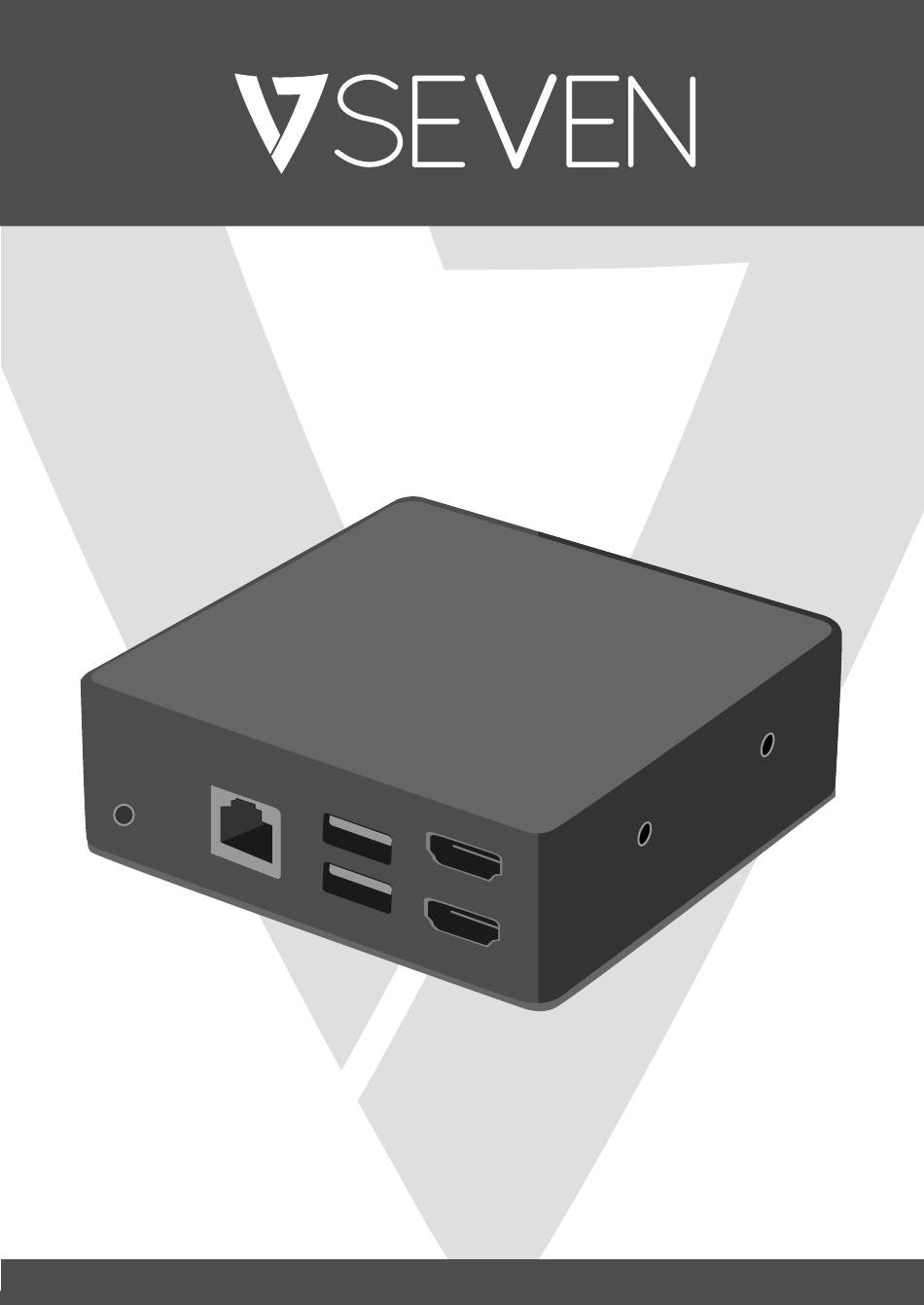

- Page 1 UCDDS1080P www.v7world.com...
- Page 2 INTRO Copyright This document contains proprietary information protected by copyright. All rights reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. Trademarks All trademarks and registered trademarks are the property of their respective owners or companies.
- Page 3 IMPORTANT • Check www.v7world.com for the latest downloads for this product • Confirm that you are connecting the Docking Station with the supplied USB cable to the fastest USB port available on your computer (USB-C or USB 3.0 or greater) •...
- Page 4 OVERVIEW FRONT Item Description Combo Audio Jack Connect to a headset 2. USB3.1 Type-A Connect to USB-A devices (support BC1.2 & Apple charge) USB3.1 Type-C Connect to laptop (support PD3.0) LED Indicator LED shows blue when power on, green when active...
- Page 5 OVERVIEW BACK Item Description 5. Power Button Switch to power on/off 6. Power Jack Connect to the power adapter 7. RJ45 Port Connect to an Ethernet 8. USB 3.1 Type-A x2 Connect to USB devices 9. HDMI connector x2 Connect to HDMI monitor...
- Page 6 OVERVIEW SIDE Item Description 10. K-Lock Secure your device...
- Page 7 OVERVIEW CONNECTION...
- Page 8 SPECIFICATION Host Interface USB-C or USB 3.0 Connectors 2 x HDMI 30pin Female Connector 2 x USB 3.1 Gen1 Type-A 1 x USB 3.1 Gen1 Type-A BC 1.2 & Apple charge 3.5mm Stereo Mini-Jack RJ45 Connector DC Power Jack Maximum Video One Display: 2560x1440@50Hz Resolution Dual Display: 1920x1080@60Hz...
