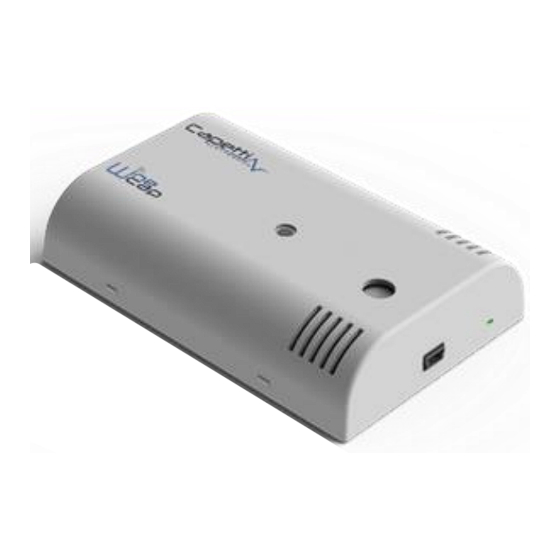

- Page 1 WLRD00THCOP User Manual Indoor temperature, relative humidity, CO percentage and atmospheric pressure wireless recorder.
-
Page 2: General Warnings
WLRD00THCOP User Manual General warnings. • The following information must be read and understood before proceeding with the installation, commissioning and maintenance of the devices described in this document. • ATTENTION! Any omission or failure to follow these instructions scrupulously can cause danger. •... - Page 3 WLRD00THCOP User Manual BUZZER: Enabled LED: Enabled BUZZER: Disabled LED: Enabled BUZZER: Enabled LED: Disabled BUZZER: Disabled LED: Disabled capetti www. PAGE 3/10 WA0428E_WLRD00THCOP_User Manual_R01...
-
Page 4: Sensor Positioning
WLRD00THCOP User Manual 5. Device pre-set and use mode. a. Wireless Mode: In this use mode, the datalogger records and transmits each measure sampled to the linked gateway. Typically, the monitoring system is refer to Picture 5 - Status table – configured in factory, so, if the device is already associated to the system gateway is in STANDBY mode ( Wireless mode refer to... - Page 5 WLRD00THCOP User Manual 7. Wireless device user interface. WineCapKey The user interface consists of a “virtual” button that can be activated using the and of a two-colours led. WineCapKey To give a command, user must approach the to the device’s sensible area and keep it in that position.; the following picture Picture 3 - WineCapKey positioning ) shows device’s sensible points.
-
Page 6: Device Enrolment
WLRD00THCOP User Manual The following COMMAND table describes the available commands: WIRELESS MODE COMMAND table Flash count Command Description Shows the device STATUS. As answer the led perform a flash sequence as 1 flash refer to STATUS reported in the STATUS table. If the device is performing the TEST ( TEST command ) this command stops it. - Page 7 WLRD00THCOP User Manual WineCapKey For each flash, a different command is associated; to confirm the command the must be removed from the sensible area immediately after the number of flashes corresponding at the desired command. The TEST corresponds to the second pulse and activate the "Field Measurer"...
-
Page 8: Technical Information
WLRD00THCOP User Manual 11. Shutting off/Reactivating the device. (refer to Picture 4 - Command table) If the device is shut off and left unused for a long time, you can issue the STANDBY command . It corresponds to the command number 4 and must be issued twice to confirm the operation. Position the WineCapKey in the spot indicated in (... -
Page 9: Mechanical Dimensions
Picture 7 - Mechanical dimensions 14. Disclaimer. • Specifications are subject to change without notice and should not be interpreted as a commitment on the part of Capetti Elettronica S.r.l. • Capetti Elettronica S.r.l. assumes no responsibility for possibly errors that may appear in this document. In no case Capetti Elettronica S.r.l. -
Page 10: Reference Standards
WLRD00THCOP User Manual 15. Reference standards. EN 61010 -1 For electromagnetic compatibility EN 61000 - 3 - 2 EN 61000 - 3 - 3 EN 300 220 -2 EN 301 489 - 03 EN 61000 - 6 -1 This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts the use of substances in the manufacturing of electronic devices.
