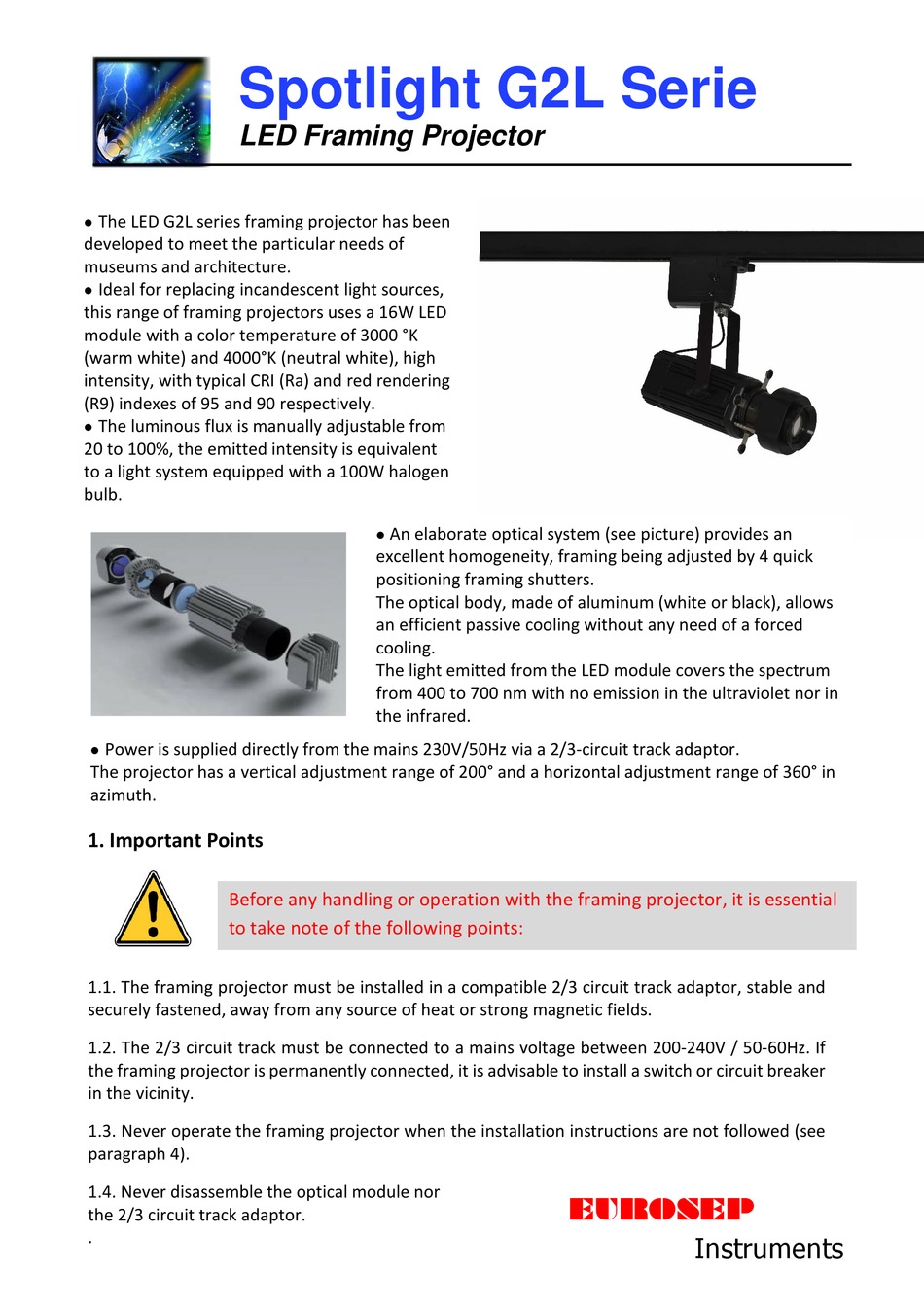

Spotlight G2L Serie
LED Framing Projector
The LED G2L series framing projector has been
developed to meet the particular needs of
museums and architecture.
Ideal for replacing incandescent light sources,
this range of framing projectors uses a 16W LED
module with a color temperature of 3000 °K
(warm white) and 4000°K (neutral white), high
intensity, with typical CRI (Ra) and red rendering
(R9) indexes of 95 and 90 respectively.
The luminous flux is manually adjustable from
20 to 100%, the emitted intensity is equivalent
to a light system equipped with a 100W halogen
bulb.
Power is supplied directly from the mains 230V/50Hz via a 2/3-circuit track adaptor.
The projector has a vertical adjustment range of 200° and a horizontal adjustment range of 360° in
azimuth.
1. Important Points
Before any handling or operation with the framing projector, it is essential
to take note of the following points:
1.1. The framing projector must be installed in a compatible 2/3 circuit track adaptor, stable and
securely fastened, away from any source of heat or strong magnetic fields.
1.2. The 2/3 circuit track must be connected to a mains voltage between 200-240V / 50-60Hz. If
the framing projector is permanently connected, it is advisable to install a switch or circuit breaker
in the vicinity.
1.3. Never operate the framing projector when the installation instructions are not followed (see
paragraph 4).
1.4. Never disassemble the optical module nor
the 2/3 circuit track adaptor.
.
An elaborate optical system (see picture) provides an
excellent homogeneity, framing being adjusted by 4 quick
positioning framing shutters.
The optical body, made of aluminum (white or black), allows
an efficient passive cooling without any need of a forced
cooling.
The light emitted from the LED module covers the spectrum
from 400 to 700 nm with no emission in the ultraviolet nor in
the infrared.
