Download
Share
Print this page
RCS AUDIO-SYSTEMS SRC-512 EN Operating Instructions Manual
  1. Manuals
  2. Brands
  3. RCS AUDIO-SYSTEMS Manuals
  4. Speakers
  5. SRC-512 EN
  6. Operating instructions manual

RCS AUDIO-SYSTEMS SRC-512 EN Operating Instructions Manual

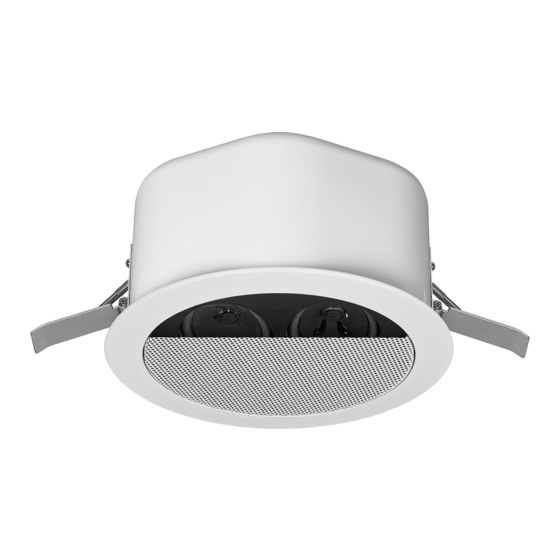

A/b ceiling speaker
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
SRC-512 EN
A/B CEILING SPEAKER
OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG
MADE IN
GERMANY
- ENGLISH
- DEUTSCH

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRC-512 EN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCS AUDIO-SYSTEMS SRC-512 EN

Summary of Contents for RCS AUDIO-SYSTEMS SRC-512 EN

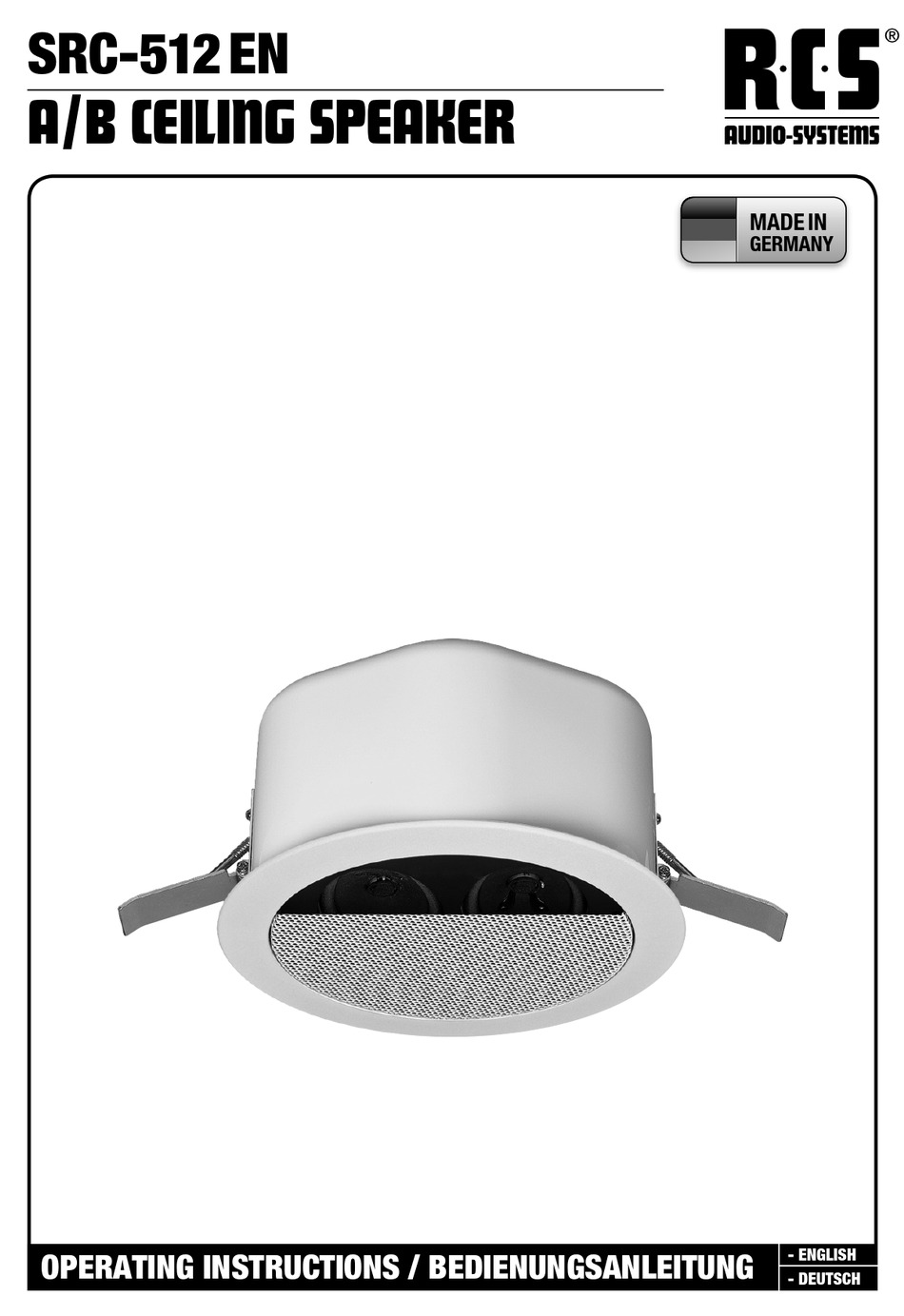

  • Page 1 SRC-512 EN A/B CEILING SPEAKER MADE IN GERMANY - ENGLISH OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG - DEUTSCH...
  • Page 2 SRC-512 EN DESCRIPTION BESCHREIBUNG This ceiling and wall speaker is equipped with 2 loudspea- Dieser Einbaulautsprecher ist sowohl mit 2 Lautsprechern kers as well as with 2 transformers. This cabinet speaker wie auch mit 2 Übertragern bestückt und erlaubt damit auf...
  • Page 3 SRC-512 EN Polar Response Polar Plots [Hz] 1000 2000 4000 Polar response horizontal (red) (-6dB) 162° 180° 106° 60° Polar response vertical (blue) (-6dB) 176° 180° 172° 132° Technichal Data SRC-512 EN Input 100 V Nominal power 2 x 6W, 3W, 1,5W...

  • Page 4: Connection Diagrams

    SRC-512 EN CONNECTION DIAGRAMS SRC-512 EN / Loudspeaker for voice alarm systems RCS Audio-Systems GmbH, Markfeld 5, 83043 Bad Aibiling 11 / System 1 / 1488, ITB Building Research Institute, 00-611 Warszawa, ul Filtrowa 1 1488-CPR-0181/W / EN-54-24:2008 / Typ A...

  • Page 5: Mounting Instructions

    SRC-512 EN MOUNTING INSTRUCTIONS MONTAGEANLEITUNG ASSEMBLY EINBAU The hole cutout necessary for the installation should have Der benötigte Lochausschnitt für die Installation sollte einen a diameter of 205 mm ±5mm. The installation depth should Durchmesser von 204 mm ±5 mm aufweisen. Die Einbautie- amount to at least 100 mm.
  • Page 6 SRC-512 EN...
  • Page 7 SRC-512 EN DECLARED PERFORMANCE LEISTUNGSERKLÄRUNG ESSENTIAL CHARACTERISTICS CHAPTER OF PERFORMANCE HARMONISED STANDARD STANDARD Performance in case of fire! 4.2, 5.2, 5.3, 5.4, 5.5 fulfilled EN 54-24:2008 Operation reliability 4.3, 4.4, 4.5, 5.6, 5.18 fulfilled EN 54-24:2008 Durability of operation 5.7, 5.8, 5.9...
  • Page 8 SRC-512 EN RCS28.03.2019 © Copyright by RCS AUDIO-SYSTEMS GmbH. Veröffentlichung und Vervielfältigung der enthaltenen Daten, auch auszugsweise, nur mit unserer Genehmigung.
