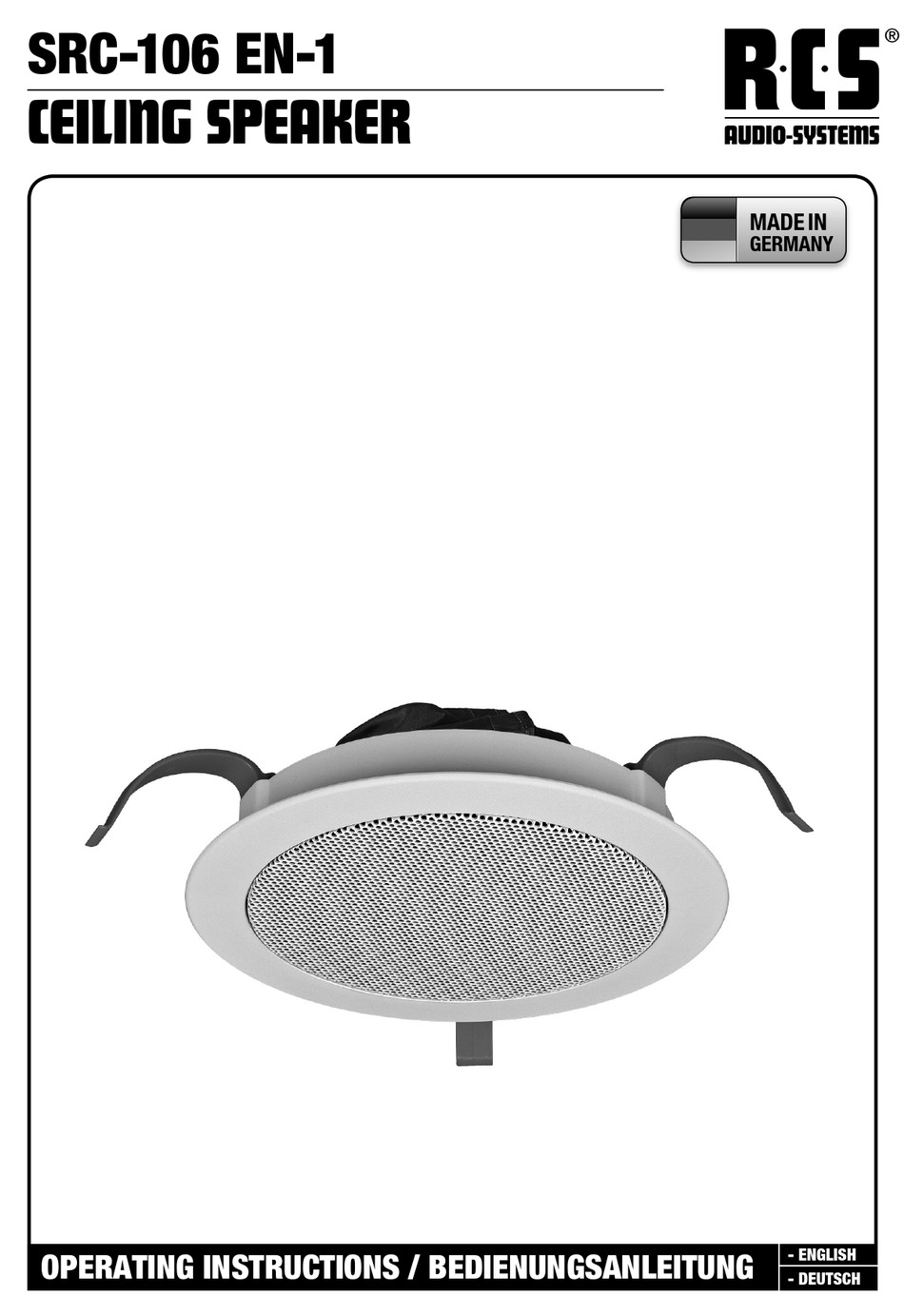

CEILING SPEAKER
OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG
MADE IN
GERMANY
- ENGLISH
- DEUTSCH

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRC-106 EN-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCS AUDIO-SYSTEMS SRC-106 EN-1

Summary of Contents for RCS AUDIO-SYSTEMS SRC-106 EN-1

  • Page 1 SRC-106 EN-1 CEILING SPEAKER MADE IN GERMANY - ENGLISH OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG - DEUTSCH...
  • Page 2 SRC-106 EN-1 DESCRIPTION BESCHREIBUNG The SRC ceiling and wall mounted speakers for recessed in- Die SRC Einbaulautsprecher sind nach den neuesten Stan- stallation are designed according to the latest standards and dards für den Unterputz-Einbau konzipiert und sind leicht ensure easy mounting. The speaker inside the grill is held in zu montieren.
  • Page 3 SRC-106 EN-1 Polar Response Polar Plots [Hz] 1000 2000 4000 Polar response horizontal (red) (-6dB) 180° 180° 165° 105° Polar response vertical (blue) (-6dB) 180° 175° 130° 95° Technichal Data SRC-106 EN-1 Input 100 V Nominal power 6W, 3W, 1,5W...
  • Page 4 SRC-106 EN-1 SRC-106 EN-1...

  • Page 5: Mounting Instructions

    SRC-106 EN-1 MOUNTING INSTRUCTIONS MONTAGEANLEITUNG ASSEMBLY EINBAU The necessary hole cut for the installation should have a Der benötigte Lochausschnitt für die Installation sollte einen diameter of 195 mm ±3mm. The installation depth should Durchmesser von 195 mm ±3 mm aufweisen. Die Einbautie- amount to at least 70 mm.

  • Page 6: Connection Diagrams

    SRC-106 EN-1 CONNECTION DIAGRAMS SRC-106 EN-1 / Loudspeaker for voice alarm systems RCS Audio-Systems GmbH, Markfeld 5, 83043 Bad Aibiling 11 / System 1 / 1488, ITB Building Research Institute, 00-611 Warszawa, ul Filtrowa 1 1488-CPR-0185/W / EN-54-24:2008 / Typ A...
  • Page 7 SRC-106 EN-1 DECLARED PERFORMANCE LEISTUNGSERKLÄRUNG ESSENTIAL CHARACTERISTICS CHAPTER OF PERFORMANCE HARMONISED STANDARD STANDARD Performance in case of fire! 4.2, 5.2, 5.3, 5.4, 5.5 fulfilled EN 54-24:2008 Operation reliability 4.3, 4.4, 4.5, 5.6, 5.18 fulfilled EN 54-24:2008 Durability of operation 5.7, 5.8, 5.9...
  • Page 8 SRC-106 EN-1 RCS28.03.2019 © Copyright by RCS AUDIO-SYSTEMS GmbH. Veröffentlichung und Vervielfältigung der enthaltenen Daten, auch auszugsweise, nur mit unserer Genehmigung.
