Technical
Information
TI 11B06H01-01EN
Contents
Introduction ...................................................................................................2
Safety Precautions ..................................................................................................3
1.
How to install ................................................................................................6
1.1
Data required for AI analysis .............................................................................. 6
1.2
Download software/initial free trial license ....................................................... 6
1.3
Performing an Installation .................................................................................. 6
2.
Initial Installation ..........................................................................................7
2.1
Activation of initial free trial license .................................................................. 7
2.2
Confirmation of operation ................................................................................... 8
2.2.1
2.2.2
2.3
Check items before moving to the paid version ............................................. 11
3.
Paid License ............................................................................................... 12
3.1
Paid License Usage Notes ................................................................................ 12
3.2
Types of Paid Licenses...................................................................................... 12
3.3
Purchase Flow of Paid Licenses ...................................................................... 13
Revision Information ........................................................................................... 16

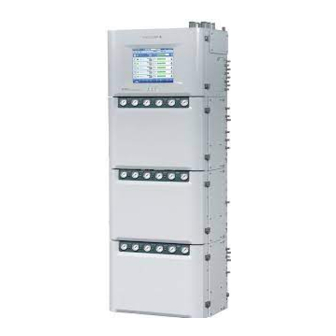

For GC8000
Gas Chromatograph
AI Maintenance Support
Installation and License Guide
Confirmation of health diagnosis operation .......................................... 8
Operation check of the resolution prediction function ........................ 10
TI 11B06H01-01EN
©Copyright Mar. 2023(YK)
1st Edition Mar. 2023(YK)
Advertisement
Table of Contents
Related Manuals for YOKOGAWA GC8000
Summary of Contents for YOKOGAWA GC8000
-
Page 1: Table Of Contents
Technical For GC8000 Gas Chromatograph Information AI Maintenance Support Installation and License Guide TI 11B06H01-01EN Contents Introduction ....................2 Safety Precautions ....................3 How to install ....................6 Data required for AI analysis ................6 Download software/initial free trial license ............6 Performing an Installation .................. 6 Initial Installation ..................7 Activation of initial free trial license .............. -
Page 2: Introduction
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Introduction This manual provides technical information for the initial software installation and renewal methods for Gas Chromatograph AI Maintenance Support (hereinafter referred to as GCAI): a support software for gas chromatograph GC8000 (hereinafter referred to as GC). A free trial license of this software allows you to check compatibility with the individual applications you need. After confirming that it is applicable, refer to “Gas Chromatograph AI Maintenance Support Handbook” (TI 11B06H01-02EN) and perform a detailed setup for more accurate detection. The relevant documents are as follows: Contents Document number Note Gas Chromatograph AI Maintenance Support GS 11B06H01-01EN General specifications Online manual Gas Chromatograph AI Maintenance Support TI 11B06H01-01EN License guide Installation and License Guide Online manual (this manual) Gas Chromatograph AI Maintenance Support TI 11B06H01-02EN Online manual Handbook... -
Page 3: Safety Precautions
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Safety Precautions n Precautions for the product’s protection, safety, and modification • In order to protect the system controlled by the product and the product itself and ensure safe operation, observe the safety precautions described in this user’s manual. We assume no liability for safety if users fail to observe these instructions when operating the product. • Use of the product in a manner not specified in this manual may impair its protective functions. • When installing protection or safety circuits for this product or the system it controls, install them separately outside of this product. • When replacing parts or consumables of this product, be sure to use our specified products. • Modification of this product is strictly prohibited. n Notes on Handling User’s Manuals • Please hand over the user’s manuals to your end users so that they can keep the user’s manuals on hand for convenient reference. • Please read the information thoroughly before using the product. • The purpose of these user’s manuals is not to warrant that the product is well suited to any particular purpose but rather to describe the functional details of the product. • No part of the user’s manuals may be transferred or reproduced without prior written consent from YOKOGAWA. - Page 4 Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Documentation Conventions l Symbol Marks Throughout this user’s manual, you will find several different types of symbols are used to identify different sections of text. This section describes these icons. ALSO Indicates references. CAUTION Indicates that operating the hardware or software in this manner may damage it or lead to system failure Gives information that complements the present topic. l Keyboard Inscriptions Characters enclosed by brackets [ ], greater-than sign >, Bold Italic font When characters are enclosed by brackets in the description of a key or button operation, it indicates a key on the keyboard, a button name in a window, or an item in a list box displayed in a window. The Bold Italic font indicates the file name. (Inscription example) Select [License Activation] > [First-trial.lic] (Meaning) This indicates that on the confirmation screen for the first-time use, on the license activation screen, click [License Activation], then select the [First-Trial.lic] file. Drawing Conventions Some drawings may be partially emphasized, simplified, or omitted, for the convenience of description. Some screen images depicted in the user’s manual may have different display positions or character types (e.g., the upper / lower case). Also note that some of the images contained in this user’s manual are display examples.
- Page 5 Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 n Copyright and Trademark Notices All Rights Reserved The copyrights of the programs and on-line manual are reserved. The on-line manual is protected by the PDF security from modification, however, it can be output via a printer. Printing out the on-line manual is only allowed for the purpose of using the product. When using the printed information of the on-line manual, check if the version is the most recent one. No part of the on-line manual may be transferred, sold, distributed (including delivery via a commercial PC network or the like), or registered or recorded on video tapes. Trademark Acknowledgments • Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Adobe, Adobe Acrobat, and Acrobat Reader are trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. • All other company and product names mentioned in this user’s manual are trademarks or registered trademarks of their respective companies. • We do not use TM or ® mark to indicate those trademarks or registered trademarks in this user’s manual. TI 11B06H01-01EN Mar. 17, 2023-00...
-
Page 6: How To Install
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 How to install Data required for AI analysis To install the software, a stable chromatogram of GC measurement results and at least one day of data on the analysis results are required. For more accurate settings, we recommend at least 1 month of data. Configuration data can be added or changed later. Refer to Gas Chromatograph AI Maintenance Support Handbook (TI 11B06H01-02EN) for more information. ALSO Download software/initial free trial license Download the GCAI software from the YOKOGAWA website. Consult a YOKOGAWA sales representative in charge for the URL. After registering as a member, you can download it from the product page. CAUTION • A separate license purchase is required for continued use after the end of the free period. • If you cannot download directly to PCAS, please use the appropriate recording media to migrate to a PC with PCAS installed. Performing an Installation Download the software from our dedicated website. After extracting the zip file (*zip) of the... -
Page 7: Initial Installation
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Initial Installation Some applications may not be compatible with this software due to GC measurement specifications. Please use the initial free trial license in accordance with this manual, and purchase a paid license after confirming compatibility. In addition, as the number of monitored units increases, depending on the processing power of the PCs used, the system may in rare cases exceed the specifications. Please check back during the free trial license period. CAUTION • The free trial license is intended to ensure compatibility with the application. We also do not extend the free period for any reason. • The software notifies anomalies only if a threshold exceedance event occurs during the period. Activation of initial free trial license The initial free trial license file is “First-trial.lic”, being enclosed with the downloaded compressed file. The following screen for the first-time use will be displayed when the system is started for the first time. Select “License Activation” and activate the free trial license according to the instructions on the screen. Figure 2 Initial startup screen How to Start Free trial licensing On the Initial startup screen, select [License Activation] > [First-trial.lic] > click check-box to start... -
Page 8: Confirmation Of Operation
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 For details on how to authorize licenses other than the free trial license, see Chapter 1 of IM 11B06H01-01EN. ALSO To continue to use the software after the free trial license expires, you will need to apply for a paid license, for which you will need to create a request file. See “3.3 Purchase Flow of Paid Licenses” for details on how to create a request file. ALSO 2.2 Confirmation of operation 2.2.1 Confirmation of health diagnosis operation After the license activation, it automatically loads the chromatograph data from a previous day stored in PCAS and starts training. The training may take several minutes. When the chromatogram of the first GC analysis result is output after the training is completed, the classification starts. Follow the procedure below to check if the training has been completed successfully and the classification has been made. C lick “All GCs” tab on the main screen to see the list of GCs to which licenses have been assigned. If the icon preceding the ID number is any one of the followings: training/classification has been successfully performed in default mode. The icon of the ID number indicates a status of Untrained until the initial classification has been made. Figure 3 All GCs tab TI 11B06H01-01EN Mar. - Page 9 Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 When a training failed ID number indicates : a status of Untrained, even after a new chromatogram is generated, check the following items. 1. T he health diagnose setting screen is not automatically updated. You need to display the List tab again after displaying another screen. The display is updated. 2. H ealth diagnose is performed by using PCAS chromatogram. Therefore, if the PCAS folder name is different from the one in the setting, the chromatogram is not read. Check the PCAS folder name as follows. S elect [Configuration] > [Set PCAS Folder] on the menu bar. C heck the folder name there matches the directory of the actual PCAS folder that GCAI refers to. 3. C heck if the folder with the corresponding ID in the PCAS folder contains chromatograms for the previous day’s date. If the chromatogram of the previous day is not stored, the training cannot be performed in the default mode.
-
Page 10: Operation Check Of The Resolution Prediction Function
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 2.2.2 Operation check of the resolution prediction function Upon activation of the license, GCAI automatically reads the data of the analysis results stored in PCAS and starts training. Training may take several minutes. After training is completed, select [All GCs] > [ID-Tag]> [Resolution Pred.] on the main screen. If the “Day Before” and “30days Prediction” are displayed, the operation is normal. If you do not want to use the resolution prediction function, change the setting from “Monitoring” to “Disabled”. The threshold is set to the default value (1.5); refer to Chapter 3 of TI 11B06H01-02EN to change to the appropriate threshold. If they are not displayed, check the following items. a. Numbers in the screen are not automatically updated. After displaying another screen, display the list tab again. The display is updated. Confirm again that the resolution-predictive function is working properly. b. S elect [Configuration] > [Set PCAS Folder] on the menu bar. Make sure that it matches the actual PCAS folder directory. c. C heck whether the analysis result file (*.anx) is stored in the folder of the corresponding ID of the PCAS folder. The analysis result is shown as below according to the corresponding file. “Day Before” Displayed when files from the previous day are stored “30days Prediction”... -
Page 11: Check Items Before Moving To The Paid Version
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 2.3 Check items before moving to the paid version Purchasing a paid license allows you to use GCAI even after the free period ends. Prior to purchasing, make sure that all of the following items apply: □ Confirmation of normal operation of the monitored GC as described in “2.2 Confirmation of operation”. □ Data has been stored for more than a day. □ The desired monitoring region setup of the anomaly detection function is set to enable. □ The results of the classification of the desired monitoring measuring stream/detector of the anomaly detection function can be confirmed. □ The prediction results of the resolution prediction function can be checked. □ The error log “The number of operation requests exceeds the processing limit” that occurs due to insufficient PC specifications is not generated. (This may occur due to the increased load at the time of training, but you can use the software if no error logs are generated during normal operation.) Or, the software stops or other malfunctions occur. If “The number of operation requests exceeds the processing limit” error log occurs, see the chapter 4 of IM ALSO 11B06H01-01EN When the above conditions are met, you may continue to use the service after the free period by purchasing a paid license. Track long-term trends to help maintain your GC. If you cannot confirm the above items and your free period has expired, please try during the paid period. -
Page 12: Paid License
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Paid License This section describes the usage considerations, types, and purchase flow for paid licenses. Paid License Usage Notes ● A license for this software can be purchased for each monitored GC. ● This service is not available for GCs with an ID different from that of the contract at the time of purchase. ● Renew the paid license before the license expiration date to continue to use. ● The license period is continuous from the start of use to the end of use, and cannot be stopped or canceled in the middle of the license period due to any reason such as stoppage of GC main unit, PCAS, GCAI. ● On the quotation, licenses for more than 12 months are split into 12 months (suffix code for 12 months) + 1 to 11 months (suffix code for 1 to 11 months), but are delivered as a single license. (Example) If you want to purchase a license for 22 months: 22 months (single license) = 12 months + 10 months (two suffix codes on the quotation) No configuration changes are required to use the license. 3.2 Types of Paid Licenses The paid licenses include “New License”, “Additional license”, which add GC to be monitored, and “Renewal License”, which extends an existing license period. -
Page 13: Purchase Flow Of Paid Licenses
Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Purchase Flow of Paid Licenses The flowchart for purchasing a paid license is shown below. 0. Check operation with Trial-License Renewal license 1. Request File Output 6. License activation 2. Send Request File 5. Receipt of the license File 3. - Page 14 Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 Receipt of the quotation Depending on the contents of your request file, the YOKOGAWA sales representative in charge will send you a quotation. Ordering Check the contents before placing your order with the application form at that time. Receipt of the license file After the order is confirmed, a license file which is made according to the quotation is sent from the YOKOGAWA representative. License activation Select [License] > [License Activation] on the menu bar, select the license file that was received in 5. Verify that the license has the correct license details. After the verification, follow the on-screen instructions to activate the license. For details on how to authorize licenses, refer to Chapter 1 of the “Gas Chromatograph AI Maintenance ALSO Support Operation Manual” (IM 11B06H01-01EN) License activation validity Table 3 License Types and Request File Output Conditions Type Activation validity License validity period New (Add) Until the month in which the purchased license From the start month to the end of the expires.
- Page 15 Gas Chromatograph AI Maintenance Support Installation and License Guide For GC8000 n Validity of free trial licenses when purchasing paid licenses You can renew a free trial license to a paid license following a free trial license period. (Case.1) In this case, the license fee will be charged after the free trial license expires. Case1 When purchasing an additional license for a free trial license ID6. Year 20XX/ 20XY/ Month • • • ID:1 ID:3 ID:6 Be aware of the following case. (Case2) If the expiration date of the existing license ID is earlier than the expiration date of the free trial license, the free trial license will expire at the same time as the existing license expiration date. In the system, the free trial license expiration date will be overwritten. To prevent this, be sure to renew only the existing license ID first. Then order the license ID you are assigned for the free trial license. That way, the free period will not be overwritten and the maximum period will be valid. Case2 When a free trial license ID:6 is expected to expire beyond the existing paid license expiration date. Year 20XX/ 20XY/ Month •...
-
Page 16: Revision Information
Revision Information Title : F or GC8000 Gas Chromatograph AI Maintenance Support Installation and License Guide Manual number : TI 11B06H01-01EN Mar. 2023/1st Edition Newly released Yokogawa Electric Corporation 2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750, JAPAN http://www.yokogawa.com/ TI 11B06H01-01EN Mar. 17, 2023-00...
