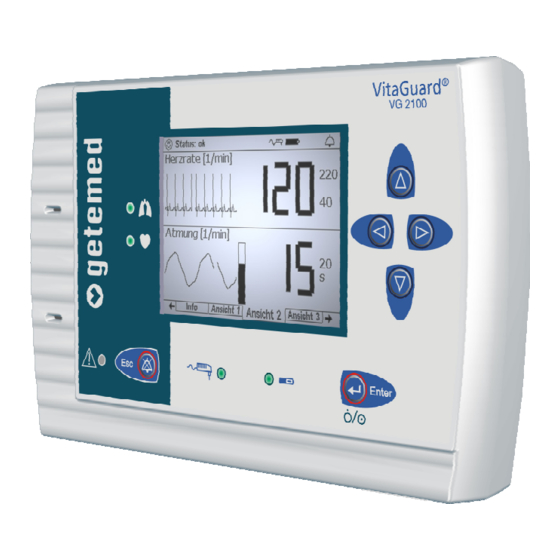

VitaGuard® VG 2100 – short instructions
Amplitude and Basal
impedance of the
respiration signal
LEDs flash syn-
chronously with
respiration and
heart beat
Respiration bar
LED „Alarm" flashes
red for physiological
and yellow for
technical alarm.
This instruction leaflet does not replace the manual. If you
are not familiar with the manual, the patient's health may
be at risk. Please take sufficient time to read the manual.
Quality of ECG
Amplitude
LED "External
power adapter"
<Esc> key for pausing the acoustic
alarm and to exit menus
Current value of
the respective
vital function
LED "Rechargeable
battery is loading"
Currently set
alarm limits
Navigation
keys
<Enter> key
for switching on
and confirming
settings
Advertisement
Related Manuals for getemed VitaGuard VG2100
Summary of Contents for getemed VitaGuard VG2100
- Page 1 VitaGuard® VG 2100 – short instructions This instruction leaflet does not replace the manual. If you are not familiar with the manual, the patient’s health may be at risk. Please take sufficient time to read the manual. Quality of ECG Amplitude and Basal Current value of Amplitude...
- Page 2 ECG deviation, Colour coding of the electrodes The respiration and heart signals are detected using the same elec- trodes which should be replaced every day. On infants, arrange the electrodes as depicted in Fig. a. This electrode configuration has often proved successful because the abdominal wall of infants clearly moves synchronously with the respiration.
- Page 3 Summary of steps before monitoring Insert the battery or batteries (do not switch on yet!). Use the external power adapter to connect VitaGuard® to the supply net- work (do not switch on yet!). Connect the ECG patient cable to Vi- External taGuard®.
- Page 4 Data must be stored before the device finally switches off. For this reason, VitaGuard® needs about another two seconds after the keys are released until it switches off completely. Distributor: Manufacturer: getemed Medizin- und Informationstechnik AG Oderstraße 77 D-14513 Teltow Tel.
