Assembly, Installation, Operation and Maintenance Instructions
Dealer / Installer:
Provide a copy of these Instructions to the end user of this product. These
Instructions provide important operating and safety information for proper
usage of this product. Demonstrate the proper use of the product with the
end user. Have the end user demonstrate that they understand the proper use
of the product.
End User:
Read and follow all instructions included in this manual. Ask your Dealer /
Installer for assistance if you do not understand the proper use of the product.
Never remove any decals from the product.
#
DESCRIPTION
1
BALL PLATE ASSEMBLY
2
BACKING PLATE
3
3/8"-16 X 3-1/2" HEX BOLT
IMPORTANT
: THIS PRODUCT IS
TRAILER FRAME
Tools Needed
9/16" WRENCH & SOCKET
TORQUE WRENCH
See www.huskytow.com for Warranty Information / Tech Support. © 2014 Husky Towing Products
CLAMP-ON SWAY CONTROL
BALL MOUNT

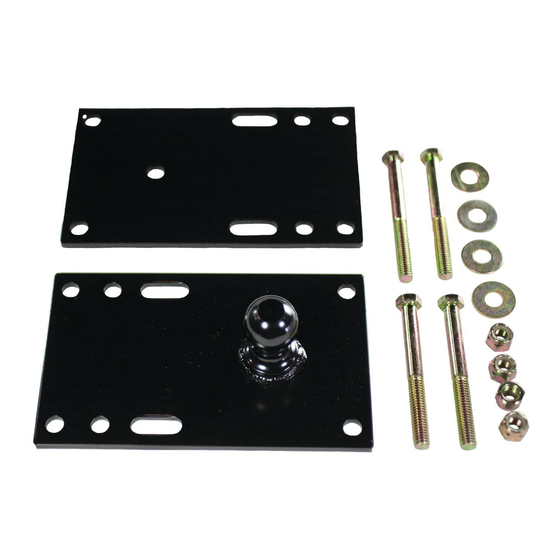

PARTS INCLUDED
ONLY
INTENDED FOR USE WITH 2" TO 2-3/4" TRAILER FRAMES.
5
2
All Products limited to Vehicle Tow Rating; see Vehicle Owners Manual
August 13, 2014‐Rev 1 Page‐1
QTY
#
1
4
1
5
4
Part # 38964
DESCRIPTION
3/8"-16 NUT
3/8" WASHER
4
QTY
4
4
3
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Husky 38964
Summary of Contents for Husky 38964
- Page 1 Assembly, Installation, Operation and Maintenance Instructions CLAMP-ON SWAY CONTROL BALL MOUNT Part # 38964 Dealer / Installer: Provide a copy of these Instructions to the end user of this product. These Instructions provide important operating and safety information for proper usage of this product.
- Page 2 See Fig. 2A. See sway control instructions for the correct distance. For the Husky Friction Sway Controls part # 34715 & 37498; measure 24" from the center of the coupler ball socket down the side of the frame to the center of the ball on the ball plate assembly (#1).
- Page 3 PLACE THE 3/8” FLAT WASHERS (#5) UNDER THE HEAD OF THE 3/8” HEX BOLTS (#3) AND 3/8” LOCK NUTS WHEN THE SLOTS IN THE BALL PLATE ASSEMBLY (#1) AND THE BACKING PLATE (#2) ARE USED. See Fig. 3. 4:Tighten ALL 3/8” hardware to 30 ft. lbs. FIG. 3 All Products limited to Vehicle Tow Rating; see Vehicle Owners Manual See www.huskytow.com for Warranty Information / Tech Support. © 2014 Husky Towing Products August 13, 2014‐Rev 1 Page‐3...
