EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,
EVOFR800KIT

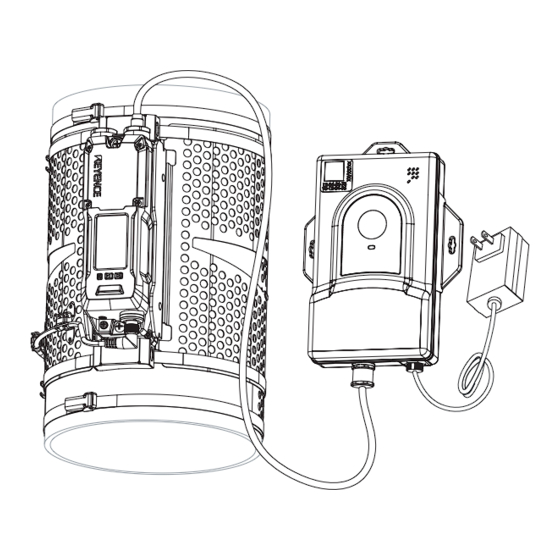

Evolution Flow Sensor Module, Clamp-on Meter
Installation Guide
Model Numbers
☐
EVOFR200KIT FLOW SENSOR, Clamp-on Meter,
1-1/2 to 2"
☐
EVOFR300KIT FLOW SENSOR, Clamp-on Meter,
2-1/2 to 3"
☐
EVOFR500KIT FLOW SENSOR, Clamp-on Meter,
4" to 5"
☐
EVOFR800KIT FLOW SENSOR, Clamp-on Meter,
6" to 8"
Repair Parts
☐
EVOAPWR24
Replacement Power Supply
24VDC
Architectural/ Engineering Specification
Symmons Evolution EVOFR200KIT, EVOFR300KIT, EVOFR500KIT, EVOFR800KIT Includes flow sensor module, 24 V
DC power supply, 30 foot M12 cable, and clamp-on meter (pipe sizes ranging from 1-1/2" to 8"). 10 Year Commercial
Warranty. FCC rules compliant.
Symmons Industries, Inc.
Copyright © 2022 Symmons Industries, Inc.
Location:
Evolution
■
■
31 Brooks Drive
Braintree, MA 02184
■
symmons.com
Feature Highlights
•
Flow Sensor Meter
•
24V DC Power Supply 60"
•
30 Foot M12 Cable
•
Clamp-On Meter - Pipe Sizes ranging from 1-1/2" to
8" - Please see "Supported Pipe Diameter" Chart on
dimension page for appropriate sizing.
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Compliance
•
IC: 24889-WW08189
•
FCC ID: 2ASQP-WW08189
This device complies with part 15 of the FCC Rules.
■
Phone: (800) 796-6667
■
■
gethelp@symmons.com
■
Fax: (800) 961-9621
■
ZV-3701 REV 0
121322
