Magnavox MRD500 Quick Use Manual

Quick-Use
Quick-Use
Guide
Guide

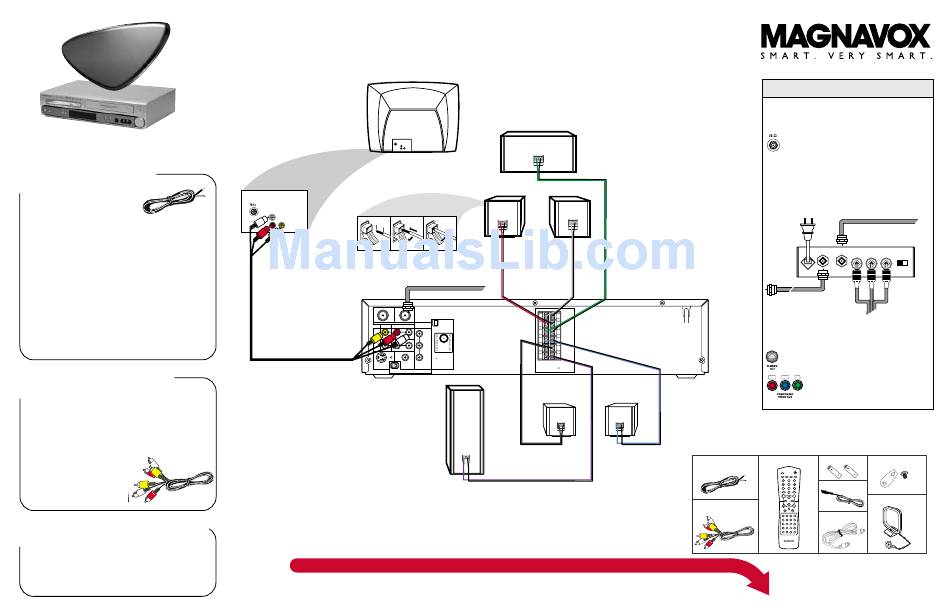

C onnecting your MRD500
Home Cinema System ...
1 SPEAKER CONNECTIONS
a. • Connect the red/black
speaker wires to the FRONT
Right speaker and to the
System's FR jacks.
• Connect the white/black speaker wires to the
FRONT Left speaker and to the System's FL jacks.
• Connect the green/black speaker wires to the
CENTER speaker and to the System's C jacks.
b. • Connect the gray/black speaker wires to the
REAR (Surround) Right speaker and to the SR
jacks on the System.
• Connect the blue/black speaker wires to the
REAR (Surround) Left speaker and to the SL
jacks on the System.
c. • Connect the purple/black speaker wires to the
Subwoofer and to the W jacks on the System.
Match the wire colors to the jack colors.
Colored wires go to the + jacks.
VIDEO/AUDIO CONNECTION
2
Connect the supplied yellow video cable to the
yellow VIDEO (DVD/VCR OUT) jack on the System
and to the VIDEO IN jack on the TV.
Connect the supplied red and white Audio cables
to the AUDIO (DVD/VCR OUT) jacks on the System
and to the AUDIO IN jacks on the TV.
Cable
IMPORTANT! All five speakers
will produce sound only when
the TV show is broadcast in a
Surround Sound format.
3 ANTENNA/CABLE TV CONNECTION
Connect your Antenna or Cable TV signal to
the System's TV ANTENNA IN jack. This brings
TV channels into the System so you can use the VCR
to record TV programs.Watch TV programs by putting
the System in VCR mode and changing TV channels at
the System.
Use this simple and quick way to watch your favorite
DVD movie and enjoy your Home Cinema experience!
REAR OF TV
(example only)
AUDIO Connecting Speaker Cables
(x
IN
VIDEO
IN
.0 47
(1 2m
2
a
OUT
VIDEO
DVD/
VCR
OUT
VCR
IN
S-VIDEO
See the other side to play a DVD and arrange the speakers.
CENTER Speaker
+ -
FRONT Speaker (Right)
FRONT Speaker (Left)
+ -
"
m )
P U
S H
IN
PUSH
DOWN
b c
3
Antenna or Cable TV Signal
IN
TV ANTENNA COMPONENT AM
R AUDIO L VIDEO OUT
Y
Pb/Cb
FM
Pr/Cr
(75 )
DIGITAL
AUDIO OUT
OUT COAXIAL SPEAKER (4 )
P I
PROGRESSIVE
+ -
1c
+ -
REAR (Surround)
Speaker (Right)
Subwoofer
1a
+ -
FL
FR
C
SL
SR
W
1b
+ -
REAR (Surround)
Speaker (Left)
Speaker and
Subwoofer Cables
Audio/ Composite Video
Cable
H H
ELPFUL INTS
Your TV determines which type of video con-
nection you can make with the DVD Digital
Home Cinema System.
If your TV has a single Antenna In
jack, you need an RF Modulator to
view DVDs on your TV.
The RF Modulator converts the Video signal
from the System so it can play through the
TV's Antenna In jack.
See your electronics retailer or contact
Magnavox for RF Modulator availability.
RF coaxial cable to TV
Back of RF Modulator
(example only)
ANT IN TO TV
AUDIO IN
VIDEO
IN R L
CH3 CH4
Antenna or Cable TV Signal
Audio/Video cables from
DVD Home Cinema System
If your TV has S-Video or
Component (PbPrY) jacks,
connect the System using one of
Pr/Cr Pb/Cb Y these for a higher quality connec-
tion. See the Owner's Manual for
details.
These items should be in the box.
If not, call Magnavox at 1-800-705-2000.
Remote Control 2 AA Batteries Brackets and Screws
FM Wire Antenna
(x5)
(x6)
DISC
MENU OK
AM Loop Antenna
1 2 3 RF Coaxial Cable
4 5 6
7 8 9
+10 0 A-B
— +
