User manual
General information
* It is essential that you and any other operator of this product read and
understand the content of this manual before installing and using this product !
* In order to avoid operating errors, these manual must be accessible
to the staff at all times.
* The Hoverboard should only be used for the purpose as described.
Please refer particularly to the instructions of the used stretcher.
* The illustrations do not necessarily correspond to the delivered equipment
and are not true to scale.
* We take no liability for damages caused by operating errors
or incorrect assembly or repair.
* Please pay close attention to the country-related, applicable safety regulations
for patient transfer.
* Subject to technical changes.
HOVERBOARD
GmbH
Gewerbepark 10
HOVERBOARD
HOVERBOARD
A-6068 Mils - AUSTRIA
Edition: 4/2023
www.hover.at
Advertisement
Table of Contents
Related Manuals for Hoverboard Vivibase
Summary of Contents for Hoverboard Vivibase

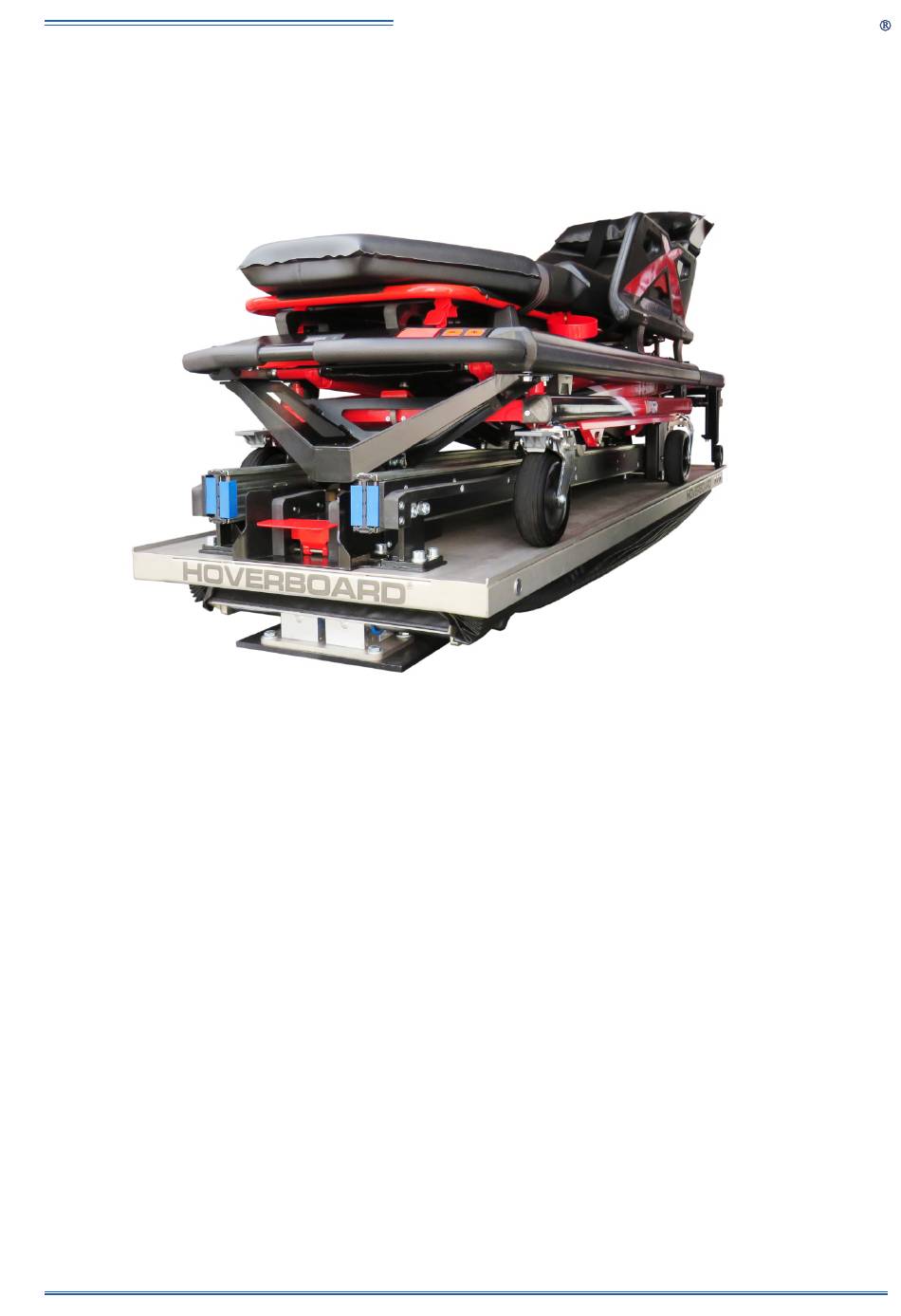

- Page 1 * In order to avoid operating errors, these manual must be accessible to the staff at all times. * The Hoverboard should only be used for the purpose as described. Please refer particularly to the instructions of the used stretcher.
-
Page 2: Specification

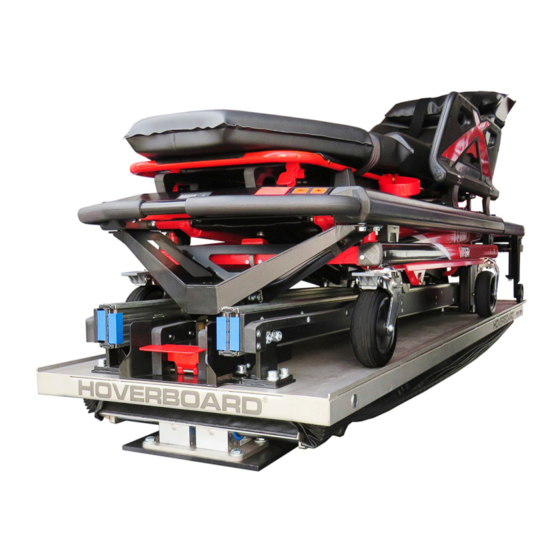

HOVERBOARD HOVERBOARD Vivibase Specification 1... Pneumatic suspensions with automatic weight adjustment from 40-520 kg/88-1146 lbs and hydraulic shock absorbers. Total vertical stroke 170 mm/6.7" 2... Stretcher mounting platform 3... Lateral movement device with pneumatic release (option) 4... Switch box, contains: a) 1x Relay for compressor, 12V... -
Page 3: Technical Data
HOVERBOARD Vivibase Assembly The Hoverboard may only be installed by qualified personnel (e.g. car technicians or body fitters) and in accordance with the assembly instructions supplied. The assembly operator is responsible for damages caused by improper assembly ! Technical data... -
Page 4: Operation
After successfull assembly and electric connection, start ignition of vehicle and turn on the blue main switch. The Hoverboard now automatically adjusts to the patient's weight and rises to the level for optimal suspension comfort, the switch lights up blue. -
Page 5: Maintenance
Maintenance One of the many advantages of the Hoverboard-types Airbase, Powerbase, Inbase and Vivibase compared to conventional stretcher tables is that they are not classified as medical devices according to Medical Devices Act (MPG) and are therefore not required to be checked mandatory every year. - Page 6 All Hoverboards are tested in accordance with the latest standards by DEKRA in Klettwitz and comply with EN 1789: 2020, EN 1865-5: 2012 and ECE R17 (20 g test). The Hoverboard Powerbase has also been tested by Stryker Medical EMS (USA) and is homologated for use with the Stryker PowerLoad and PowerPRO XT.
-
Page 7: Spare Parts
HOVERBOARD Vivibase Spare parts Air suspension 30311 Air cushion 30302 30620 > with shock absorber Adjustable shock absorber 30621 > without shock absorber 30057 Magnetic valve block 30058 Magnetic valve 1 30059 Magnetic valve 2 30291 Level control valve 30292 Valve control bow... - Page 8 HOVERBOARD Vivibase Spare parts 30211 External compressor 62002 External box 30513 JPT-crimp female (without Box) (without compressor) 30514 JPT-crimp male 62003 External box 30517 JPT-connector 2 pins f (with compressor) 30518 JPT-connector 2 pins m 35060 JPT-connector 6 pins f...
- Page 9 HOVERBOARD Vivibase Spare parts 30520 Load relay 30083 Bellows, without 31283 30521 Two-state relay lateral movement device Cable fixer, self-adhesive 30530 Relay socket 30084 Bellows, with lateral movement device 35010 Main switch 35011 CPR switch 35012 Pushbutton for latching (blue)
- Page 10 HOVERBOARD Vivibase Spare parts 31020 hose connector 4-4-4 30251 fuse holder Connector and cable 31021 hose connector 4-4 30252 fuse 30A 35022 for front pushbutton 31022 hose connector 6-6 30253 fuse 35023 for rear pushbutton 31023 hose connector 6-4 35024...
- Page 11 HOVERBOARD Vivibase Spare parts Terminal block Terminal block 31270 grey 35071 grey 31271 green-yellow 35072 orange 31272 blue 35073 red 31274 jumper 35074 blue 31275 orange 35075 black 35076 jumper 2-way 35077 jumper 4-way...
- Page 12 HOVERBOARD HOVERBOARD Vivibase In line with our continuous improvement program, we are always grateful for your suggestions, requests, complaints and proposals for improvement. Therefore we look forward to hearing from you at Phone +43 - 660 - 800 9000 Mail info@hover.at...
