- Page 1 User Manual CT220B Label Printer Please read this user manual guide carefully before operating the product.
-
Page 2: Table Of Contents
Contents English Version Packing List ........1 Appearance Component ..... 2 Function Description ......2 Descrition Of Indicator Lights ..... 3 Paper Roll Loading ......4 Mobile Phone Printing Instruction ..6 Computer Printing Instruction ..11 Trouble Shooting ....... 15 Specification ........ - Page 3 Katalog Deutsche Version Packliste Aussehen Funktionsbeschreibung Beschreibung der Anzeigeleuchten Etiketten-Installation Anleitung zum Drucken mit dem Mobiltelefon Anleitung zum Drucken auf dem Computer Problemdiagnose Spezifikation...
-
Page 4: Packing List
Packing List 1* Printer 1* USB Cable 1* 40x30mm Installation Guide white Labels... -
Page 5: Appearance Component

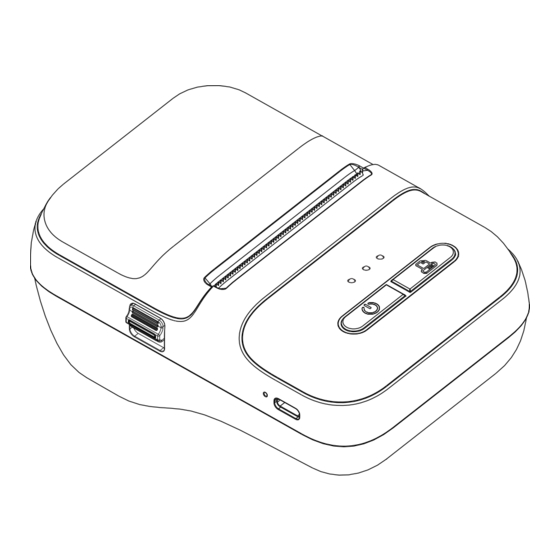

Appearance Component Open the cover Print head Blue Rubber roller Green Paper cutter Top cover open button Paper feeding Power supply Reset button Function Description Label mode Diagram Button Operating Features Press and hold Power ON/Off Power for 2 seconds switch Print self-test page Double-click... -
Page 6: Descrition Of Indicator Lights
Bill mode Diagram Button Operating Features Press and hold Power ON/Off Power for 2 seconds switch Print self-test page Double-click Advance paper by 10 mm Advance paper until release Switch to Label mode/ Receipt mode Description Of Indicator Lights Indicator Status description Indication status light color... -
Page 7: Paper Roll Loading
Paper Roll Loading ① The paper should load to the left.The thermal side for printing should face down.(fig.1) ② There is a blue spool holder bracket that should be snug against the paper. Push forward to lock the paper before printing,and push back to unlock.(fig.2) ③... - Page 8 fig.2 fig.3 fig.4...
-
Page 9: Mobile Phone Printing Instruction
Mobile Phone Printing Instruction Scan the QR code below with a mobile phone to download "Clabel trade". Please follow the software instructions below to operate the software. Clabel trade Clabel trade Download label editing app "Clabel trade"from Google Play Store or Apple APP Store and install it. - Page 10 ① Enter the mobile phone ② Enter the clabel trade system settings and set editing software and Bluetooth to click the "Connect" button.
- Page 11 ③ Click the Bluetooth ④ Click the new tab. name at the beginning of CT220B to connect.
- Page 12 ⑤ Enter label name, ⑥ Editing funtion: Text, Barcode, QR code, Line, Graph, width, height click Date time, Image, Logo, Scan, Excel, Table. Set: New after. Label name, Label size(width/height), Label rows. Attr: Date type, Barcode types, Zoom way, Font size.
- Page 13 ⑦ The area with size is the ⑧ Add the print content, label content editing area. and then click [icon] in the upper right corner.
-
Page 14: Computer Printing Instruction
Computer Printing Instruction Clabel trade Visit website:https://ga.ctaiot.com to download "Clabel trade" and driver. Download the driver from the above url and read the instructions on driver installation/software installation on the website. - Page 15 fig.3 fig.4 Notice before installation This driver is applicable to the CLABEL brand label printer. Make sure the printer is turned on before installation and connected to the computer with a data cable.Setup will automatically detect printer status， Help you install printer drivers easily.
- Page 16 ② Open the downloaded clabel trade editing software. ③ Click new, enter the label width and label height, and then click OK.
- Page 17 ④ Add the printed content to the editing area and click Print. ⑤ Select the driver, enter the print quantity, and click Print to finish printing.
-
Page 18: Trouble Shooting
- Check the printer preview Machine does - The model is not page for the correct model of printer selected, the correct not work on chosen correctly. model will be shown with the computer machine model "CT220B". - Page 19 Symptom Cause Correction - Print the self-check page and check if the black line on the self-check page is normal. - Select other font in the app, The print is not - Printing apprears and adjust the font size and clear and broken needle.
- Page 20 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority tooperate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not...
-
Page 21: Specification
Specification Print technology Thermal printing Print resolution 203dpi Media type Continuous paper, gap paper Print speed 50mm/s Label width 20-58mm Battery capacity 2000 mAh Interface USB,Bluetooth Power input Output,DC 5V=2A Machine size 128mm*84mm*61mm Machine weight 290g CODE128,CODE39,CODE93,EAN8, Barcode EAN13,EAN128,UPC-A,UPC-E,ITF14 QR code QR CODE Andiod 6, iOS10, Windows XP, Supported operation system...
Need help?
Do you have a question about the CT220B and is the answer not in the manual?
Questions and answers
Hi, ct220b printer test ,paper come out but no ink, only blank . How to troubleshoot inside printer
To troubleshoot a Clabel CT220B printer printing blank pages:
1. Check if the printer is in the correct print mode. If not, switch to print mode by pressing and holding the power button and paper feeding button together for three seconds. A self-test page will print to confirm the mode.
2. Select a different font in the app and adjust the font size if the print is not clear.
3. Adjust the print density: Choose the print content > Print > Print settings > Print density.
4. Check for a broken or dirty needle and clean it if necessary.
If these steps do not solve the issue, further inspection of the printer may be needed.
