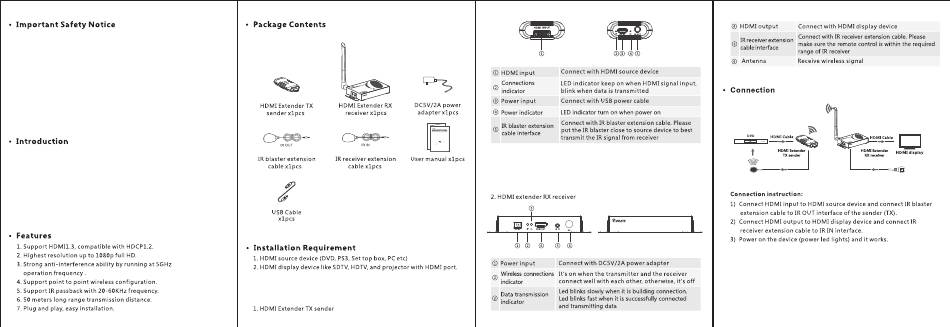

Orei WHD-100-K User Manual

1. Please pay attention to all warnings and read all instructions carefully
prior to using the device.
2. Do not expose the device to rain, moisture or liquid.
3. Keep the receiver and transmitter device clear of ever ything and do
not place anything on top of them.
4. Do not open or attempt to repair the device.
5. Keep in well ventilated area to avoid any overheating.
6. Turn off source device during installation.
7. Do not unplug power when device is in use.
8. Power the device using the included 5V/2A DC power supply adapter
only. If using other adapters please make sure the specs are identical.
The OREI WHD-100 transmitter extends HDMI signal wirelessly from
source device to display device up to 100 feet using HDbitT advanced
transport protocol. This setup requires no cables between the Sender
(TX) or the Receiver (RX) thus resulting in a clean and easy setup.
Note: The actual transmission distance will var y depending on the
environment and the setup area. Walls, bricks, stones, glass and other
obtrusions can shorten the signal coverage or cause signal loss.
· Functions
Note: The transmitter dongle can be powered from the HDMI source with
a USB port. If the transmitter connection is not stable then connect a 5V
USB power supply directly to the dongle.
Note:
1. Signal loss may occur when transmitting signal through wall, glass
and other obstacles. Install device in a clear area with least obstacles.
2. Other wireless signals such as wirelss mouse, cordless phones and
microwaves can interfere with the setup
