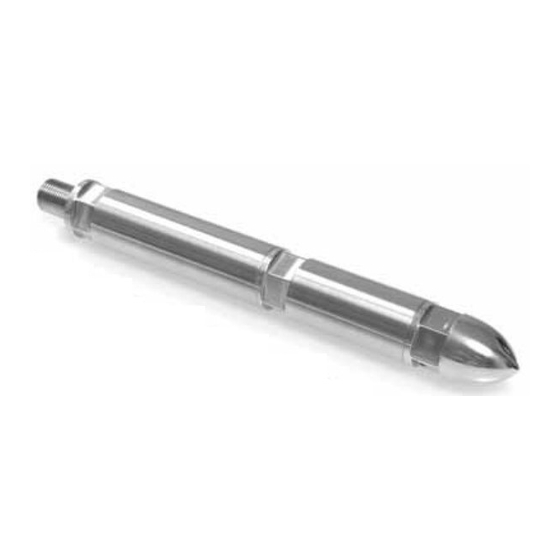

- Page 1 PPS28 Quartz Memory Gauge U s e r M a n u a l ( R e v . 0 7 ) Pioneer Petrotech Services Inc. #1, 1431 - 40th Ave. NE Calgary, AB T2E 8N6, Canada Phone: 1-888-PP-GAUGE (774-2843) E-mail: infopps@pioneerps.com...
-
Page 2: Revision History
REVISION HISTORY 2002-11-15 Initial release Revision Date Comments 2007-01-10 Additional information for PPS28-200C gauge 2008-04-02 Revision (metal to metal seal added to the housing) 2011-01-21 Revision (Release of modified field operating procedures) 2011-06-15 Revision (Information about redundant memory, pressure trigger) -
Page 3: Table Of Contents
3.2 PPS28-150C/177C Gauge ......................4 3.3 PPS28-200C Gauge ........................4 3.4 PPS28SE-150C/177C Gauge ....................... 4 4. Getting Started ........................5 4.1 Working Mode of PPS28 Gauges ....................5 4.2 Materials ............................5 4.3 Inspecting Gauges ........................6 4.4 Programming Gauges ........................8 4.5 Activating and Testing Battery Packs .................. -
Page 4: Scope
1-888-PP-GAUGE (774-2843) www.pioneerps.com Scope This manual will apply to all operations that work with PPS28 series memory gauges. This manual includes important information about operation of PPS28 gauges. Please read it carefully before operating the gauges. 1. Objective This manual is in place to assist the testing personnel involved in field operations with the required skills for programming, deployment, retrieval, and data extraction (downloading of data files from the tools), when working with the PPS28 series gauges. -
Page 5: Introduction
Pioneer Petrotech Service (PPS) has designed and developed quartz electronic memory pressure 3.1 Overview gauges since 2001. A series of quartz memory gauge products (PPS28) have been developed for critical well testing in hostile well conditions. The PPS28 quartz pressure gauge consists of a Quartzdyne digital quartz pressure transducer and our advanced electronic circuit and mechanical design. -
Page 6: Getting Started
Stand-by Mode The gauge is in Stand-by Mode when the gauge is not sampling (i.e. in between the samples). PPS gauges are designed to switch to Stand-by Mode automatically between samples. Communication Mode The gauge is in Communication Mode when the interface box and cable are connected to the gauge and the computer. -
Page 7: Inspecting Gauges
(1) Complete a bench test by plugging –in a battery pack for 10mins; Procedure: (2) Connect a PPS USB download interface to the gauge (Fig. 1) and a computer to download data and check if the record data is normal;... - Page 8 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com (3) Run SmartView and use “Diagnostics” in Options Tab to test the gauge (Fig. 2). Click “Start” Button Fig. 2 The pressure and temperature reading should be reasonable at atmospheric pressure and ambient temperature.
-
Page 9: Programming Gauges
(1) Select the Program tab (Fig. 3) Fig. 3 (2) PPS SmartView software will display the tool program. To make sure that there is no doubt regarding the tool program you can verify it by clicking Clear all Steps and then Get Program from Tool. - Page 10 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com Fig. 4 If the program is not the same as the one desired for the job to be done, click Clear All Steps, then complete the fields for the required gauge sampling rate, and then click Program the Tool (Fig.
- Page 11 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com (3) Saving the Program file for future use (Fig. 6) Click on Save To File, save the file to a convenient location on your drive (by default the file...
-
Page 12: Activating And Testing Battery Packs
4.5 Activating and Testing Battery Packs To activate and test a battery pack: Using a PPS Battery Tester to activate the battery pack (Fig. 8) Plug-in the battery, the battery’s LED will turn on Press the black button about 15 sec and release ... -
Page 13: Installing Battery Pack
(Fig. 9) ) Document all information for each well in Gauge Control Sheet (PPS28).xls. The exact date and time when the batteries were connected to each gauge must be documented. -
Page 14: Assembling Battery Housing
(6) Using a torque wrench and an open-end wrench to assemble the bullnose with the gauge at 70ft-Ibs. The size of wrenches is dependent on OD size of the PPS28 gauge that you are assembling. For information about wrench size, please see “Appendix C: Accessories”... - Page 15 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com Important Application Notes: If a gauge is powered by a 180 ° C or 200 ° C battery pack and the ambient ° temperature is lower than 20 C, the battery pack shall NOT stay at low temperature.
-
Page 16: Downloading Data
4.8 Downloading Data 4.8.1 Using the same Gauge Control Sheet (PPS28).xls that was used when running the gauges, record the exact date and time at which the gauges were pulled from the nipple, as well as the time the batteries were released from each gauge (the time the batteries were released will help you either verify if the time they were plugged into the gauges was recorded correctly or to calculate this time if it was not recorded initially). -
Page 17: Maintenance
Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com 5. Maintenance The PPS28 gauges must be well maintained in order to ensure successful operations. There are two levels of maintenance should be implemented: Field maintenance Manufacturer’s maintenance ... - Page 18 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com Fig. 13 Page 17...
- Page 19 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com 5.1.2 O-rings Location (Fig. 14) PPS28-177C/200C (1.27”) C-ring O-ring size 118 O-ring #1 size 119 O-ring #2 size 119 PPS28-150C/177C (1.25”) O-ring #1 size 212...
- Page 20 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com 5.1.4 Cleaning Buffer Oil Tube Take buffer oil tube off the housing by two open-end wrenches (7/16” and 5/8”). Put the buffer oil tube into gasoline and clean it.
- Page 21 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com 5.1.6 Checking battery housing (Fig. 16) Check the battery housing bore if its surface is scratched and uneven. Fig. 16 Page 20...
-
Page 22: Manufacturer's Maintenance
Full function test Failed components and parts replace Calibration and verification Failure analysis It is recommended that PPS28 gauges should be recalibrated at least once a year to keep its normal operating condition and performance. Page 21... -
Page 23: Troubleshooting
Could not download job memory of the gauge and then send to files PPS for data retrieving. For more information, please contact PPS for supports. Thank You! Pioneer Petrotech Services Inc. #1, 1431 - 40th Ave. N.E. Calgary, Alberta, Canada T2E 8N6... -
Page 24: Appendix A: Specifications
PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com Appendix A: Specifications PPS28-150C/177C Quartz Up to 25000psi Sensor Type ±0.02% FS, ±0.015% FS (Typically) Pressure Range 0.00006% FS Pressure Accuracy <0.02% psi/Year FS Pressure Resolution 150°C (302°F), 177°C (350°F) - Page 25 PPS28 Quartz Memory Gauge Pioneer Petrotech Services Inc. User Manual infopps@pioneerps.com 1-888-PP-GAUGE (774-2843) www.pioneerps.com PPS28-200C Quartz Up to 25000psi Sensor Type ±0.02% FS, ±0.015% FS (Typically) Pressure Range 0.00006% FS Pressure Accuracy <0.02% psi/Year FS Pressure Resolution 200°C (392°F) Pressure Drift ±0.2°C...
-
Page 26: Appendix B: Power Consumption Table
68.0 582,350 3235 83.0 477,100 3976 128.0 309,370 5156 Sampling Rate (s) mAs / sample Total Points Hours Days PPS28-177C, dual CC 180°C battery pack (22Ah) 11.0 7,200,000 2000 45.5 1,740,650 2418 53.0 1,494,340 4151 60.5 1,309,090 5455 68.0 1,164,700 6471 83.0... - Page 27 491,040 300,000 234,720 192,780 1071 142,080 1184 79,380 1323 Sampling Rate (s) mAs / sample Total Points Hours Days PPS28-200C, dual CC 200°C battery pack (18.0Ah) 3,600,000 1000 982,080 1364 600,000 1666 469,440 1956 385,560 2142 284,160 2368 158,670 2646...
-
Page 28: Appendix C: Accessories
Open end wrench 5/8” 01-AC-1161-A Syringe Syringe (5ml) 01-AC-1162-A Buffer oil High temperature silicone oil (5ml) 01-AC-1163-A Battery tester PPS battery tester 01-AC-0062-A1 USB cable PPS USB download cable 01-AC-1052-A Software CD PPS SmartView Software and PPS28 User Manual 01-AC-1164-A Page 27... - Page 29 Open end wrench 7/16” 01-AC-1160-A Syringe Syringe (5ml) 01-AC-1162-A Buffer oil High temperature silicone oil (5ml) 01-AC-1163-A Battery tester PPS battery tester 01-AC-0062-A1 USB cable PPS USB download cable 01-AC-1052-A Software CD PPS SmartView Software and PPS28 User Manual 01-AC-1164-A Page 28...
-
Page 30: Appendix D: Battery Packs
PPS 165°C 3×AA size battery pack Item Part Name Capacity (Ah) Connector 01-AC-0015-A8 4 pin PPS 180°C 3×AA size battery pack 01-AC-0011-A5 4 pin PPS 200°C 3×AA size battery pack For more information about PPS battery packs, please contact PPS for details. Page 29...
