Summary of Contents for Pitaka MagEZ

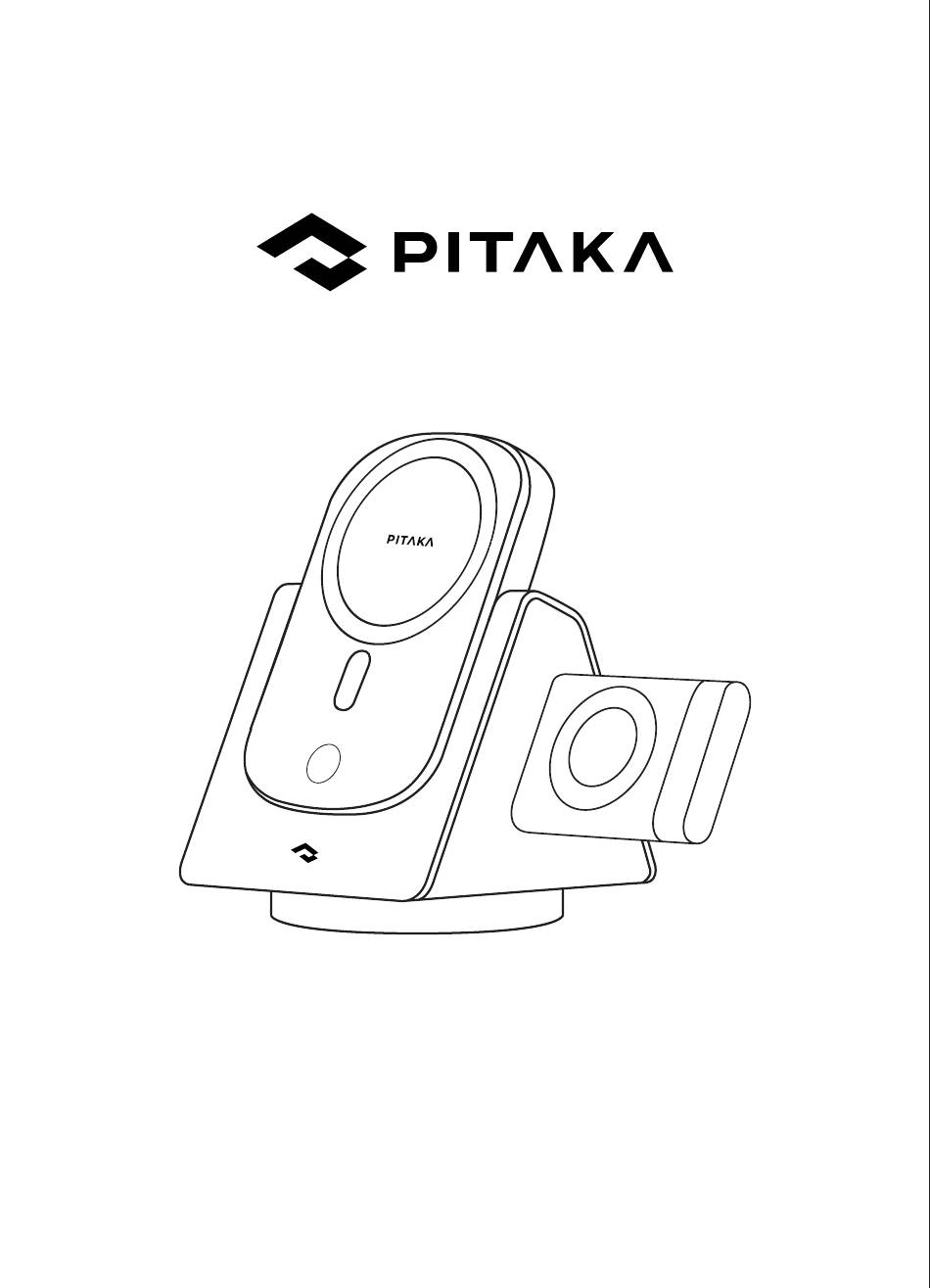

- Page 1 MagEZ Slider 2 & Power Dongle for Apple Watch User Manual...
-
Page 2: Table Of Contents
Contents Package Contents Features Compatibility Specs Quick Guide Buttons & LED Indicators Warranty Exclusions & Limitations Important Customer Service Legal Thank you for purchasing the MagEZ Slider. -
Page 3: Package Contents
Package Contents 1. MagEZ Slider 2 Dock *1 2. MagEZ Battery Pack 2 *1 3. Magnetic Earbuds Stand *1 4. Power Dongle for Apple Watch*1 5. 1m USB-C Cable*1 6. Document Kit*1 ① ② ③ ④ ⑤ ⑥... -
Page 4: Features
Features MagEZ Slider Charges the power bank, smartphone, Qi-enabled earbuds, and plug-in Type-C dongle. A 4000mAh magnetic power bank that charges at 5W/7.5W. A magnetic, adjustable wireless charging stand for earbuds. USB-C port for a 5W Apple Watch charging dongle. - Page 5 Built-in safety features, including overvoltage and overcurrent protection, overpower and short circuit protection, and electromagnetic field blocking. LED lights indicate charging status. The Battery Pack will double vibrate when its power drops below 10%. Power Dongle for Apple Watch MFi-certified 5W charging speeds Can use with any USB-C port Compatible with all Apple Watch models...
-
Page 6: Compatibility
Compatibility Compatible with iPhone 12/13/14 series without a case or with a MagSafe case and Samsung Galaxy S22/S23 Series with a MagEZ Case 2/3. Charges Qi wireless charging earbuds including AirPods, Samsung Galaxy Buds R170 and Galaxy Buds Pro R190 Charges all Apple Watch models. -
Page 7: Specs
Specs MagEZ Slider Specification Detail MagEZ MagEZ Slider Dock 2 Battery Pack 2 62mm Width 76.7mm 90.6mm 97.3mm Length 112mm 14.2mm Height/Depth Battery Capacity 4000mAh Power Type C Port (Input) DC 9V/2.22A Battery Pack Type C Port (Input) DC 5V/2A... - Page 8 AirPods Wireless Output Transmission Distance ≤ 6mm Transmission Efficiency ≤ 75% Operating Temperature 0-30℃ Storage Temperature -20-60℃ Requires a PD 20W Type-C charger. Power Dongle for Apple Watch Detail Specification Width 1.56in (39.8mm) Length 2.2in (56mm) Height/Depth 0.4in (10.4mm) Wireless Speed...
- Page 9 Type C Port (Input) DC 5V/1A Type C Port (Output) DC 5V/1A Operating Temperature -10-30℃ Storage Temperature -20-60℃...
-
Page 10: Quick Guide
Quick Guide Preparing Your Phone 1. Install your MagEZ Case 2/3 for iPhone 13/14, Galaxy S22/S23. ① ② 2. Or use your iPhone 13/14 with or without a MagSafe Case. - Page 11 Setting Up MagEZ Slider 2 1. Clean and dry your work surface. Peel off the base's protective film before placement. 2. Plug in the MagEZ Slider 2 using a 20W power adapter and cable.
- Page 12 3. When the switch is turned up, spin the dock to adjust angle. Or turn it down to fix the dock.
- Page 13 MagEZ Slider Dock Charging Your Phone 1. Slide the MagEZ Battery Pack into the dock. 2. Attach your phone to charge.
- Page 14 3. Remove your phone to leave the power bank in the dock. Charging Your AirPods or Other Qi Earbuds 1. Adjust the magnetic stand depending on the size of your AirPods wireless charging case.
- Page 15 2. Put your Earbuds on the stand to charge it horizontally or vertically.
- Page 16 Power Dongle for Apple Watch Charging Your Apple Watch 1. Remove the lid.
- Page 17 2. Magnetically attach the lid to the end of the dongle.
- Page 18 3. Insert the dongle into the MagEZ Slider USB-C port.
- Page 19 4. Plug the Dongle into any powered USB-C port to charge your Apple Watch. For example:...
- Page 20 MagEZ Battery Pack 2 Charging Your Phone 1. Attach the MagEZ Battery Pack to the back of your iPhone 12/13/14 (using a MagSafe case or not).
- Page 21 Charging the MagEZ Battery Pack 1. Slide it into the MagEZ Slider Dock that’ s connected to power.
- Page 22 2. Or connect it to a power adapter via the Type-C port and plug the adapter into the electrical socket.
- Page 23 Buttons & LED Indicators 1. Click the power button once on the MagEZ Battery Pack to see the battery charging level and activate wireless charging. If no device is placed on the charging area, wireless charging will power down after 40 seconds.
- Page 24 2. Double click the power button on the MagEZ Battery Pack to turn off wireless charging. 3. When the battery level is lower than 10%, the MagEZ Battery Pack will vibrate twice to remind you of low battery. When the battery level is between 1~10%, the power bank will vibrate twice every time you press the power button.
- Page 25 Note: 1. The Type-C port on MagEZ Battery Pack is used for input and output. 2. MagEZ Battery Pack has built-in safety features, including overvoltage and overcurrent protection, overpower and short circuit protection, and electromagnetic field blocking.
- Page 26 *Scan QR code for video instruction. 扫码查看操作视频...
-
Page 27: Buttons & Led Indicators
Buttons & LED Indicators Click the button on the MagEZ Battery Pack to see the battery charging level. When clicking the button once, the LEDs will light up as shown below: Battery Percentage Indicator When the MagEZ Battery Pack is plugged in, the LED indicators will light up and blink based on the remaining battery. -
Page 28: Faq
1. Is MagEZ Slider 2 compatible with power banks from MagEZ Juice 1/2? Both power banks from MagEZ Juice 1/2 are compatible with MagEZ Slider 2 2. Which devices and cases are compatible with MagEZ Battery Pack? MagEZ Battery Pack can attach to iPhone 12/13/14... -
Page 29: Warranty
At PITAKA, we are always striving to provide our customers with the best quality products. The PITAKA MagEZ Slider 2 and Power Dongle for Apple Watch are guaranteed for 12 months from the date of purchase. Both items are warranted to be free of defects in materials and function under normal use. -
Page 30: Exclusions & Limitations
fitness for a particular purpose, and you specifically agree that PITAKA shall not be liable for any special, incidental, indirect, punitive, or consequential damages of any type on any PITAKA product. In addition to and... -
Page 31: Important
Do not disassemble or replace any part of the MagEZ Slider. Only use the Type C PD 30W charger to power the MagEZ Slider. Do not place any foreign objects between MagEZ Slider and the mobile phone, so as not to affect the charging performance of the product. - Page 32 Do not burn the wireless power bank or throw the wireless power bank into a fire, as it may cause an explosion. Do not discard the wireless power bank in an ordinary garbage bin. The product should be charged once every 3 months during storage.
-
Page 33: Customer Service
Customer Service Tel: +852 9202 6223 Email: support@ipitaka.com Web: www.ipitaka.com Legal The manufacturer is not responsible for any damages to any device incurred through the use of this product. The manufacturer shall not, in any way, be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than... - Page 34 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 35 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
