Air Omni Lite User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Omni Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Pitaka Air Omni Lite

Summary of Contents for Pitaka Air Omni Lite

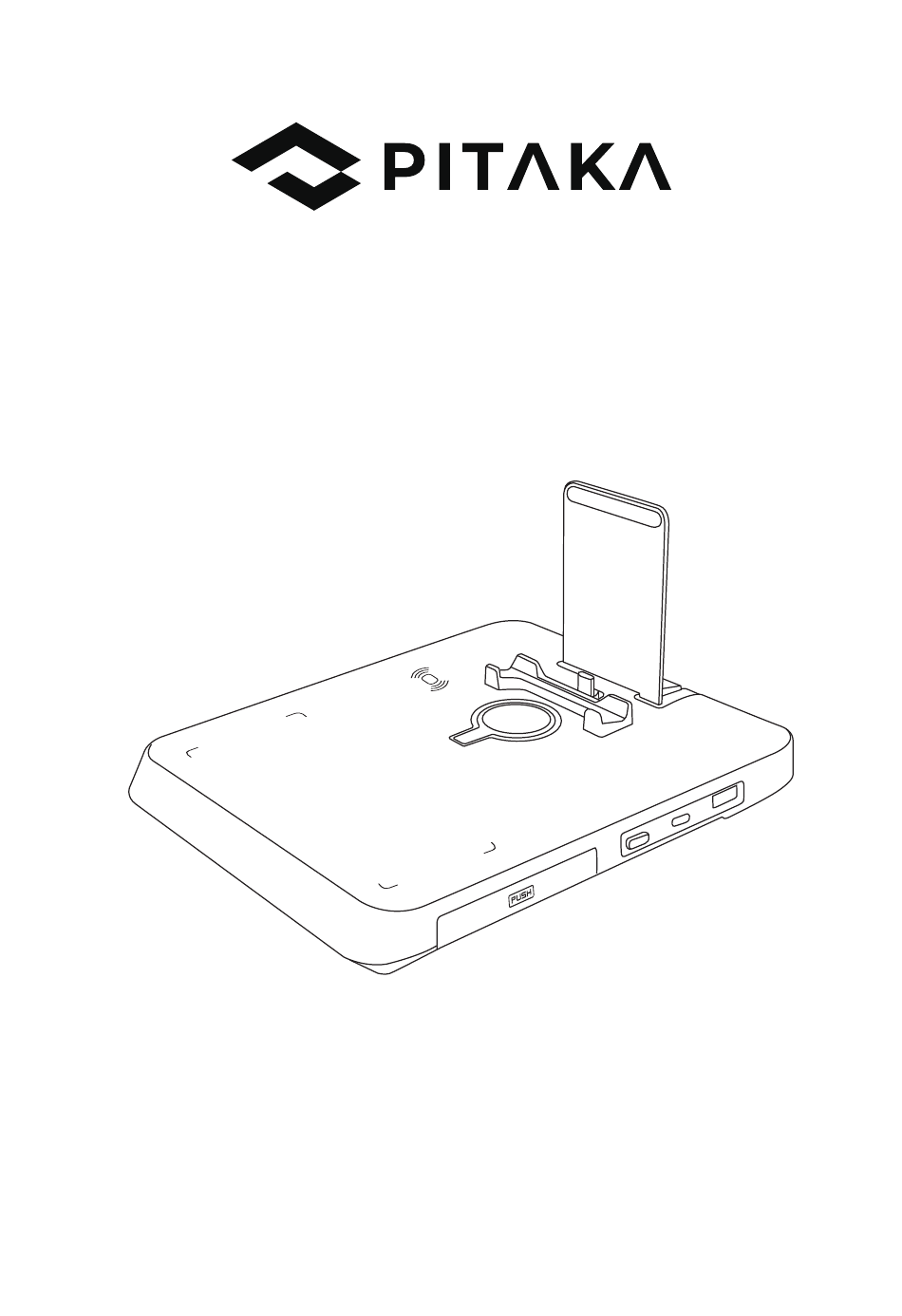

  • Page 1 Air Omni Lite User Manual...

  • Page 2: Table Of Contents

    LED Light Indicator Quick Guide Warranty Exclusions Important Customer Service Legal FCC WARNING Welcome & Intro Thank you for purchasing the PITAKA Air Omni Lite. Air Omni Lite is a 6-in-1 multi-device charging station for both Apple and Android devices.

  • Page 3: Package Contents

    Package Contents 1. Air Omni Lite *1 2. Magnetic Stand *1 3. Adapter *1 4. Document Kit *1 ① ② ③ ④...

  • Page 4: Features

    Features Charge 6 devices at the same time. Includes space to install an Apple Watch charging module. 10W wireless charging pad for Qi-enabled smartphones. 18W convertible Lightning & Type-C connector. 5W wireless charging pad for Qi-enabled earbuds. 18W Type-C and Type-A charging ports. Storage drawer for small accessories and jewelry.

  • Page 5: Compatibility

    Compatibility Wireless Charging Pad All Qi-enable Devices Apple AirPods with wireless charging case and Samsung Galaxy Buds Earbuds Charging Pad Apple AirPods with wireless charging case Samsung Galaxy Buds Powerbeats Pro Charging Case Apple Watch Charging Mount Series SE/6/5/4/3/2&1 (Ceramic, Titanium, Steel, Aluminum, Sport, and Nike versions) Compatible with original Apple watch charger (USB A) Lightning &...

  • Page 6: Specs

    Specs Items Specifications Input 15V / 4.3A Apple Watch Wireless Output EarPods Wireless Output Wireless Output for Phone 5W / 7.5W / 10W Wireless Charging Distance ≤8mm Wireless Charging Efficiency ≤75% Operating Temperature -10℃~30℃ Storage Temperature -20℃~60℃ Wireless Charging Frequency 110KHZ-205KHZ Convertible Lightning Connector 5V/3A，9V/2A，12V/1.5A...

  • Page 7: Led Light Indicator

    LED Light Indicators (Qi-enabled Smartphone Wireless Charging) LED Indicator Charging Base State Red and white lights flash alternatively for two seconds. Then the red light Power On turns off, and white stays on. Charging White light flashes every second. Overheating Red light flashes every half second.

  • Page 8: Quick Guide

    Quick Guide ① ②...
  • Page 9 ③ Using the tool provided, remove the placeholder module. ④...
  • Page 10 ⑤ ⑥...
  • Page 11 ⑦ Thread the cable through to the back. ⑧ Leave the module in the upright postion.
  • Page 12 ⑨ Hold the cable at the guideline, and push the length of cable back to the entrance (approx. 2in). ⑩ Tightly wind the cable around the clips in a clockwise motion.
  • Page 13 ⑪ ⑫ Scan QR code for video instruction.
  • Page 14 ⑬...
  • Page 15 ⑭ Click the button to switch the Type-C & Lightning connectors. Note: Connectors can only switch when the support stand is folded down. ⑮...
  • Page 16 ⑯ ⑰...
  • Page 17 ⑱ Take care when docking and removing your device from the connector. INSERT REMOVE...
  • Page 19 ⑲...
  • Page 20 ⑳ ㉑...
  • Page 21 ㉒ ㉓...
  • Page 22 ㉔ Side drawer measurements: L: 2.5in (65mm)x W: 2.36in (60mm) x H: 0.3in (7mm) ㉕...
  • Page 23 Scan QR code for video instruction.

  • Page 29: Warranty

    The PITAKA Air Omni Lite is guaranteed for 12 months from the date of purchase. The Air Omni Lite is warranted to be free of material and functional defects, including wireless charging, under normal use.

  • Page 30: Exclusions

    If you are using a third-party adapter, please check and confirm whether the voltage is within the applicable range. 2. Do not keep the Air Omni Lite in a high-tempera- ture environment, including direct sunlight. 3. Do not disassemble the Air Omni Lite or attempt to modify it in any way.
  • Page 31 6. If this Air Omni Lite is intended by the purchaser to be used by a minor, the purchasing adult agrees to provide detailed instructions and warnings to any minor before use.

  • Page 32: Customer Service

    US and other countries. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium. All associated logos and distinctive designs are the property of PITAKA and should be protected under design, trademark and other trade dress regulations.
  • Page 33 The manufacturer is not responsible for any damages to any device incurred through the use of this product. The manufacturer shall not, in any way, be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for...

  • Page 34: Fcc Warning

    FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 35 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
