  • Page 1 S -1621U DJ MIXER WITH USB/SD/MP3 PLAYER INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions Front Panel

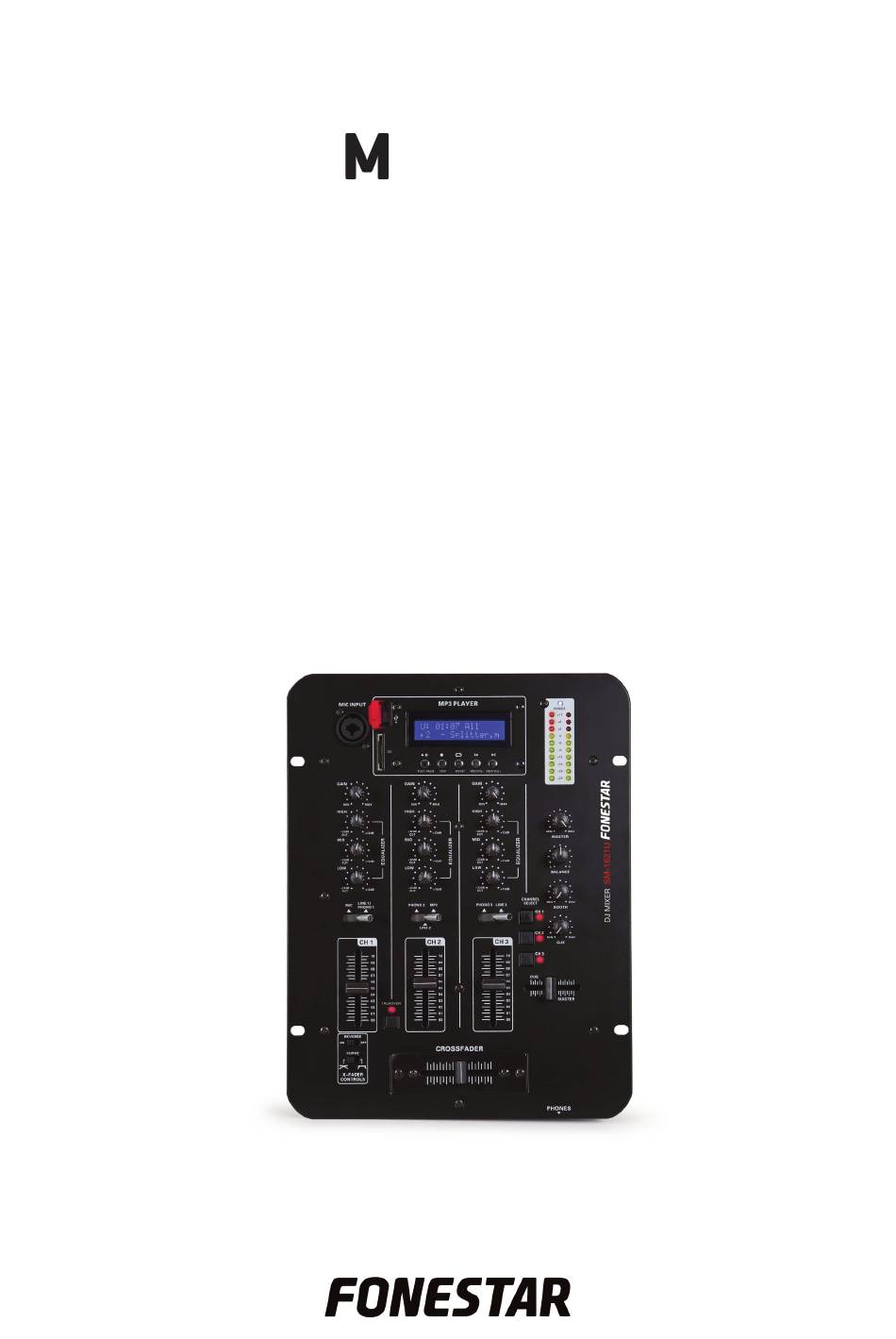

    DESCRIPTION The SM-1621U model is a professional stereo mixer with 6 inputs, 3 channels and 2 outputs with independent volume controls for DJ use. It has an MP3 player with LCD display that shows ID3 information in MP3 files, with USB port for USB drive connection and SD card reader.
  • Page 5 5.- Sliding volume control for the level of the corresponding channel. 6.- TALKOVER: button for activating/deactivating the talk over function in channel 1. This function weakens the signal in the rest of the channels in the general mix. When activated the LED indicator lights up. 7.- REVERSE: allows the crossfader variation curve to be inverted.

  • Page 6: Rear Panel

    REAR PANEL 1.- POWER: device on/off switch. 2.- AC socket: for connection of the AC power supply cable. 3.- MASTER L/R: balanced output of the corresponding MASTER line level to the final mix, 2 x XLR connectors. 4.- MASTER: unbalanced output of the corresponding MASTER line level to the final mix, 2 x RCA connectors.
  • Page 7 Connect the equipment to the power supply. Switch the equipment on in this order: players, SM-1621U mixer and lastly the amplifier. Adjust the input level of each channel with the GAIN control and mix using the volume controls for each channel.

  • Page 8: Block Diagram

    BLOCK DIAGRAM - 8 -...
  • Page 9 TECHNICAL SPECIFICATIONS SM-1621U CHARACTERISTICS Professional mixer with 6 inputs, 3 channels and 2 outputs with independent volume controls. USB/SD/MP3 player. PLAYER MP3 file player USB port for USB drive connection SD card reader Accepts drives of up to 32 GB...

  • Page 10: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
  • Page 11 - 11 -...
  • Page 12 www.fonestar.com...
