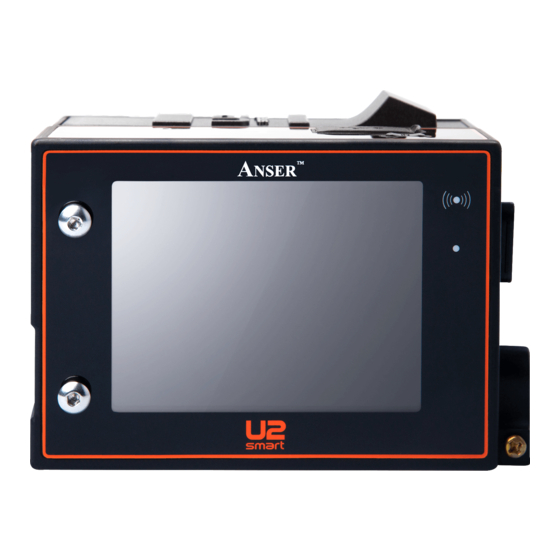

- Page 1 All manuals and user guides at all-guides.com 10 STEPS TO INSTALL YOUR ANSER U2 PRINTER 1-800-280-3245 customercare@inkjetinc.com www.inkjetinc.com...
- Page 2 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Drill four (4) holes for the M8 bolts. (A template is included if needed.) www.InkJetInc.com...
- Page 3 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Attach the bracket holder to the conveyor using the previously drilled holes. www.InkJetInc.com...
- Page 4 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Place stainless bar (A) into the receptacle of the bracket holder and tighten firmly. www.InkJetInc.com...
- Page 5 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Slide the bracket M8xL25 screw adjuster onto stainless bar (A) and tighten into place. www.InkJetInc.com...
- Page 6 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Place stainless bar (C) into the bracket adjuster M8xL25 screw and tighten. www.InkJetInc.com...
- Page 7 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Put the Printhead adjuster onto stainless bar (C). Use the handle to tighten. www.InkJetInc.com...
- Page 8 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Place stainless bar (B) into the Printhead adjuster. Tighten into place. www.InkJetInc.com...
- Page 9 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Turn screws counter clockwise Attach the deflection M3xL5 screw and washer (Anti-Shock) plate to the U2 controller. (The plate should be mounted to the side closest to the oncoming substrate.)
- Page 10 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE M4 washer Attach the Anti-shock Mechanism to the U2 controller. M4xL16 screw www.InkJetInc.com...
- Page 11 All manuals and user guides at all-guides.com ANSER U2 INSTALLATION GUIDE Place the U2 controller onto stainless bar (B) M8xL25 screws and tighten firmly. U2 ahead of guide-bar about 2mm www.InkJetInc.com...
- Page 12 All manuals and user guides at all-guides.com Thank you! 1-800-280-3245 www.inkjetinc.com customercare@inkjetic.com THE AUTHORIZED ANSER DISTRIBUTOR IN THE U.S.
