Hyundai power products HMTB55 Instructions Manual

Petrol tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PETROL TILLER
HMTB55
CAUTION: Read the instructions carefully. Be familiar with the controls
and the proper use of the equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMTB55 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HMTB55

Summary of Contents for Hyundai power products HMTB55

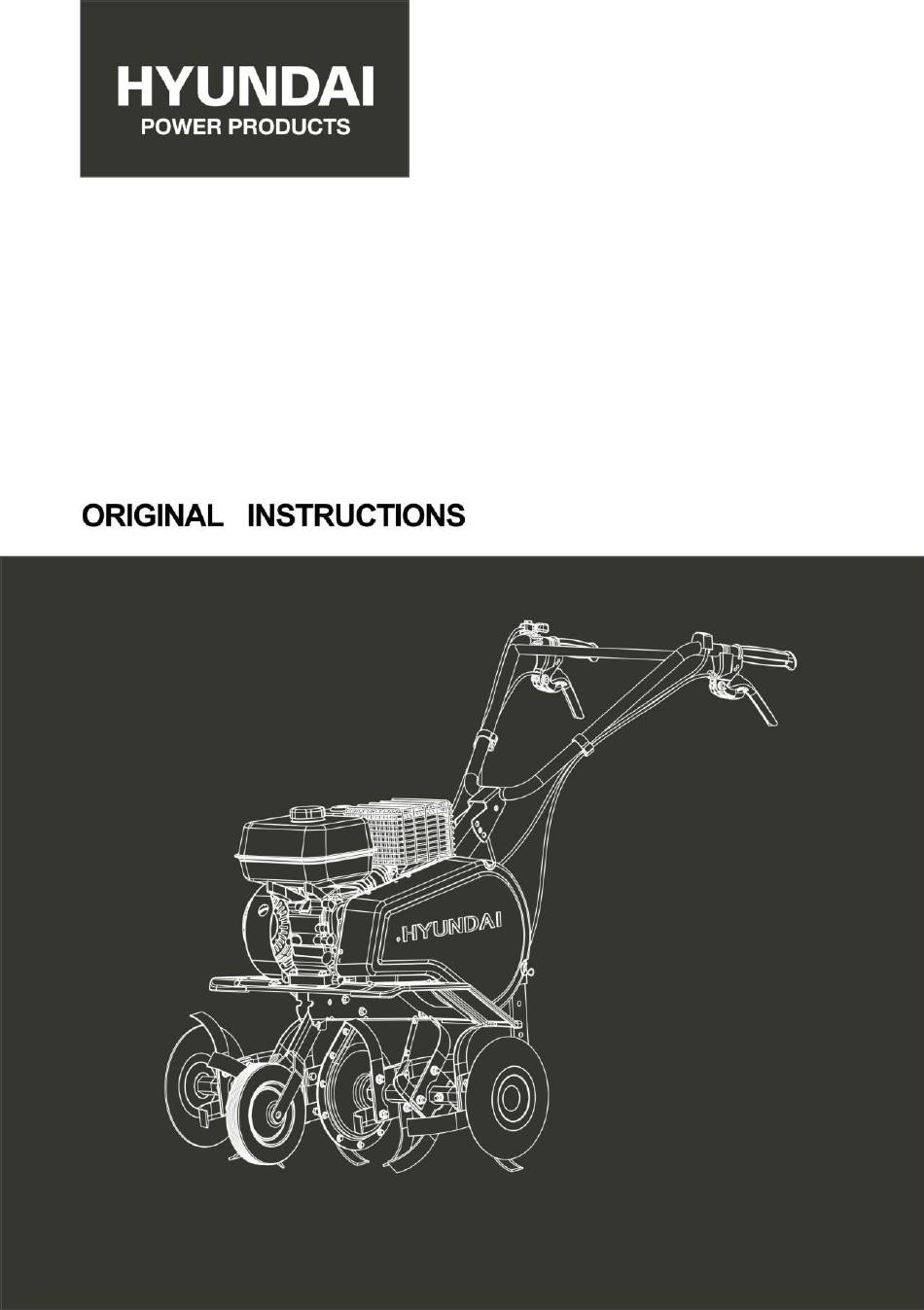

  • Page 1 PETROL TILLER HMTB55 CAUTION: Read the instructions carefully. Be familiar with the controls and the proper use of the equipment...

  • Page 2: Safety Warning

    1. SAFETY WARNING: For your safety and safety of others please pay special attention to these precautions: 1) Training a) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment; b) Never allow children or people unfamiliar with these instructions to use the machine.
  • Page 3 b) Work only in daylight or in good artificial light; c) Always be sure of your footing on slopes; d) Walk, never run with the machine; e) For wheeled rotary machines, work across the slopes, never up and down; f) Exercise extreme caution when changing direction on slopes; g) Do not work on excessively steep slopes;...
  • Page 4 etc. Pieces thrown from worn or damaged-tines can cause serious injury. Always inspect the tines before using the tiller. Fire and Burn Hazard Gasoline is extremely flammable and gasoline vapor can explode. Use extreme care when handing gasoline. Keep gasoline out of reach of children.

  • Page 5: Warning Symbol

    2. WARNING SYMBOL Attention! Caution: fire risk! The part is extremely hot! Do not touch! Read the instruction manual before use Caution: Do not put your hands in belt when it running. Caution: rotating working tool! Keep away from the machine. Warning: Exhaust emissions are harmful to health of body.
  • Page 6 That the machine shall always be used in accordance with these  manufacturer's instructions the instruction handbook The engine shall be stopped when carrying out maintenance and  cleaning operations, when changing tools and when being transported by means other than under its own power; Some hazards can be met when working on slopes;...
  • Page 7 ORIGINAL INSTRUCTIONS 3. STRUCTURAL REPRESENTATION 1. Engine Switch 9. Gearbox Assy 2. Clutch Handle 10.Fender 3. Handle Bar 11.Engine 4. Reverse handle 12.Silencer 5. Throttle lever 13.Air filter 6. Belt Cove 14.Recoil start 7. Walking Wheel 8. Blade...
  • Page 8 ORIGINAL INSTRUCTIONS ASSEMBLY The machine is packed in a box of the following dimensions : LENGTH: 69CM WIDTH: 38CM HEIGHT: 77CM The engine fitted on this cultivator have following features: Exhaust guard Recoil starter Dry air filter ENGINE LUBRICATION WITH: see instruction manual of the engine. Quantity of engine oil: see instruction manual of the engine.
  • Page 9 (Pitc.2) All the identification references (code number, engine, weight, power) are printed on the number plate on the machine (Pitc.3). (Pitc.3) Take the machine out of the carton box. Fit the two tillers to the main shaft using the delivered screws and nuts. Fit the rear spur in its place using the delivered bolt and both pins which are on the spur holder.
  • Page 10 (Pitc.4) Fit the two guard-extensions to the main tiller protections fitted on the body of the machine using the proper screws and nuts. The fender should reach a width of 60 cm according to CE norms. To make the transport easier it is possible to keep the handlebar disassembled, by means of the two screws in one version or by means of the thread bushing in the other one, that fix it to the handlebar holder.
  • Page 11 Pict.5 Pict.6 Pict.7 Pict.8 Pict.9 Pict.10...

  • Page 12: Use And Adjustment

    USE AND ADJUSTMENT 6.1 Release clutch handle bar (pict8), Tiller stop. 6.2 When machine need reverse, Grasp reverse handle bar(pict9). 6.3 Model NO. HMBT55,Distance between belt is 52±5 mm. Please note only take off screw from front supportor , and belt cover, then you can check the belt distance,(see photo below).
  • Page 13 Adding other two sets of blades you can extend the tiller to 80 cm (Pict.15). The blades of the tiller-knives should always be directed ahead, towards the front of the machine Pitc.15 Technical Parameter HMTB55 Model H170F Engine type 4.0kW...
  • Page 14 170min Working speed -1, 0, +1 (One forward gears, one neutral gear and Gear Shifts: one reverse gear) Blade Type 2-4(4 sets 16Pcs) Tyre Model 8×1.75 Carton dimensions 690mm×380mm× 770mm Net weight 54kg Gross weight 56kg Left: 78,5 dB(A) Sound pressure level Right:79dB(A) measured Sound power level...

  • Page 15: Maintenance

    8. MAINTENANCE Please note that maintenance operations are scheduled for normal operating conditions. If the operation of tiller takes place under other conditions, we recommend that you communicate with your dealer to deal with the machine. 1. Turn off the engine and disconnect the spark plug prior to maintenance operations.
  • Page 16 ADJUSTMENT by checking the distance between both sides of the belt, then replace the cover. The pin fixing the big pulley has also a safety purpose: in case heavy obstacle it will break avoiding damages to other parts of the machine. The replacement of the pin is very easy: you have to insert the new pin in the hole using a hammer.
  • Page 17 9. BREAKDOWN LIST A. Gasoline engine (1) Hard to start machine or fail to start Breakdown Cause Solution phenomenon carbon deposition of clear away carbon spark plug excessive adjust clearance to spark plug small clearance 0.7～0.8mm no spark spark plug at plug Insulation damage of replace spark plug...
  • Page 18 (2) Abnormal conditions in the movement Breakdown Cause Solution phenomenon damper closed, poor open damper, ventilation of muffler replace muffler moving parts abrasion check, replace speed adjustment adjust speed mechanism failed adjustment Insufficient power， reach best mechanism equilibrium Low rotation replace ignitor low ignition power...
  • Page 19 B. Tiller Abnormalities Common Causes Measures to be taken Strange noises Stuck blade Turn off the tiller until engine completely stopped. Leakage of lubricating Fix it in the repair shop Loose bolts, nuts and Tighten other components components, strange noises remain, please contact repair shop...
  • Page 20 BUILDER ZI, 32 rue aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL TILLER HMTB55 Serial number : 20211165450-20211165755 Complies with the provisions of the Directive "machinery" 2006/42 / EC and the national regulations transposing it;...

  • Page 21: Warranty

    11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 22: Product Failure

    12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 23: Warranty Exclusions

    13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
