Summary of Contents for Hyundai power products HMTB50

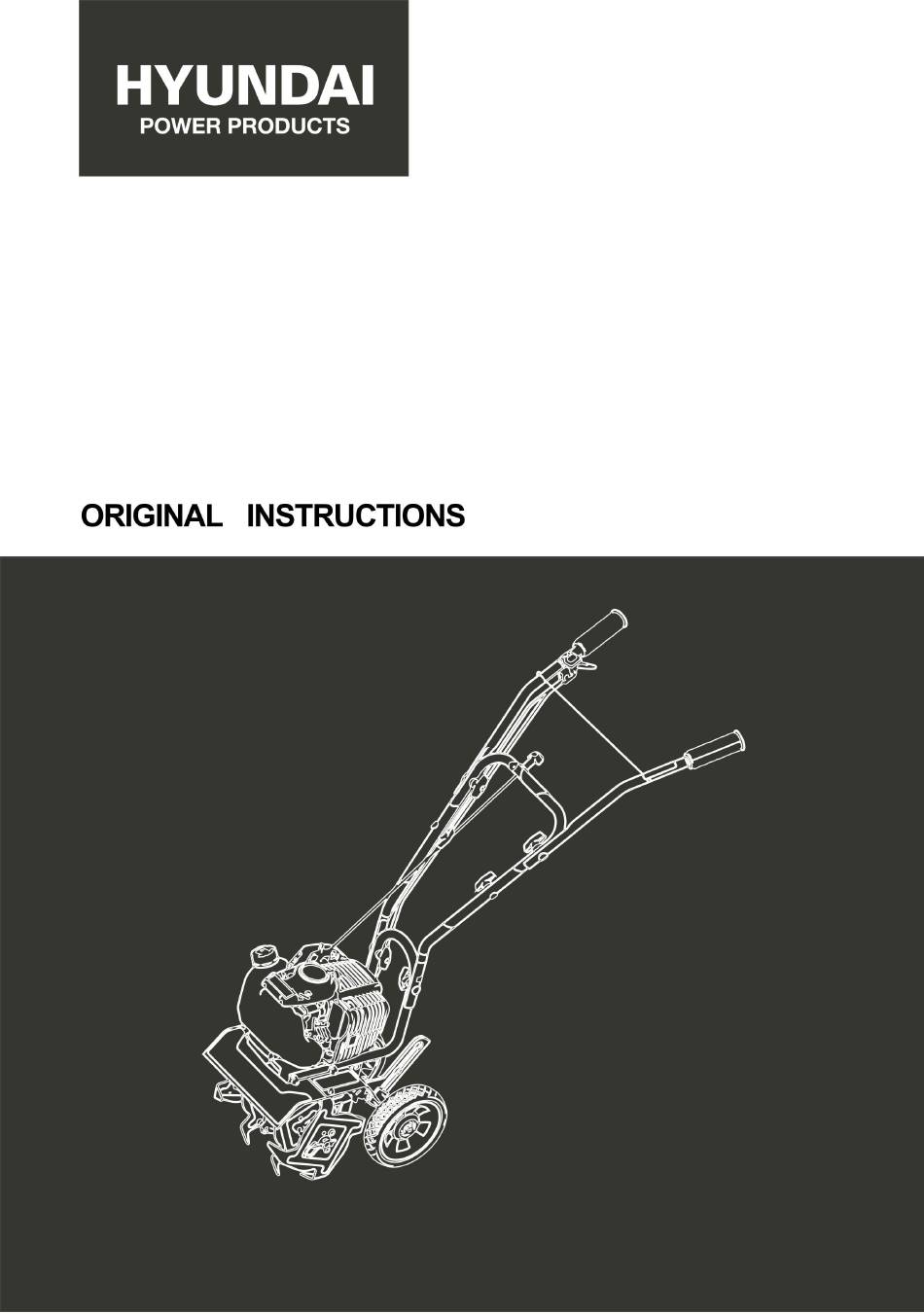

- Page 1 PETROL TILLER HMTB50 WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS 1. SAFETY WARNINGS 2. PART VIEW 3. ASSEMBLY 4. ADDING FUEL 5. OPERATION 6. MAINTENANCE AND STORAGE 7. TECHNICAL SPECIFICATIONS 8. DECLARATION OF CONFORMITY 9. WARRANTY 10. PRODUCT FAILURE 11. WARRANTY EXCLUSIONS... -
Page 3: Safety Warnings
ORIGINAL INSTRUCTIONS 1. SAFETY WARNINGS The machine shall always be used in accordance with these manufacturer's instructions the instruction handbook The engine shall stopped when carrying maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power;... - Page 4 ORIGINAL INSTRUCTIONS c) Never work while people, especially children, or pets are nearby; d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. 2) Preparation a) While working, always wear substantial footwear and long trousers.
- Page 5 ORIGINAL INSTRUCTIONS c) Always be sure of your footing on slopes; d) Walk, never run with the machine; e) For wheeled rotary machines, work across the slopes, never up and down; f) Exercise extreme caution when changing direction on slopes; g) Do not work on excessively steep slopes;...
- Page 6 ORIGINAL INSTRUCTIONS Thrown Object Hazard Objects hit by the rotating tines can be thrown from the tiller with great force and may cause severe injury. 1. Before tilling, clear the tilling area of sticks, large stones, wire, glass etc. 2. Pieces thrown from worn or damaged-tines can cause serious injury.
- Page 7 ORIGINAL INSTRUCTIONS 3. Be very careful when changing the direction of the tiller on a slope. 4. Do not use the tiller on a slope of more than 10°. 5. The maximum safe grade angle shown is for reference only and the details should depend on the type of the tool.
- Page 8 ORIGINAL INSTRUCTIONS Risk of projections Wear protective gloves Wear safety shoes Guarantee noise level Hot surface No naked flames Be sure the machine is in stability when leaving Do not use cutting blades...
-
Page 9: Part View
ORIGINAL INSTRUCTIONS Intended use This device is to be used only as an electric hoe for aerating lawns and grassy areas in private home gardens and pleasure gardens. It is not intended for use in public spaces, parks, sports fields, agriculture or forestry. Use of this device for any other purpose is considered incorrect and unapproved. -
Page 10: Assembly
ORIGINAL INSTRUCTIONS 3. ASSEMBLY a. Adjust depth skid assembly Remove the pin; change the position of the depth skid. Then add the pin to fix the depth skid b. Mounting Bracket Place the lower bar on the tool. Fix the bar with screws and wing nuts. - Page 11 ORIGINAL INSTRUCTIONS c. Depth Adjustment There are three grooves in the connector plate. Place the wheels in the highest groove when working. Position the wheels in the middle or bottom groove when not using (depending on operator’s height)
-
Page 12: Adding Fuel
ORIGINAL INSTRUCTIONS 4. ADDING FUEL Use 2-stroke oil, regular unleaded petrol. Do not use pure petrol or the fuel/oil mixture rate above 25:1. WARNING! Adding fuel must be carried our carefully away from heat sources and naked flames. Do not smoke when adding fuel. -
Page 13: Operation
ORIGINAL INSTRUCTIONS 5. OPERATION WARNING I To prevent serious injury, never pick-up or carry the tiller while the engine is running. Always switch off before each use and before moving to another area. a) Cold starting Set the STOP/START (O/I) switch on the right handlebar to the START position. -
Page 14: Maintenance And Storage
ORIGINAL INSTRUCTIONS 6. MAINTENANCE AND STORAGE TRANSPORTING THE MACHINE 1. Never transport the tiller inside an enclosed space or vehicle. Fuel or fuel vapour may ignite causing serious injury. 2. If fuel is present in the fuel tank, transport on en open vehicle in an upright position. - Page 15 ORIGINAL INSTRUCTIONS Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up. MAINTENANCE REQUIRED FREQUENCY Every 10 hours Clear and re-oil air filter Check spark plug condition and Every 25 hours BODY MAINTENANCE: 1.
- Page 16 ORIGINAL INSTRUCTIONS 3. lf the tines gets damaged, then replace or repair immediately. WARNING: To prevent serious injury, never perform maintenance or repairs to a hot engine. CLEANING THE AIR FILTER Clean and re-oil the air filter every ten hours of operation. It is vitally important item to maintain.
- Page 17 ORIGINAL INSTRUCTIONS Release the throttle lever and allow the engine to idle. If the engine cuts out (will not idle), turn the adjuster clockwise l/8th of a turn at a time until the engine idles smoothly. NOTE: Tines must not be rotating on idle. If they do, turn the adjustment screw anti-clockwise a tiny amount.
-
Page 18: Technical Specifications
Re-install the spark plug. NOTE: When re-starting after prolonged storage, be sure to drain all the oil out from the cylinder first! 7. SPECIFICATIONS Model: HMTB50 Engine: 2-stroke combustion engine Type: 2HP Displacement: 52 cm³ Rated output power: 1.45 kW... -
Page 19: Declaration Of Conformity
BUILDER SAS ZI, 32, rue Aristide Bergès – 31270 Cugnaux – France Declare that the machine designated below: PETROL TILLER HMTB50 Serial number: 20221220019-20221220318 Complies with the provisions of the "machine" directive 2006/42/EC and the national regulations transposing it; Also complies with the provisions of the following European... -
Page 20: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 21: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
