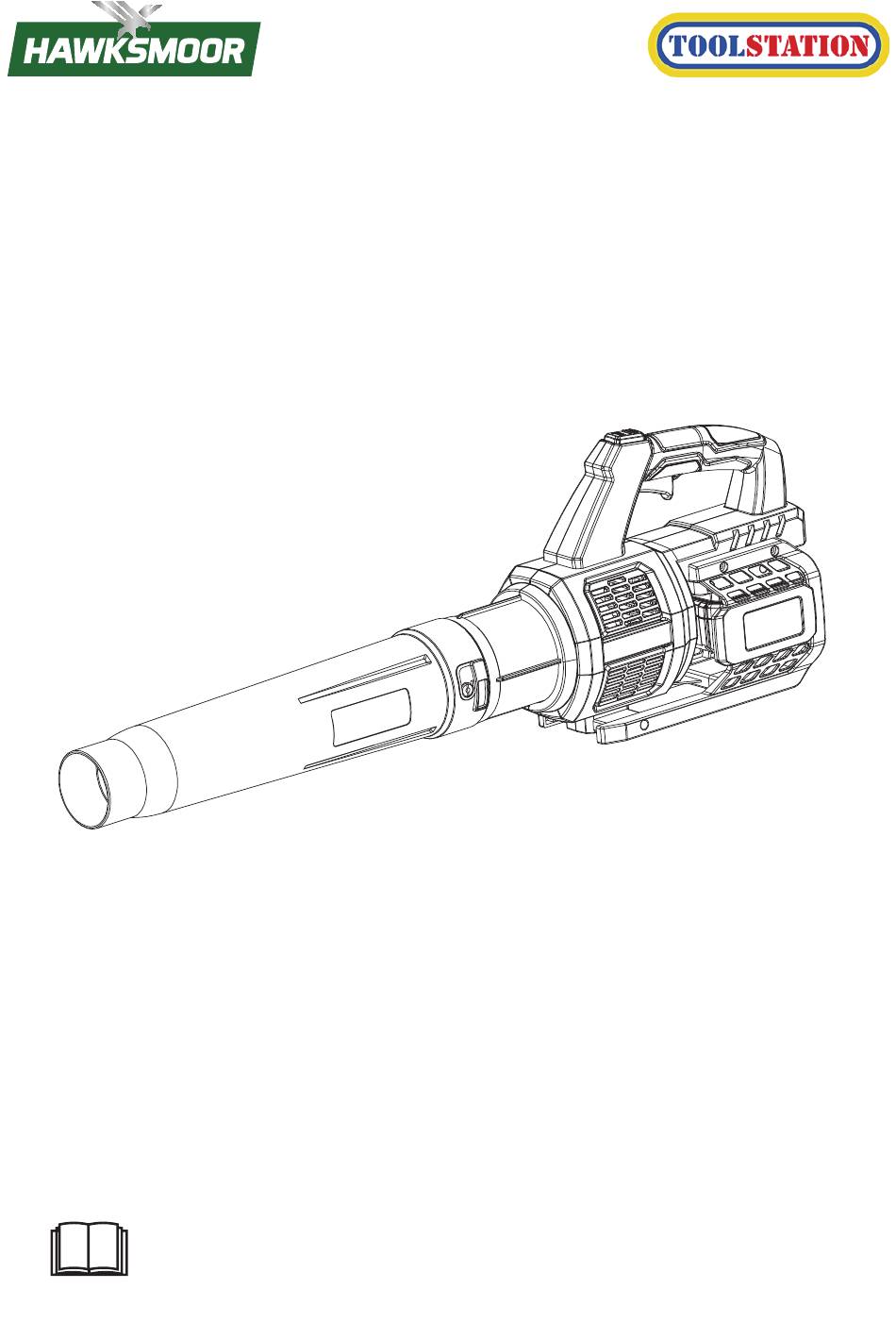

- Page 1 Original User’s Instructions 18V Cordless Blower SKU: 19716 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 7 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 18 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------19 ∫... -
Page 3: What's In The Box
WHAT'S IN THE BOX Blower tube Blower body Battery pack Charger If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk... -
Page 4: Specifications
SPECIFICATION Technical Data Model GY218011 Nominal voltage of product with battery 18V d.c. Air speed: 36-108 km/h Under Turbo: 151 km/h Air volume: 1.9 - 5.6 m³/min Under Turbo: 7.8 m³/min No load speed: 5000-15500/min Turbo speed: 20500/min Net weight approx. -
Page 5: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Attention! Read the operating instructions carefully. Risk of injury from parts being thrown away! Keep bystanders away from the danger area Risk of injury from rotating impeller. Keep hands away Do not expose the device to moisture. Wear protective earmuffs Wear protective glasses Do not throw into water. - Page 6 Do not subject the battery to strong sunlight over long periods of time. Do not leave on a heater (max.45°C). Batteries contain Li-ion. Do not dispose of waste batteries in domestic waste. Contact local authority to find out how to dispose of batteries. The charger is for indoor use only.
-
Page 7: Important Safety Warnings
IMPORTANT SAFETY WARNINGS General Power Tool Safety Warnings WARNING: Warning: Please read the following instructions carefully, failure to do so could lead to serious personal injury. When using the electric blower, basic safety precautions, including the following, should always be followed to reduce the risk of fire,electric shock and personal injury. - Page 8 Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. •...
- Page 9 • Power tools can produce electromagnetic fields (EMF) that are not harmful to the user. However, users of pacemakers and other similar medical devices should contact the maker of their device and/ or doctor for advice before operating this power tool.
- Page 10 • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power Tool Use and Care • Do not force the power tool.
- Page 11 • Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 12 Preparation • Always wear substantial footwear and long trousers while operating the machine. • Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. • Always wear protective goggles to protect your eyes from injury when using power tools.
- Page 13 • Do not overreach and keep proper balance and footing at all times. • Always be sure of your footing on slopes. • Walk, never run. • Keep all cooling air inlets clear of debris. • Never blow debris in the direction of bystanders. •...
- Page 14 • Prevent unintentional starting. Ensure the switch is in the off- position before inserting battery cartridge, picking up or carrying the machine. Carrying the machine with your finger on the switch or energizing the machine that has the switch on invites accidents.
- Page 15 • Do not carry individual battery packs in your pockets or bag as they could short-circuit against other metal items. • Do not expose battery pack to heat or fire. Avoid use or storage in direct sunlight for extended periods of time. •...
- Page 16 • Keep battery pack out of the reach of children. • Retain the original product literature for future reference. • Remove the battery from the equipment when not in use. • Dispose of properly. • Do not mix cells of different manufacture, capacity, size or type within a device.
- Page 17 • Keep the battery charger clean. Contamination can increase the risk of electric shock. • Protect the battery charger from rain and moisture. If water accesses the battery charger there is an increased risk of electric shock. • Battery will heat up whilst charging. When charging batteries, ensure that the battery charger is in a well-ventilated area and to reduce the risk of fire, do not operate battery charger on or close to inflammable materials such as paper or textiles.
-
Page 18: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS 1. Main handle 2. Switch trigger 3. Turbo switch 4. Air duct 5. Blower tube 6. Air vents 7. Bracket 8. Battery chamber Not all the accessories illustrated or described are included in standard delivery. www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk... -
Page 19: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS NOTE: To reduce the risk of injury, user must read instruction manual. Intended Use This product is intended for domestic blowing. WARNING: Before assembly and adjustment to the blower, ensure the blower is turned off and the battery pack is removed. Assembling the blower tube for blowing NOTE: Before assembling the tube, make sure that the battery is not inserted in the product. - Page 20 BEFORE OPERATION WARNING: The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections otherwise an electrical failure and hazard will occur.
- Page 21 Charging light indicator Red LED on; Green LED off Charger ready Red LED on; Green LED flashes Battery pack charging Red LED off; Green LED on Battery pack fully charged Red LED flashes; Green LED off Battery pack too cold or hot Red LED flashes faster;...
- Page 22 Operation ● Hold the handle(1) and pull the switch trigger(2) up to turn on the cordless blower. ● Release the switch trigger(2) to turn off the cordless blower ● The blower speed can be adjusted by pressing the turbo(3) switch. The speed is increased by increasing the pressure on the on/off trigger(2).
-
Page 23: Care And Cleaning
CARE AND CLEANING WARNING! To avoid serious injuries, always switch off and remove the battery before cleaning or maintenance. WARNING! Have repairs and maintenance work that are not described in these instructions carried out by our service center. Use only original parts. Cleaning •... -
Page 24: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Battery cartridge is not installed. Install the battery cartridge. Recharge the battery. If recharging is Battery problem (under voltage) Motor does not run. -
Page 25: Declaration Of Conformity / Performance
DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 19716 (GY218011) Product Description: Hawksmoor 18V Cordless Blower 1 x 4.0Ah 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. -
Page 26: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 27: Guarantee
GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
